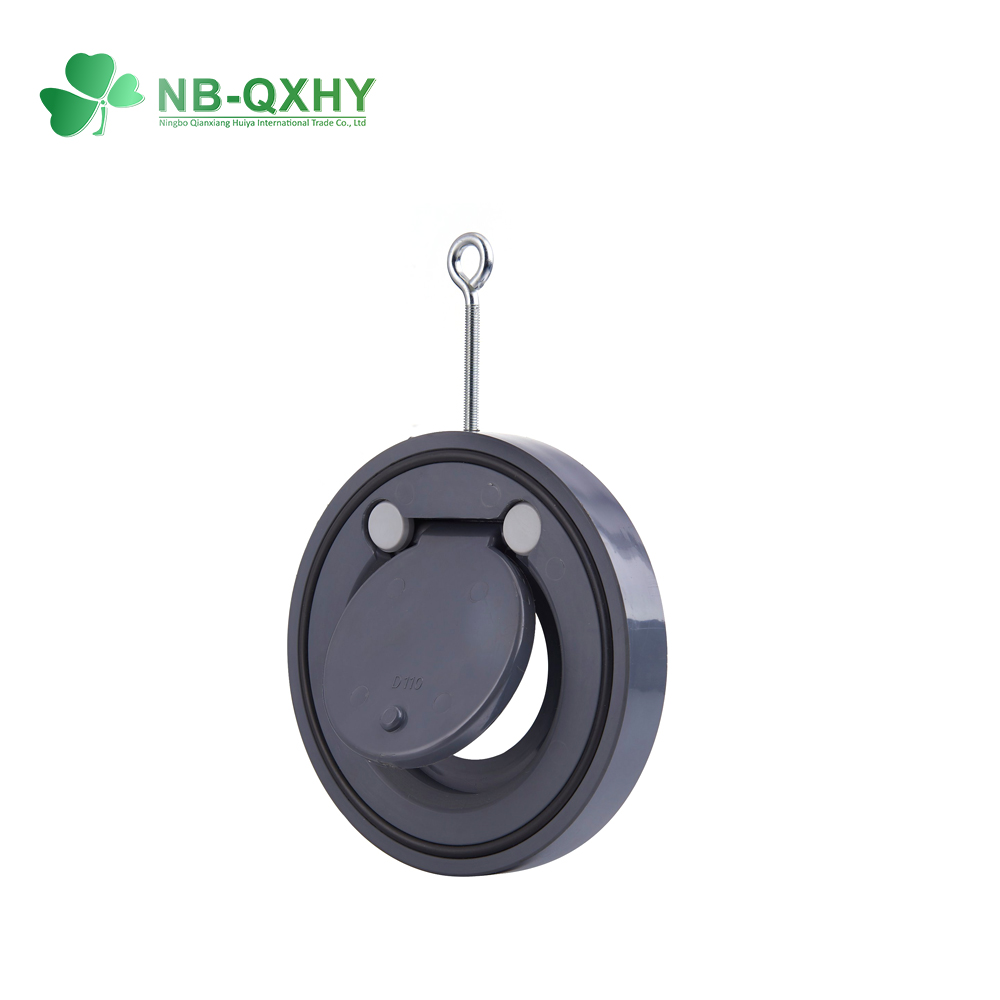

The wafer check valve relies on the pressure generated by the fluid in the pipeline to open or close. It is an automatic valve, which can be used to avoid backflow of the medium.
The wafer check valve does not have handles and other parts to control the device, so it is an automatic valve. When the fluid flows in one direction, pressure will be generated under the impact of the fluid, which will open the valve flap. When the fluid flows in the opposite direction, the valve flap will avoid closing, thereby cutting off the fluid.
Product Name | PVC Wafer Check Valves | Color | As Customer Require | |
Main Material | Plastic, PVC, UPVC | Main Market | Southeast Asia, The Middle East, North Africa, South America | |
Size | 1/2''-8'' | Packing | Carton, Polybag, Color Box or Customized | |
Working Pressure | PN6 / PN10/PN16 | Application | Agricultural Irrigation | |
End Connection | Socket/Thread/Flange | Port | Ningbo/Shanghai | |
Customized Support | OEM, ODM | Lead Time | 25-35 Days | |
Standard | DIN/ ANSI /BS/ JIS /CNS | Sample | Free | |
Certificate | ISO SGS | Logo | Printed or Customized |
NO. | PART | MATERIAL | QTY |
1 | Body | UPVC | 1 |
2 | Disc | UPVC | 1 |
3 | Clip | UPVC | 2 |
4 | O-ring Disc | EPDM | 1 |
5 | O-ring Body | EPDM | 2 |
6 | Ring Bolt | Stainless Steel 304 | 1 |
SIZE | DIN(MM) | BS(MM) | JIS(MM) | ANSI(MM) | NPT THREADED | BSPT THREADED |
DN15 (1/2") | 20 | 21.5 | 22.11 | 21.6 | 14 | 14 |
DN20 (3/4") | 25 | 26.9 | 26.13 | 26.9 | 14 | 14 |
DN25 (1") | 32 | 33.7 | 32.16 | 33.8 | 11.5 | 11 |
DN32( 1 1/4") | 40 | 42.2 | 38.19 | 42.4 | 11.5 | 11 |
DN40(1 1/2") | 50 | 48.4 | 48.21 | 48.5 | 11.5 | 11 |
DN50 (2") | 63 | 60.5 | 60.25 | 60.7 | 11.5 | 11 |
DN65( 21/2") | 75 | 75.3 | 76.6 | 73.4 | 8 | 11 |
DN80 (3") | 90 | 89 | 89.6 | 89.4 | 8 | 11 |
DN100 (4") | 110 | 114.5 | 114.7 | 114.8 | 8 | 11 |
DN125(5”) | 194 | 187 | ||||
DN150 (6”) | 218.9 | 219 | ||||
DN200 (8”) | 282 | 265 |
Size | G/PCS | PCS/CTN | CBM | Packing Size(cm) | G.W | ||
(KG) | |||||||
1/2" | 118 | 98 | 0.03 | 39.5 | 39.5 | 21 | 12.56 |
3/4" | 183 | 72 | 0.04 | 40 | 40 | 24 | 14.18 |
1" | 285 | 72 | 0.06 | 46 | 46 | 26.8 | 21.52 |
1-1/4" | 422 | 50 | 0.06 | 46 | 46 | 30.5 | 22.1 |
1-1/2" | 616 | 32 | 0.06 | 41 | 41 | 33.5 | 20.71 |
2" | 966 | 32 | 0.09 | 49 | 49 | 36.54 | 31.91 |
2-1/2" | 1676 | 9 | 0.04 | 41.5 | 41.5 | 25.5 | 16.08 |
3" | 2706 | 9 | 0.07 | 51 | 51.5 | 28.5 | 25.35 |
4" | 5210 | 4 | 0.07 | 43 | 43 | 37.5 | 21.84 |
5” | 5200 | 5 | 0.071 | 43 | 43 | 37.5 | 27 |
6” | 6500 | 2 | 0.071 | 43 | 43 | 37.5 | 13 |
8” | 13000 | 2 | 0.071 | 43 | 43 | 37.5 | 26 |
