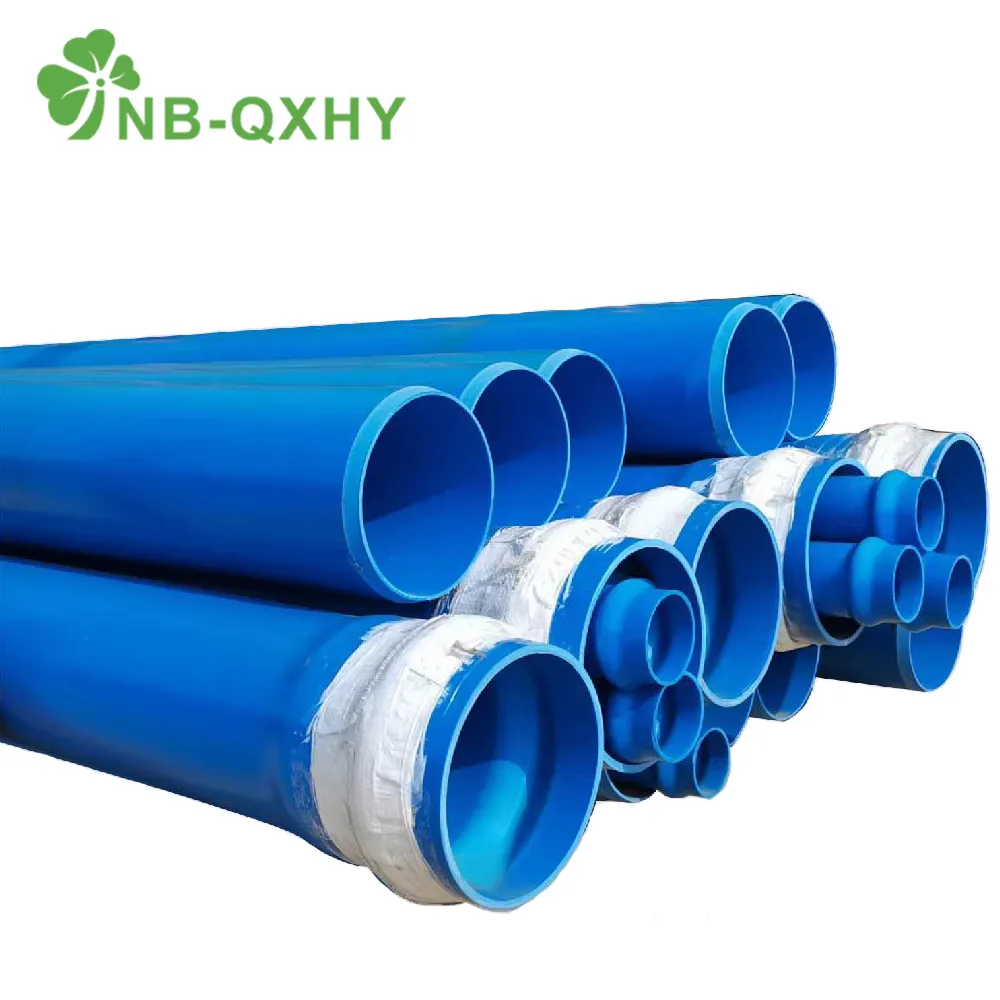

Plastic pipe

The main raw material of our plastic pipe is PVC. In the process of manufacturing, we add the right amount of stabilizer, lubricant, filler, colorant and so on. Through the process of cooling, curing, setting, testing, packaging, etc. , finally formed a smooth surface, stable quality PVC pipes. Our factory has a large amount of stock, and can be customized according to your requirements. Please feel free to contact us for more information.

DIN Standard Pipe

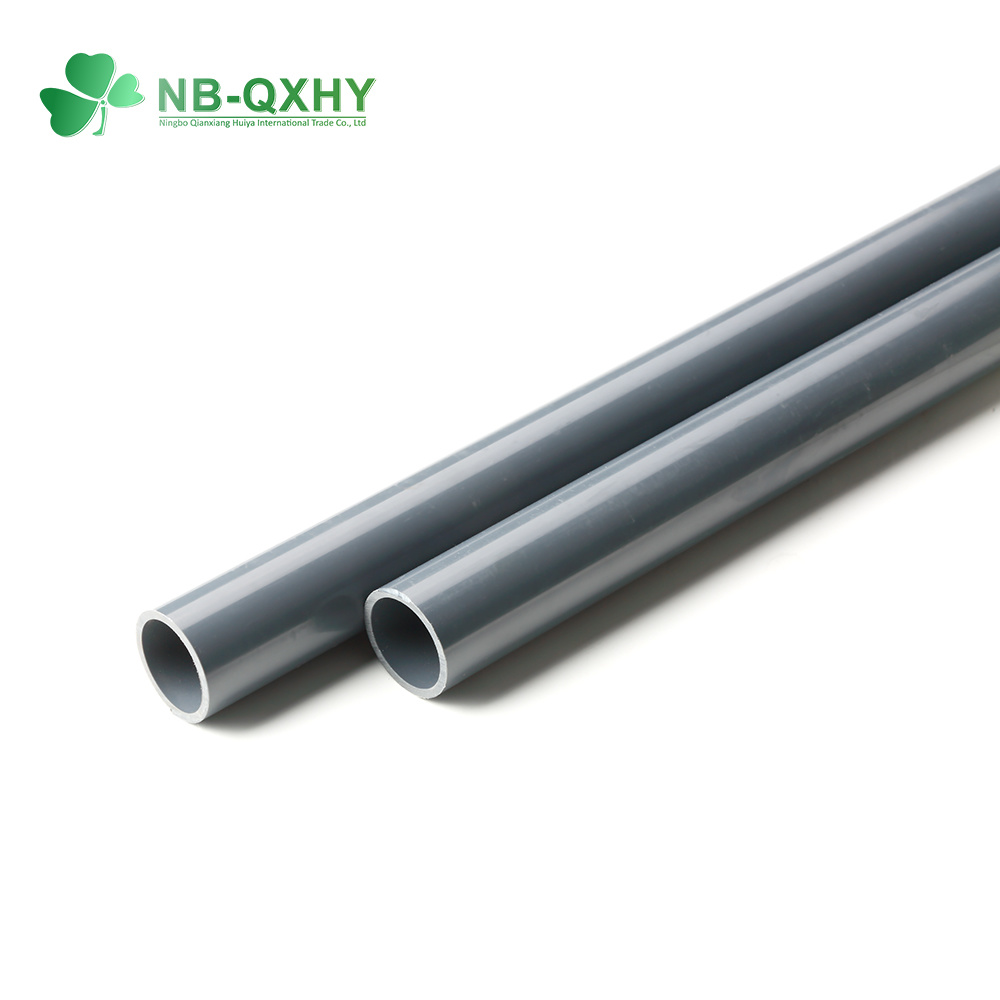

UPVC ASTM Pipe

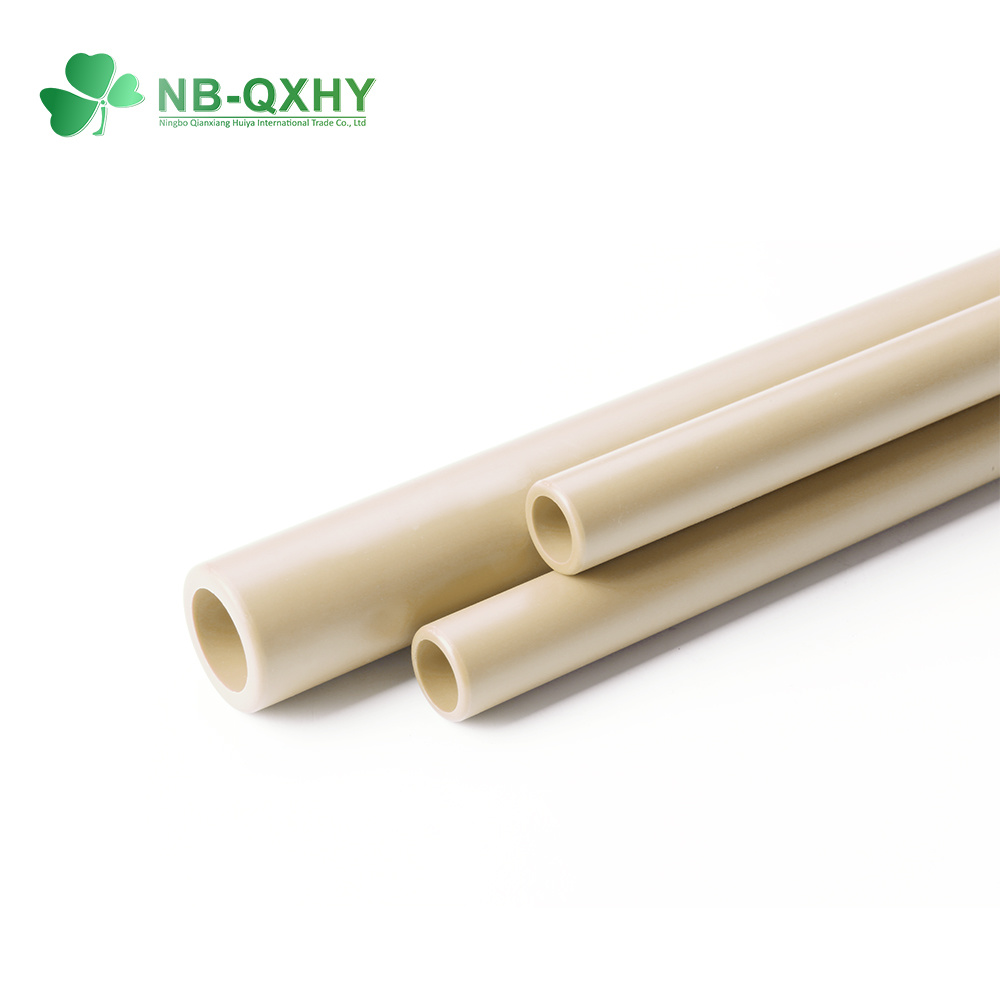

CPVC ASTM2846 Pipe

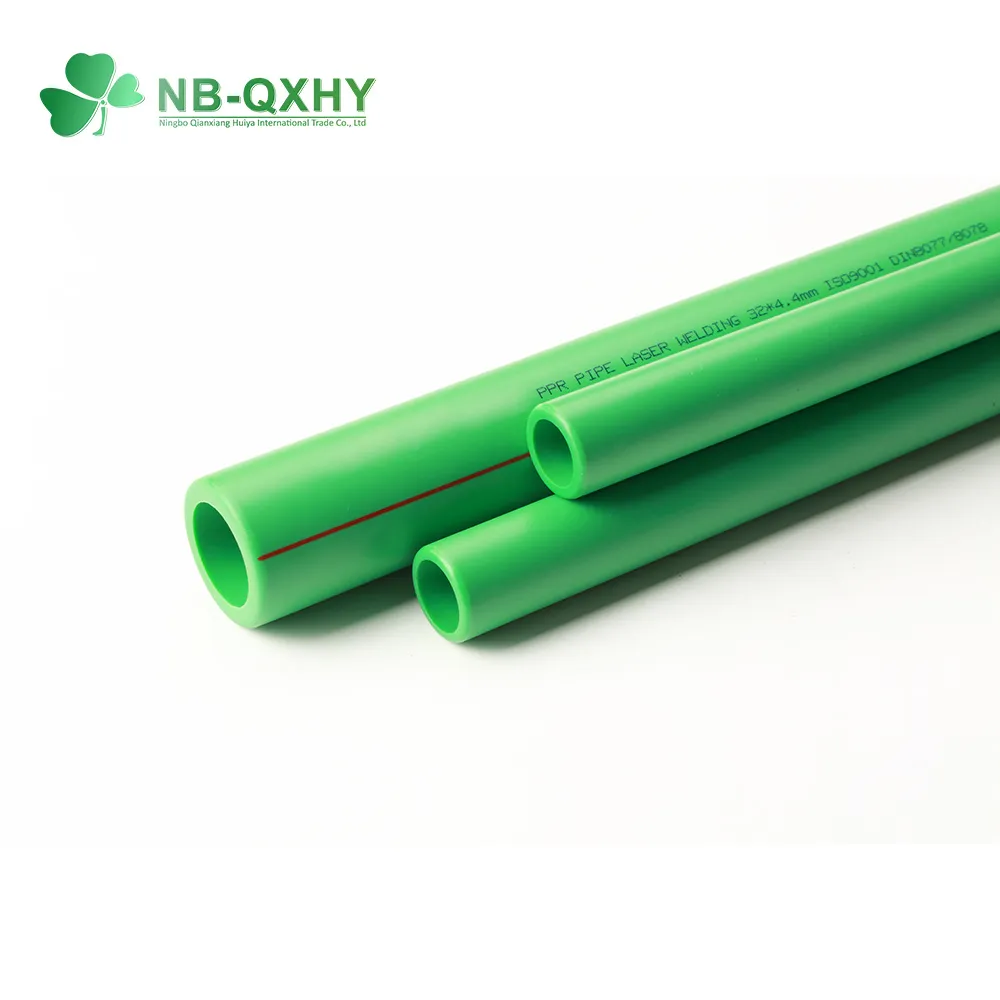

PPR Pipe

1. Product Information

Product Name PVC Pipe   Color Grey, White, Black, Green or Others
Main Material PVC, UPVC, CPVC, PPR Structure Hollow
Size Large, Medium, and Small Sizes are Available Packing Standard Export Packaging
Main Market Southeast Asia, The Middle East,
Africa, South America, North America
Application Water Supply and Drainage Project, Construction Project,
Agricultural Irrigation
Shape Round Origin Ningbo, Zhejiang, China
Customized Support OEM, ODM Port    Ningbo/Shanghai
Standard  ASTM, DIN, GB Lead Time  25-50 Days
Certificate CE, ISO9001, UL Sample Free

2. Product Parameters

PVC-U Pipe DIN Standard
Nominal Size (mm) Weight/M (kg)
  PN6.3 PN8 PN10 PN12.5 PN16 PN20 PN25
20         0.156 0.172 0.194
25       0.199 0.22 0.249 0.297
32     0.259 0.286 0.339 0.403 0.488
40     0.363 0.431 0.53 0.641 0.762
50   0.458 0.545 0.673 0.818 0.997 1.187
63 0.638 0.722 0.859 1.074 1.308 1.583 1.583
75 0.865 0.998 1.227 1.514 1.855 2.243 2.67
90 1.165 1.445 1.642 2.18 2.664 3.201 3.852
110 1.383 1.73 2.121 2.648 3.257 3.939 4.773
125 1.804 2.254 2.754 3.408 4.153
140 2.28 2.785 3.469 4.263 5.217 6.376 7.716
160 2.978 3.627 4.551 5.597 6.824 8.346 10.132
200 4.563 5.735 7.067 8.724 10.683 13.001 15.792
225 5.762 7.183 8.882 11.041 13.533
250 7.214 8.905 11.015 13.523 16.614 20.339
315 11.293 14.134 17.493 21.478 26.445 32.311
350 14.172 17.641 21.836 26.868 33.122 40.348
400 18.251 22.76 28.092 34.723 42.565 52.003
450 23.048 28.73 35.529 43.971 53.943
500 28.631 35.395 43.839 54.309 66.666
560 35.721 44.81 55.011 66.266
630 45.174 56.255 69.693 85.91





ASTM Pipe (socket type)
Size D(MM) Tolerance(±) SCH80 SCH40
T(min/mm) Tolerance(±) T(min/mm) Tolerance(±)
1/2" 21.34 0.10  3.73 0.51 2.77 0.51
3/4" 26.67 0.10  3.91 0.51 2.87 0.51
1" 33.40  0.13 4.55 0.53 3.38 0.51
1-1/4" 42.16 0.15 4.85 0.58 3.56 0.51
1-1/2" 48.26 0.15 5.08 0.61 3.68 0.51
2" 60.32 0.18 5.54 0.66 3.91 0.51
2-1/2" 73.02 0.20  7.01 0.84 5.16 0.61
3" 88.90  0.23 7.62 0.91 5.49 0.66
4" 114.30  0.25 8.56 1.02 6.02 0.71
5" 141.30  0.28 9.52 1.14 6.55 0.79
6" 168.28 0.38 10.97 1.32 7.11 0.86
8" 219.08 0.38 12.70  1.52 8.18 0.99
10" 273.05 0.38 15.06 1.8/0 9.27 1.12
12" 323.85 0.38 17.45 2.08 10.31 1.24



UPVC Pipe ASTM Series
Nominal Size (inch) Average Outer diameter
(mm)
Wall Thicknesses (Minimum)
SDR64 SDR41 SDR32.5 SDR26 SDR21 SDR17 SDR13.5
1/2" 21.34             1.57
3/4" 26.67         1.52 1.57 1.98
1" 33.4       1.52 1.6 1.96 2.46
1-1/4" 42.16     1.52 1.63 2.01 2.49 3.12
1-1/2" 48.26     1.52 1.85 2.29 2.84 3.58
2" 60.32     1.85 2.31 2.87 3.56 4.47
2-1/2" 73.02     2.24 2.79 3.48 4.29 5.41
3" 88.9   2.16 2.74 3.34 4.24 5.23 6.58
4" 114.3 1.78 2.79 3.51 4.39 5.44 6.73 8.46
5" 141.3 2.21 3.45 4.34 5.44 6.73 8.31 10.46
6" 168.28 2.64 4.11 5.18 6.48 8.03 9.91 12.47
8" 219.08 3.43 5.33 6.73 8.43 10.41 12.9
10" 273.05 4.27 6.65 8.41 10.49 12.98 16.05
12" 323.85 5.05 7.9 9.96 12.45 15.39 19.05
14" 355.6   8.66 10.92 13.67 16.92 20.9
16" 406.4   9.91 12.5 15.62 19.35 23.9



CPVC Pipe ASTM2846 Standard SDR11
Size Weight/M   Size Weight/M
½" 0.12 ½" 0.106
¾" 0.21 ¾" 0.172
1" 0.343 1" 0.268
1¼ " 0.52 1¼" 0.426
1½" 0.72 1½" 0.594
2" 1.222 2" 1.094



3. Product Package

Our PVC pipe packing is very strong, can effectively avoid the plastic pipe to suffer unnecessary losses. Of course, if you have additional requirements for packing, we will also meet you.

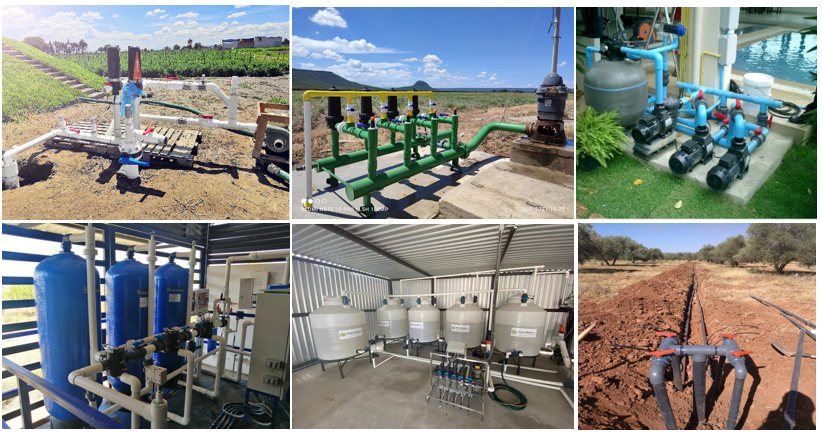

4. Application Field

The application fields of our plastic pipes are very broad: household water supply/drainage, agricultural irrigation, urban construction, industrial chemical industry, etc. In addition, we have a variety of product quality standards, matching different standards for different fields, which makes our pipes very standardized from production to use.






5. Our Certificate


6. Our Factory

We are a professional plastic valve, pipe, and pipe fittings manufacturer. our company mainly produces various PVC ball valves, pipes, and fittings for 15 years. We welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.




7. FAQ

1. Are you a manufacturer or a trading company?
We are the manufacturer and have our own factory.

2. What's your price?
According to the different products, materials, sizes, and even MOQ, our prices are different. Anyway, our price is very competitive. Please contact me if you want to get the latest price list.

3. What product does your company produce?
we mainly manufacture kinds of plastic valve and plastic pipe, plastic fittings. We also developing group irrigation products to support sales. In addition, we will open new mold and customized service according to customers' market needs.

4. Do you accept OEM?
Yes, we accept OEM. We will engrave trademarks, laser print trademarks, and provide color box packaging, color box design, packaging design, pallet service, and product material formulas according to customer needs. The product material formula can also be replaced according to different usage requirements.

5. Can you provide related documents?
Yes, we can provide certificate files if you need them.

6. How long is your lead time?
The range of our lead time is 25-50 days. It depends on your requirement.

7. Do you have a customized service?
Yes, I will customize products according to customer needs.

8. Can I be your distributor?
Yes, we are very glad to cooperate with customers all over the world.

9. Where is your company's address?
Our company is located in the Ningbo Zhejiang Province, China.

10. How can I contact you?
You can send us an email at any time to ask any questions, we will reply to you in the shortest possible time.
