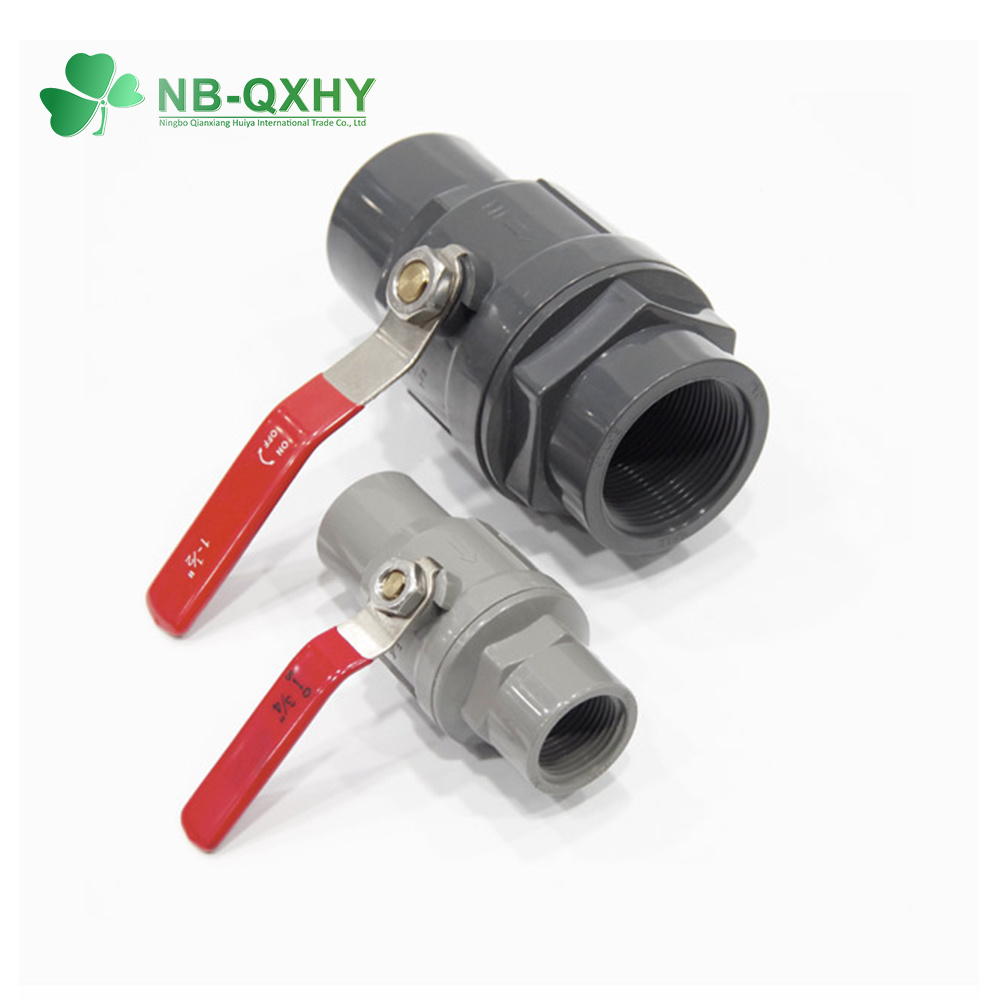

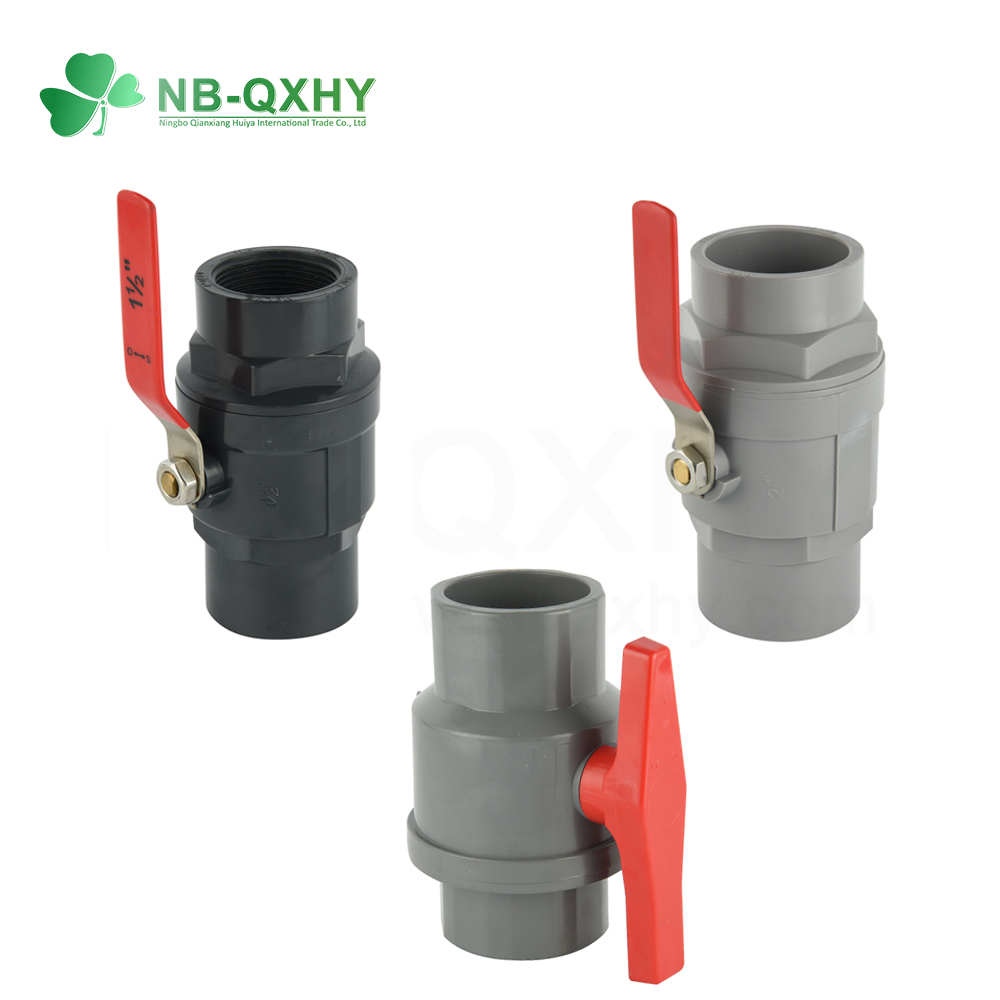

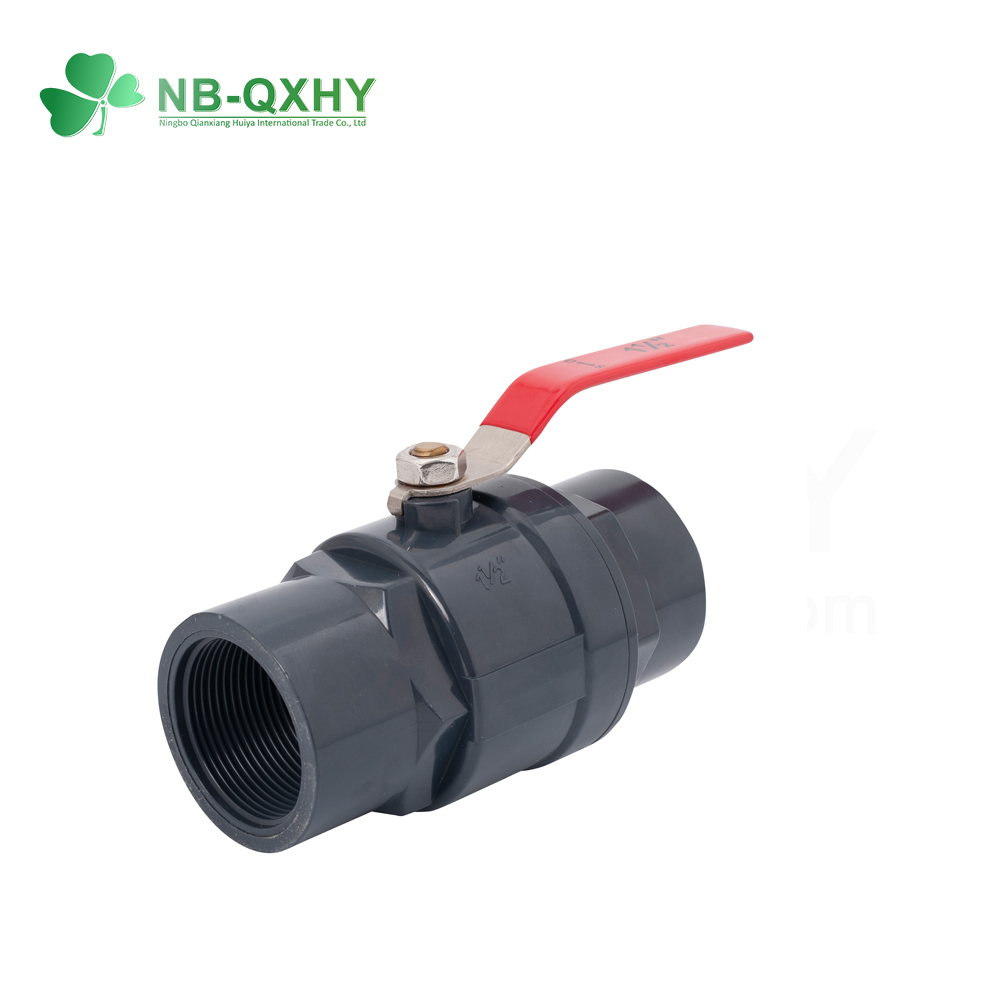

Two Pieces Ball Valve with SS handle
Two Pieces Ball Valve with SS handle
Media: Water
Material: PVC, Plastic
Connection Form: Socket or Threaded
Driving Mode: Manual
Structure: Flexible Ball Valve
Temperature: Normal Temperature
Pressure: Pn10/150psi
Size: 1/2″-4″
The main raw material of our two pieces ball valve is PVC, but its handle is made of stainless steel, which is very convenient to use. It is mainly used for gas or liquid regulation and control.
PRODUCT DESCRIPTION
1. Product Information
| Product Name | Two Pieces Ball Valve | Color | Customized | |
| Main Material | PVC | Place of Origin | Zhejiang, China | |
| Size | 1/2″ to 4″ | Packing | Carton, Polybag, Color Box, or Customized | |
| Power | Manual | Application | Swimming Pool, Construction Project, Agricultural Irrigation | |
| End Connection | Socket/Threaded | Port | Ningbo/Shanghai | |
| Customized Support | OEM, ODM | Lead Time | 25-35 Days | |
| Standard | CNS/JIS/DIN/BS/ANSI/NPT/BSPT | Sample | Free | |
| Certificate | ISO9001,SGS, GMC, CNAS | Logo | Printed or Customized |
2. Product Parameters
| NO. | PART | MATERIAL | QTY |
| 1 | Body | UPVC, CPVC | 1 |
| 2 | Seat Seal | TPE, TPV, TPO | 2 |
| 3 | Stem O-Ring | EPDM,FPM (NBR) | 2 |
| 4 | Ball | UPVC, CPVC | 1 |
| 5 | Handle | Stainless steel | 1 |
| 6 | Stem | UPVC, CPVC | 1 |
| 7 | Bolt | Stainless steel, Iron | 1 |
3. Product Size
| SIZE | d3 | D | L | L1 | H2 |
| 1/2″ | 15 | 29 | 93 | 80 | 54.5 |
| 3/4″ | 20 | 33.2 | 100 | 80 | 61 |
| 1″ | 25 | 42.1 | 114.8 | 82 | 76 |
| 1-1/4″ | 29 | 54 | 128 | 110.6 | 90.4 |
| 1-1/2″ | 38 | 61 | 139.4 | 113 | 103.5 |
| 2″ | 47 | 74.6 | 169 | 121.5 | 122.4 |
| 2-1/2″ | 57 | 91 | 197 | 140.8 | 144 |
| 3″ | 68 | 105.6 | 251 | 192 | 176 |
| 4″ | 86 | 135 | 282 | 214 | 196 |
4. Product Packaging
We use high-quality kraft cartons for packaging. Our cartons are very strong and can protect the ball valve from damage during transportation. In addition, for the sake of privacy policy, we do not show color boxes here, but we can provide you with this service.
