DIN Standard Pipe Fittings

Our DIN standard pipe fittings have excellent quality, acid and alkali resistance, corrosion resistance and long service life. Among them, pn16 pipe fittings are our key products, which are thicker and more durable than ordinary pipe fittings, and can be used in the chemical industry.

UPVC pipe fittings DIN Standard

PVC Cross

PVC Elbow

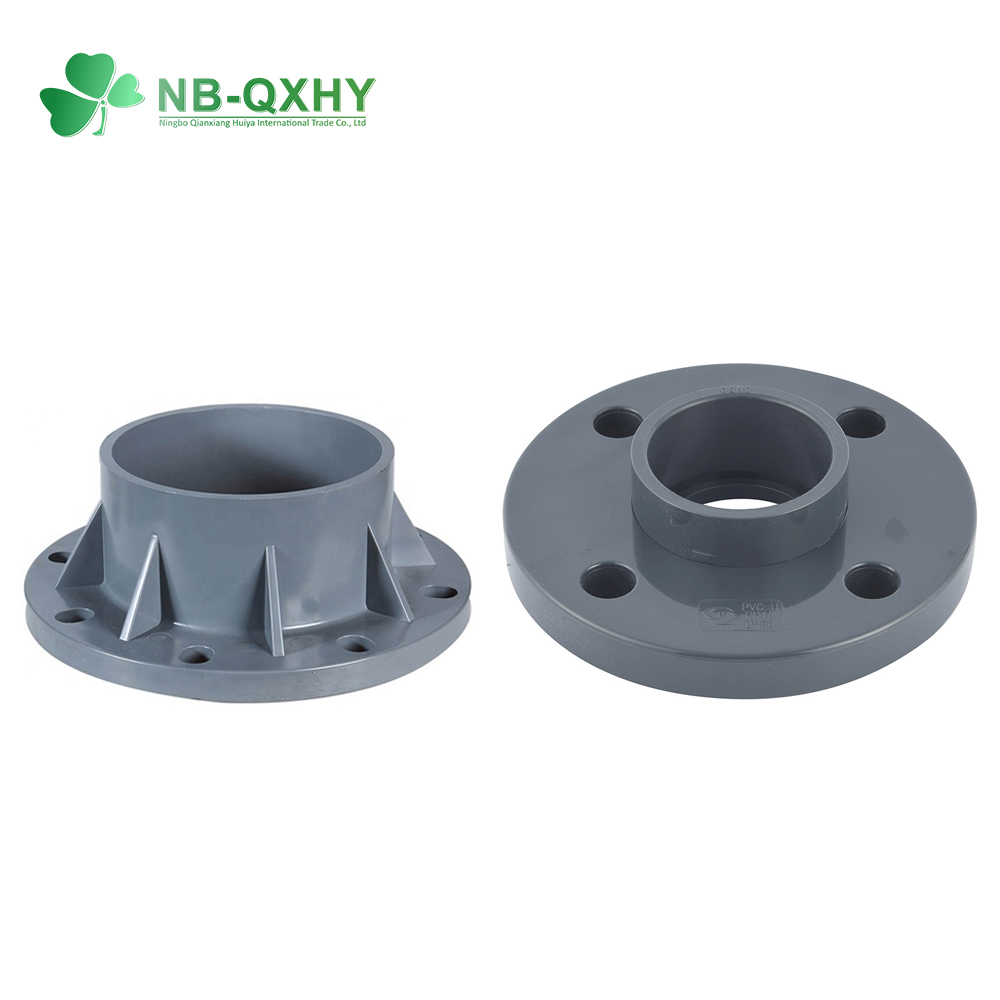

PVC Flange

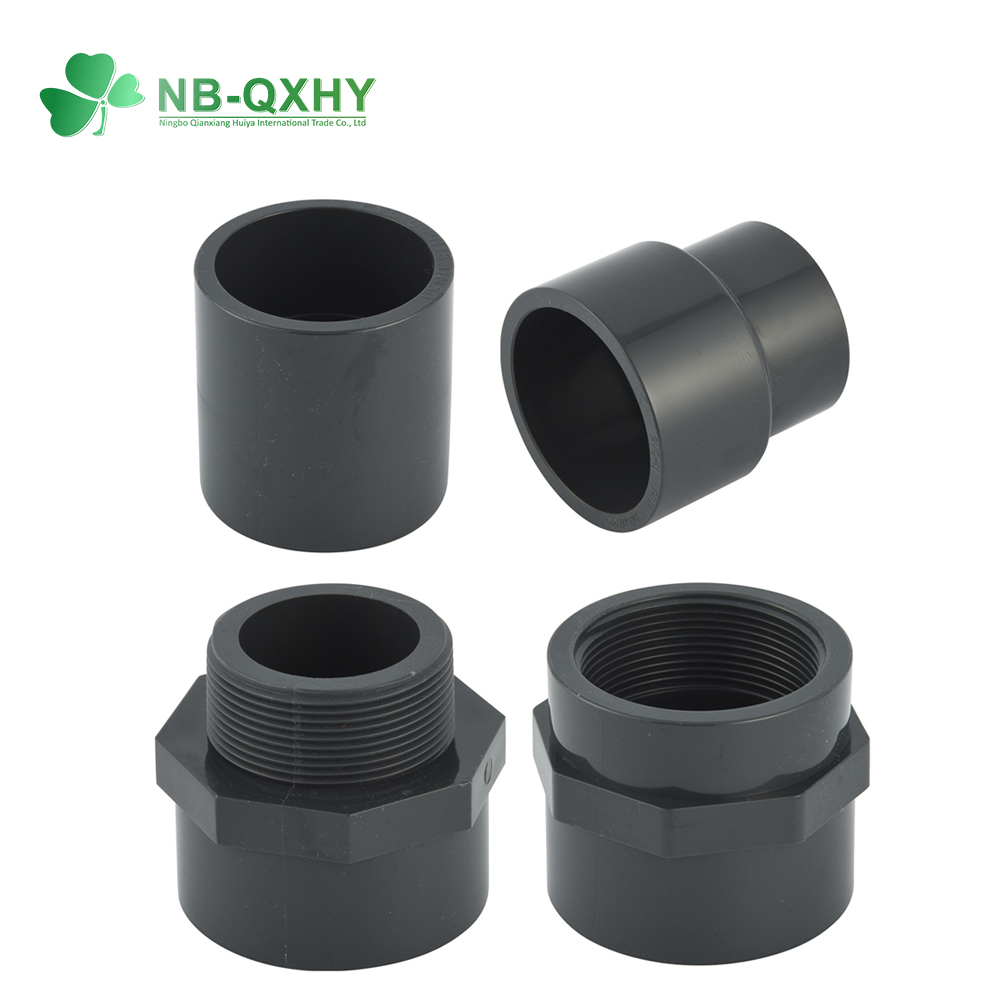

PVC Coupling

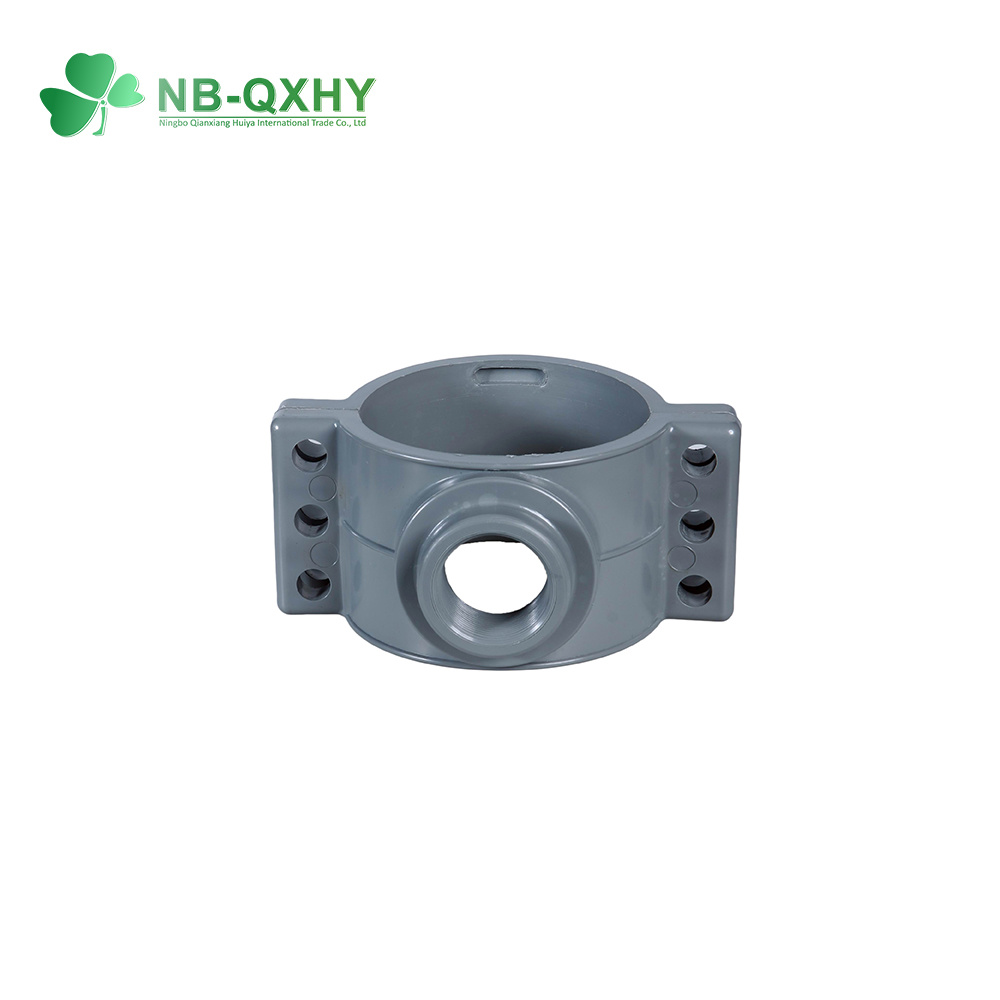

PVC Clamp Saddle

PVC Tee

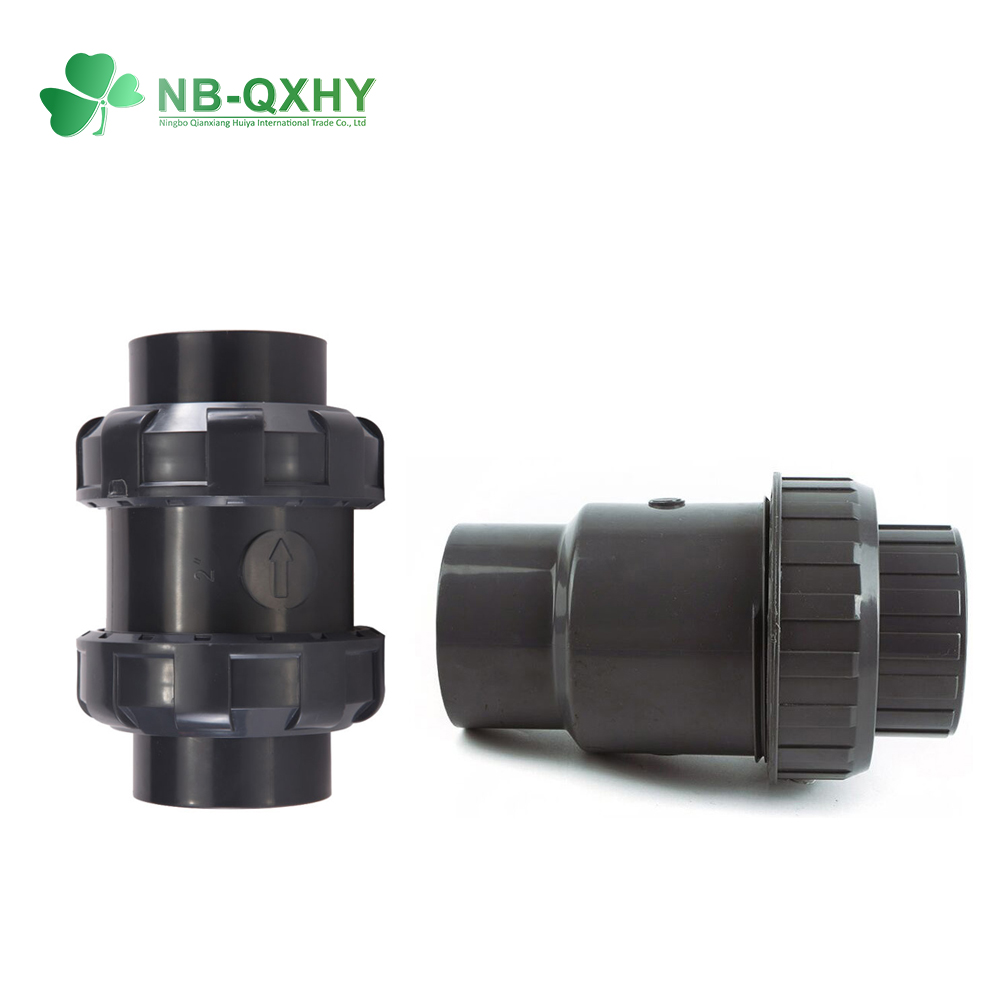

PVC Check Valve

DIN Pipe Fittings Manufacturer

There are two types of our DIN standard water supply pipe fittings, one is the conventional type, which has a thinner wall thickness and lighter weight, but the price is more advantageous. One is industrial grade pipe fittings, which have thicker walls and better quality, which can well meet the needs of chemical scenarios. According to different situations, our factory has a variety of products with different prices and types to choose from, which can well cover the needs of most customers. Please tell us your requirements, we can provide product catalog and latest price list.






PVC DIN Fittings Information

Product Name   DIN Fittings   Color Grey, White, Blue or Customized
Main Material UPVC Pressure PN10/16
Size DN15-DN400 Packing Standard Export Packaging or as Your Request
Main Market South America, Southeast Asia, Middle East, Africa Use Water Supply
Connection Socket Origin Ningbo, Zhejiang, China
Customized Support OEM, ODM Port    Ningbo/Shanghai
Technics Injection Lead Time  25-35 Days
Certificate ISO Sample Free



PVC DIN Fittings Specification

Product Name Specification Packaging Quantity Weight Box Size
(mm) (PCS/Box)
 Coupling  DN15(φ20) 80*24=1920 12 480*360*360
DN20(φ25) 80*14=1120 18 480*360*360
DN25(φ32) 30*20=600 29 480*360*360
DN32(φ40) 476 52 455*352*408
DN40(φ50) 252 87 435*365*415
DN50(φ63) 150 149 460*385*415
DN65(φ75) 80 231 460*360*390
DN80(φ90) 48 349 435*330*450
DN100(φ110) 27 589 395*395*400
DN125(φ140) 18
DN150(φ160) 12
DN200(φ225) 4
DN250(φ280) 4
DN300(φ315) 4
DN350(φ355) 1
DN400(φ400) 1
Elbow DN15(φ20) 80*16=1280 19 480*360*360
DN20(φ25) 40*19=760 30 480*360*360
DN25(φ32) 20*20=400 50 480*360*360
DN32(φ40) 15*15=225 88 480*360*360
DN40(φ50) 128 148 495*360*375
DN50(φ63) 75 258 545*375*340
DN65(φ75) 48 404 530*375*400
DN80(φ90) 24 616 450*430*310
DN100(φ110) 20 1057 505*505*365
DN125(φ140) 12
DN150(φ160) 6
DN200(φ225) 2
DN250(φ280) 2
DN300(φ315) 2
DN350(φ355) 1
DN400(φ400) 1
Tee DN15(φ20) 50*16=800 26 480*360*360
DN20(φ25) 30*16=480 39 480*360*360
DN25(φ32) 20*14=280 65 480*360*360
DN32(φ40) 168 115 445*350*400
DN40(φ50) 108 192 555*360*360
DN50(φ63) 75 337 545*375*435
DN65(φ75) 32 515 520*380*350
DN80(φ90) 24 787 470*440*410
DN100(φ110) 18 1348 560*390*485
DN125(φ140) 6
DN150(φ160) 6
DN200(φ225) 2
DN250(φ280) 2
DN300(φ315) 1
DN350(φ355) 1
DN400(φ400) 1
45°Elbow DN15(φ20) 80*20=1600 16 480*360*360
DN20(φ25) 50*18=900 24 480*360*360
DN25(φ32) 30*16=480 40 480*360*360
DN32(φ40) 15*18=270 69 480*360*360
DN40(φ50) 150 118 480*360*360
DN50(φ63) 100 204 545*375*340
DN65(φ75) 60 313 530*375*400
DN80(φ90) 44 476 470*440*410
DN100(φ110) 24 807 505*505*365
Reducing Coupling DN20*15(φ25*20) 80*16=1280 17 480*360*360
DN25*15(φ32*20) 50*17=850 25 480*360*360
DN25*20(φ32*25) 50*16=800 27 480*360*360
DN32*15(φ40*20) 30*16=480 41 480*360*360
DN32*20(φ40*25) 30*15=450 42 480*360*360
DN32*25(φ40*32) 30*14=420 45 480*360*360
DN40*15(φ50*20) 420 69 435*365*415
DN40*20(φ50*25) 420 70 435*365*415
DN40*25(φ50*32) 420 72 435*365*415
DN40*32(φ50*40) 420 78 435*365*415
DN50*20(φ63*25) 240 119 460*385*415
DN50*25(φ63*32) 240 120 460*385*415
DN50*32(φ63*40) 240 126 460*385*415
DN50*40(φ63*50) 240 131 460*385*415
DN65*20(φ75*25) 120 180 460*360*360
DN65*25(φ75*32) 120 182 460*360*360
DN65*40(φ75*50) 120 193 460*360*360
DN65*50(φ75*63) 80 209 460*360*390
DN80*40(φ90*50) 72 288 435*330*425
DN80*50(φ90*63) 72 295 435*330*425
DN80*65(φ90*75) 72 320 435*330*425
DN100*40(φ110*50) 60 472 520*395*430
DN100*50(φ110*63) 60 483 520*395*430
DN100*65(φ110*75) 60 499 520*395*430
DN100*80(φ110*90) 60 522 520*395*430
Union DN15(φ20) 20*19=380 61 460*390*275
DN20(φ25) 12*20=240 86 460*390*275
DN25(φ32) 9*16=144 136 460*390*275
DN32(φ40) 100 191 420*340*397
DN40(φ50) 100 278 485*390*435
DN50(φ63) 48 400 475*357*390
DN65(φ75) 27 807 445*445*380
DN80(φ90) 27 1363 510*340*470
DN100(φ110) 8 1969 395*395*365
Reducing Bushing DN20*15(φ25*20) 200*20=4000   480*360*360
DN25*15(φ32*20)
DN25*20(φ32*25) 100*22=2200 10 480*360*360
DN32*20(φ40*25)
DN32*25(φ40*32) 50*24=1200 17 480*360*360
DN40*25(φ50*32)
DN40*32(φ50*40) 30*20=600 32 480*360*360
DN50*20(φ63*25)
DN50*25(φ63*32)
DN50*32(φ63*40)
DN50*40(φ63*50) 20*16=320 61 480*360*360
DN65*40(φ75*50)
DN65*50(φ75*63) 196 81 475*348*320
DN80*25(φ90*32)
DN80*50(φ90*63)
DN80*65(φ90*75) 140 135 465*347*380
DN100*40(φ110*50)
DN100*50(φ110*63) 60 240 455*330*320
DN100*65(φ110*75)
DN100*80(φ110*90) 84 314 435*337*440
DN125*100(φ140*110) 36
DN150*50(φ160*63)
DN150*63(φ160*75)
DN150*100(φ160*110) 24
DN150*125(φ160*140) 36
DN200*100(φ225*110) 6
Blind Plate DN40(φ50) 60 389 305*305*265
DN50(φ63) 48 533 335*335*220
DN65(φ75) 36 818 378*378*200
DN80(φ90) 32 977 410*410*195
DN100(φ110) 32 1294 448*448*200
DN125(φ140)
DN150(φ160)
DE200(φ200)
DN200(φ225)
Flange DN40(φ50) 66 315 460*305*455
DN50(φ63) 48 439 505*335*370
DN65(φ75) 42 640 563*378*365
DN80(φ90) 24 787 410*410*335
DN100(φ110) 20 1082 448*448*365
DN125(φ140) 16 1520 505*505*350
DN150(φ160) 12 2110 570*570*297
DN200(φ225) 6
Reducing Tee DN20*15(φ25*20) 15*12=600 34 480*360*360
DN25*15(φ32*20) 30*12=360 52 480*360*360
DN25*20(φ32*25) 30*12=360 56 480*360*360
DN32*15(φ40*20) 55*5=275 78 450*350*390
DN32*20(φ40*25) 53*5=265 85 455*350*415
DN32*25(φ40*32) 50*5=250 97 465*350*450
DN40*20(φ50*25) 36*4=144 129 430*385*380
DN40*25(φ50*32) 41*4=164 146 500*385*415
DN40*32(φ50*40) 36*4=144 165 520*385*440
DN50*20(φ63*25) 30*4=120 207 480*395*425
DN50*25(φ63*32) 120 226 520*395*455
DN50*32(φ63*40) 75 248 500*395*370
DN50*40(φ63*50) 75 283 520*395*400
DN65*20(φ75*25) 80 302 465*375*485
DN65*25(φ75*32) 60 325 470*375*390
DN65*40(φ75*50) 48 396 475*375*445
DN65*50(φ75*63) 48 452 500*375*480
DN80*25(φ90*32) 36 460 435*330*435
DN80*40(φ90*50) 36 541 490*330*480
DN80*50(φ90*63) 36 604 560*330*525
DN80*63(φ90*75) 24 682 445*435*375
DN100*40(φ110*50) 24 859 510*440*365
DN100*50(φ110*63) 24 937 510*460*385
DN100*65(φ110*75) 18 1035 500*400*420
DN100*80(φ110*90) 18 1152 520*400*445
End Cap DN15(φ20) 20*180=3600 8 480*360*360
DN20(φ25) 20*100=2000 13 480*360*360
DN25(φ32) 20*50=1000 21 480*360*360
DN32(φ40) 20*30=600 37 480*360*360
DN40(φ50) 460 63 435*357*415
DN50(φ63) 240 110 460*385*415
DN65(φ75) 140 175 460*360*390
DN80(φ90) 84 164 435*330*450
DN100(φ110) 45 420 395*395*400
Female Coupling DN15(φ20) 100*16=1600 14 475*340*330
DN20(φ25) 60*16=960 21 475*340*330
DN25(φ32) 30*22=660 33 490*415*315
DN32(φ40) 20*20=400 54 490*415*315
DN40(φ50) 192 83 410*320*335
DN50(φ63) 120 141 475*348*320
DN65(φ75) 100 217 465*370*390
DN80(φ90) 60 309 435*337*440
DN100(φ110) 48 501 532*398*420
Male Coupling DN15(φ20) 100*18=1800 14 475*340*330
DN20(φ25) 60*16=960 21 475*340*330
DN25(φ32) 30*22=660 34 490*415*415
DN32(φ40) 20*20=400 55 490*415*415
DN40(φ50) 256 85 410*320*335
DN50(φ63) 168 153 475*348*320
DN65(φ75) 120 223 465*347*380
DN80(φ90) 80 323 435*337*440
DN100(φ110) 48 538 532*398*438
Union Ball Valve(PVC/PPH) DN15(φ20) 100 180 412*292*440
DN20(φ25) 75 239 462*327*327
DN25(φ32) 48 383 436*316*417
DN32(φ40) 36 559 381*356*468
DN40(φ50) 24 826 432*408*346
DN50(φ63) 18 1236 513*378*378
DN65(φ75) 8 2701 436*312*508
DN80(φ90) 6 4114 531*484*314
DN100(φ110) 4 5754 542*406*349
Foot Valve DN40(φ50) 20
DN50(φ63) 18
DN65(φ75) 10
DN80(φ90) 9 1775 545*540*325
DN100(φ110) 6 2605 620*415*385
DN125(φ140) 4 5570 530*530*490
DN150(φ160) 2 6530 575*295*515
DN200(φ200) 2
Electric Ball Valve DN15(φ20) 5
DN20(φ25) 5
DN25(φ32) 5
DN32(φ40) 3
DN40(φ50) 3
DN50(φ63) 3
DN65(φ75) 3
DN80(φ90) 2
DN100(φ110) 2



PVC DIN Fittings Package

Generally speaking, our small-sized pipe fittings are packed in inner bags, and large-sized pipe fittings are directly packed in outer packaging. At the same time, the outer box is packed in imported three-layer corrugated cardboard boxes, which can effectively avoid damage or collision during product handling and transportation.
In addition, we can print the outer box according to the customer's trademark design to achieve customized packaging.





PVC DIN Fittings Market

Our PN10/PN16 UPVC pipe fittings are mainly used in South America, Southeast Asia, Middle East, Africa and other regions. South America mainly needs dark gray UPVC pipe fittings, Southeast Asia mainly needs blue UPVC pipe fittings with small size and light weight, the Middle East mainly needs PN16 pipe fittings, and Africa and Europe mainly need UPVC flexible pipe fittings.

PVC DIN Fittings Advantage

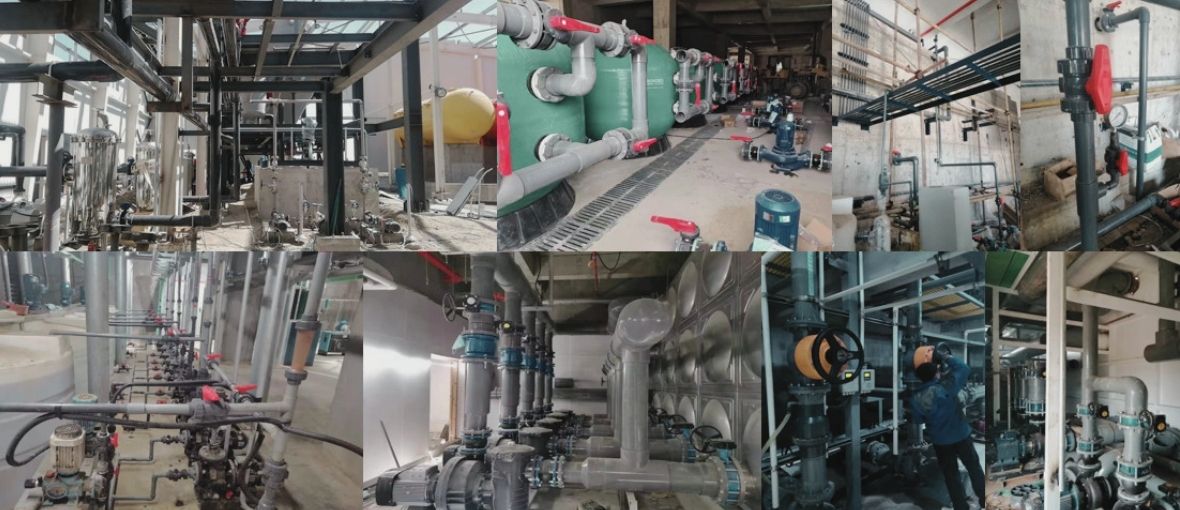

PN10/PN16 UPVC pipe fittings can be mainly used in water supply pipeline systems under different working pressures, with the advantages of convenient connection, stable use and environmental protection.

Our Certifications

Our Service

1. Our pipe fitting molds are complete, which can meet the needs of customers for pipe fittings of different sizes. At the same time, we can provide samples according to customer requirements, and open the mold to produce pipe fittings of special size or special color.


2. We can carry out laser marking on pipe fittings or marking on molds for customers to help customers expand their brand influence.


3. We give priority to the production of orders for customers, and have a stable delivery time.


4. We have professional product engineers who can solve any product problems you encounter during sales or use at any time.


5. We can produce pipes to be used and sold together with our fittings.


6. Our products are certified by ISO: 9001, SGS, BV, CE and other professional testing organizations.


7. We support free samples to directly check the quality of our products.
