True union ball valve

PVC True Union Ball Valve Manufacturer: The two ports of the PVC true union ball valve are made up of two unions, which can be disassembled at any time, so it is more convenient to check and replace than common ball valves. The characteristics of the union ball valve are adjustable tightness, low friction, convenience for maintenance, and not easy to leak. In addition, because the joints can be purchased separately, you can choose the threaded, socket, and standard according to your needs. In general, although its single cost is higher than common ball valves, the replacement cost is lower than common ball valves.

PP Union Ball Valve

PVC Double Union Ball Valve

PVC Single Union Ball Valve

Irrigation Union Ball Valve

Industrial True Union Ball Valve

PVC True Union Ball Valve Manufacturer

We are a China plastic valve and pipe fittings manufacturer. PVC true union ball valve is one of our product series. The main markets for our PVC true union ball valves are the Middle East, Africa, and South America. We have cooperated with many customers for many years and have achieved very good results. There are many kinds of our PVC union ball valve, if you want to know more information, please contact us.

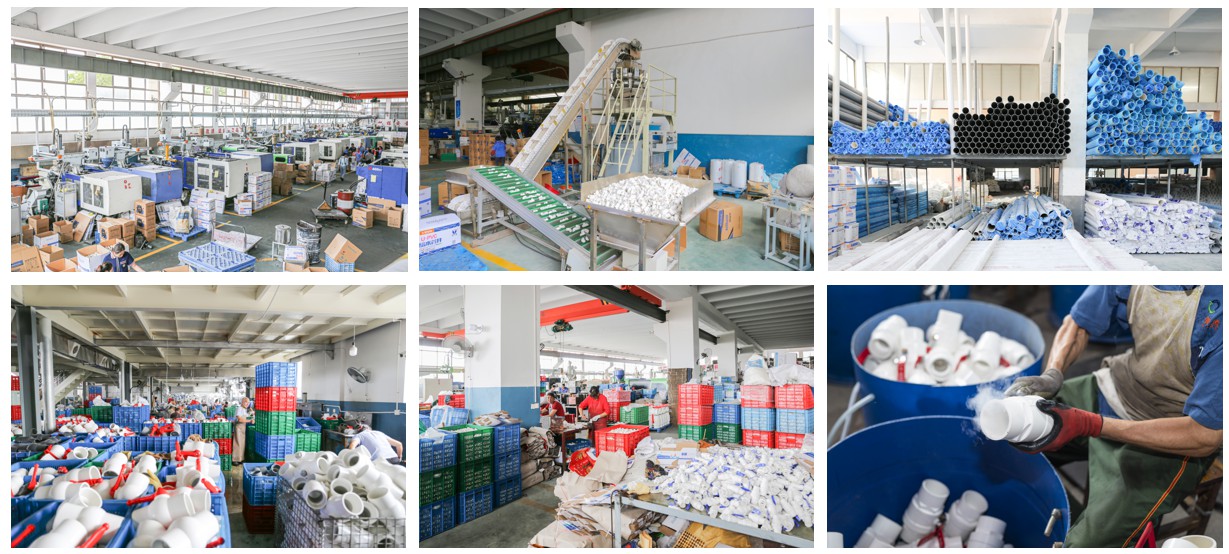

this picture shows our factory workshop


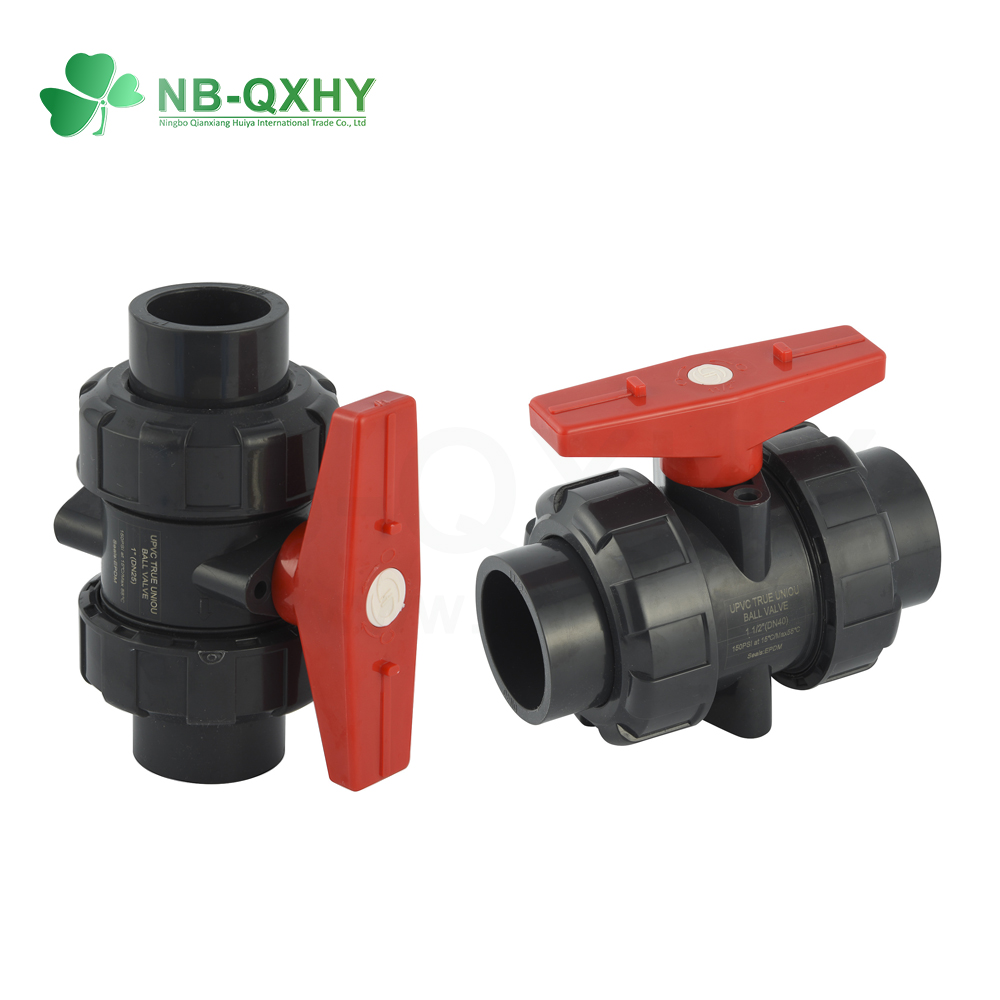

Introduction of PVC Union Ball Valve

The Union ball valve is opened or closed by rotating the ball. The switch of the valve is very light and small, so it can be made into a large diameter. The PVC union ball valve has reliable sealing, a simple structure, and convenient maintenance. The sealing surface and spherical surface are often in a closed state, which is not easy to be eroded by the medium.

Our true union ball valve product range is complete, we have both PVC and PP union ball valves. These union ball valves can not only be used in engineering fields such as swimming pools but also have matching product types for you to choose from in agricultural irrigation and industrial fields.






Product name PVC Union Ball Valve    Color Many Colors Available for Choice
Main Material UPVC   Main Market Southeast Asia, The Middle East, Africa, South America, North America
Size 1/2''-4''   Packing Carton, Polybag, Color Box, or Customized
Power Manual   Application Swimming Pool , Construction Project, Agricultural Irrigation, Industrial Fields
End Connection Socket/Threaded   Port    Ningbo/Shanghai
Customized support OEM, ODM   Lead Time  25-35 Days
Standard CNS/JIS/DIN/BS/ANSI/NPT/BSPT   Sample Available
Certificate ISO9001,SGS, GMC, CNAS   Logo Printed or Customized

Structure of PVC Union Ball Valve

• Single Union Ball Valve: It has only one connector, and the other end is a socket or threaded. The seat and rubber ring are usually EPDM.
• Double Union Ball Valve: It has two connectors, which are more commonly used in swimming pool projects. The seat and rubber ring are usually EPDM.
• Industrial Grade Double Union Ball Valve: It has two connectors, and its shape has one more base than the double union ball valve. The weight is heavier than the double union ball valve. And, It is resistant to chemical corrosion. The seat generally uses PTFE, and the rubber ring uses EPDM.

Plus: The O-rings of the union ball valve are all made of EPDM, which is better than the NBR, and the handle is made of PVC or ABS, which is better than the PP, and it is not easy to break. Since the interface of the union ball valve is broken, it can be reused by replacing the union, but the common ball valve is completely scrapped.

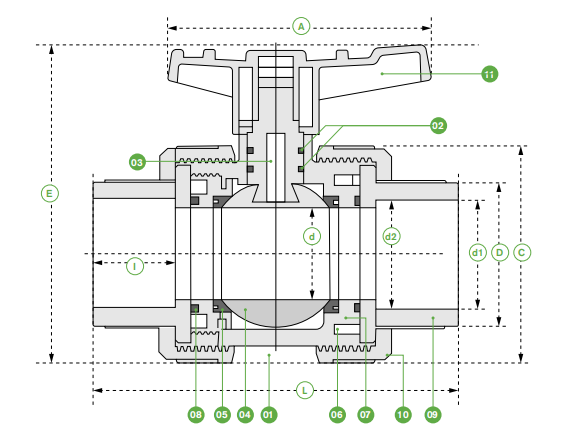

   this is the product structure design drawing of single union ball valve

NO. PART MATERIAL QTY
1 BODY UPVC, CPVC 1
2 STEM O-RING EPDM, FPM (NBR) 2
3 STEM UPVC, CPVC 1
4 BALL UPVC, CPVC 1
5 SEAT SEAL TPE, TPV, TPO 2
6 CARRIER O-RING EPDM, FPM (NBR) 1
7 SEAL CARRIER UPVC, CPVC 1
8 UNION O-RING EPDM, FPM (NBR) 1
9 END CONNECTOR UPVC, CPVC 1
10 UNION NUT UPVC, CPVC 1
11 HANDLE PVC 1

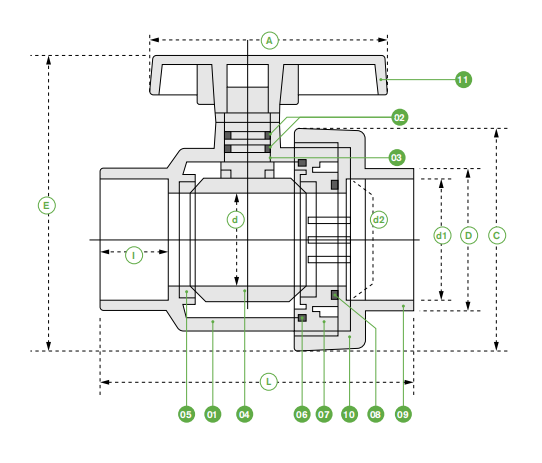

   this is the product structure design drawing of double union ball valve

NO. PART MATERIAL QTY
1 BODY UPVC, CPVC 1
2 STEM O-RING EPDM,FPM (NBR) 2
3 STEM UPVC, CPVC 1
4 BALL UPVC, CPVC 1
5 SEAT SEAL TPE, TPV, TPO 2
6 CARRIER O-RING EPDM,FPM (NBR) 1
7 SEAL CARRIER UPVC CPVC 1
8 UNION O-RING EPDM,FPM (NBR) 2
9 END CONNECTOR UPVC, CPVC 2
10 UNION NUT UPVC, CPVC 2
11 HANDLE PVC 1


Dimension of PVC Union Ball Valve (Unit: mm)



Model DN 15 20 25 32 40 50 65 80 100
SIZE 1/2” 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
  thd./in NPT 14 14 11.5 11.5 11.5 11.5 8 8 8
BSPT 14 14 11 11 11 11 11 11 11
JIS l 16.1 18.5 21 26.5 31.3 38 41 51.5 61
d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
ANSI l 16.1 18.5 21 26.5 31.3 38 41 51.5 61
d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
DIN l 16.1 18.5 21 26.5 31.3 38 41 51.5 61
d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
d2 20 25 32 40 50 63 75 90 110
d 15 20 25 30 38 48 59 72 96
C 56 60 69 80 95 116 139 170 210
E 79 90 103 122 139 166 190 235 277
A 67 78 87 102 120 146 178 210 250
L 83 94 107 122 146 171 210 246 283
D 28.8 35 43 52 62 75.5 88.5 106 131

PVC Union Ball Valve Packaging

The union ball valve for the water supply is packaged in a separate plastic bag for each one, and the outer packaging is a standard export kraft carton + packing belt. The industrial-grade union ball valve is packaged in a separate carton for each one, and customer stickers can be affixed on the carton. Individual folding carton packaging is more convenient for e-commerce customers to use for mailing. The outer packaging is a standard export kraft carton + packing belt.

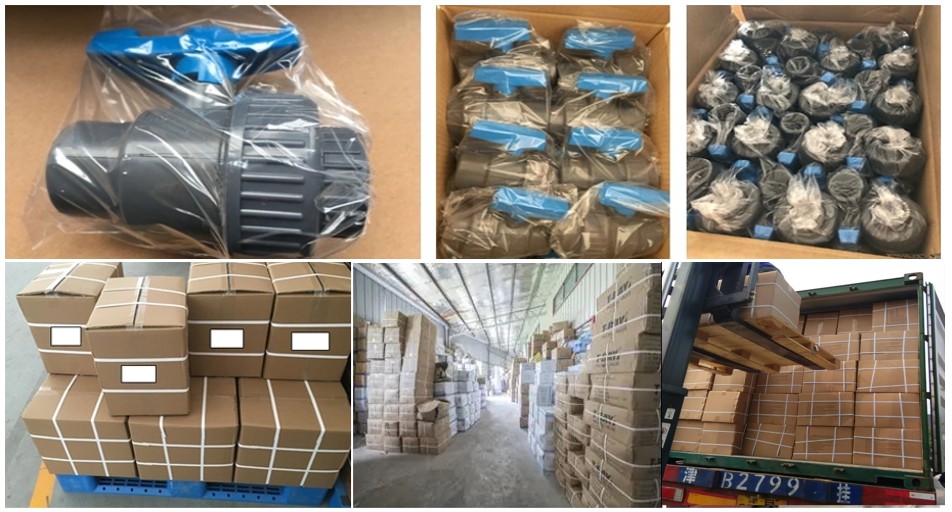

this picture shows the packaging of PVC union ball valve


Our Certificates

this picture shows the certificates of our factory

FAQ

How can we prevent ball valve quality issues?

The biggest problem with the valve is water leakage, so we will conduct a water leakage test to ensure that all the valve does not leak before packaging them.

Two Ways to Distinguish the quality of the ball valve!

The Distinction Between New Material and Recycled Material: Ball valves with light colors such as porcelain white, milky white can not add recycled material, they are all made of new material. Dark colors such as dark gray can be added recycled materials. The surface of new materials is generally smooth, and there will be pitting on the surface of the recycled materials, which can be distinguished by naked eyes.

Feel to Use of PVC Valve: A good ball valve handle turns smoothly and is easy to open. This kind of ball valve manufacturing process is relatively mature and stable.

What other services do we have?

Lead Time: 35 days.
Logo: We can laser print your logo on the product
Package and MOQ: We can make an individual white box or color box. The MOQ of the color box will be higher, usually 3000 per size. Industrial-grade valves are generally available in stock and can be laser-printed with customer LOGO free of charge. Each product is packaged in a separate yellow inner box, and the customer's LOGO, information, etc. can be affixed on the inner box.
