Compact PVC Ball Valve

Compact PVC Ball Valve

Media: Water

Material: PVC

Connection Form: Socket & Threaded

Pressure: Medium Pressure

Brand: NB-QXHY

Model: QX002

Size: 1/2" to 4"

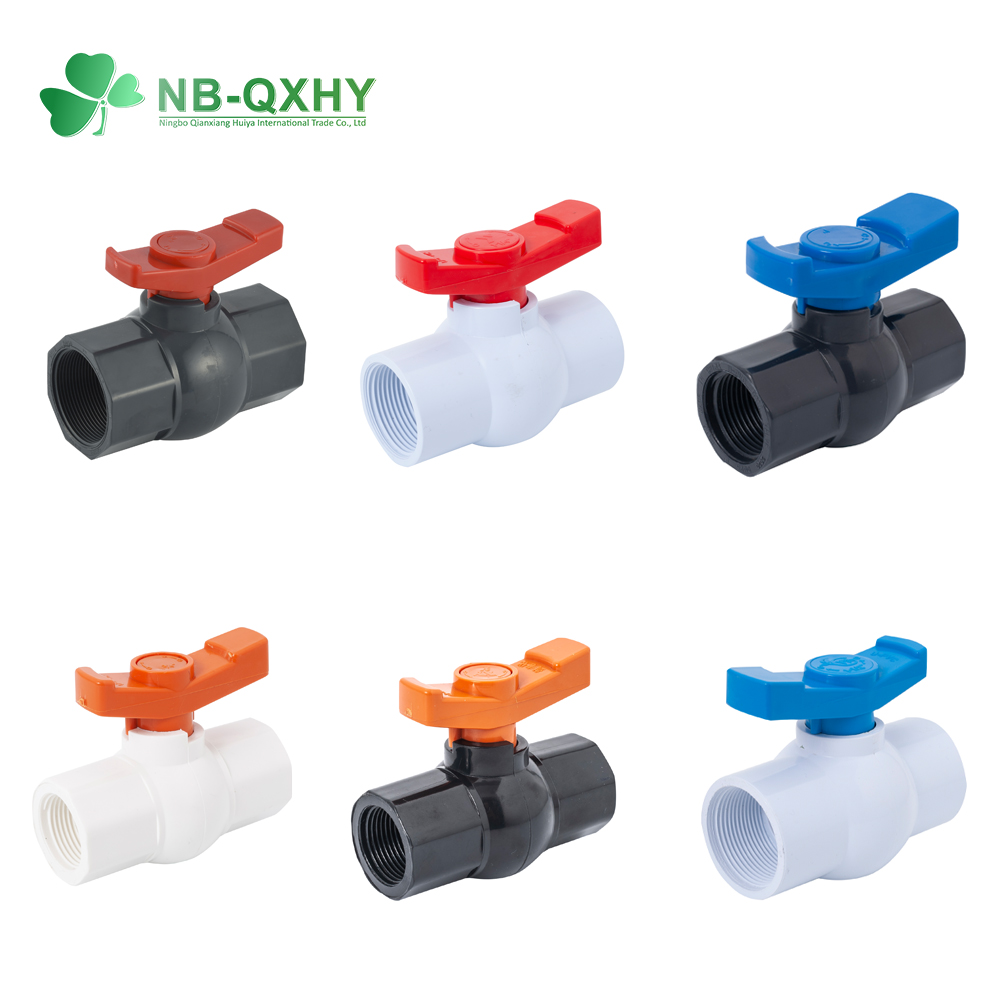

Our compact PVC ball valves are available in different sizes, colors, and handles. We not only have conventional ball valves for you to choose from, but also custom ball valves according to your needs to match your market.



PRODUCT DESCRIPTION

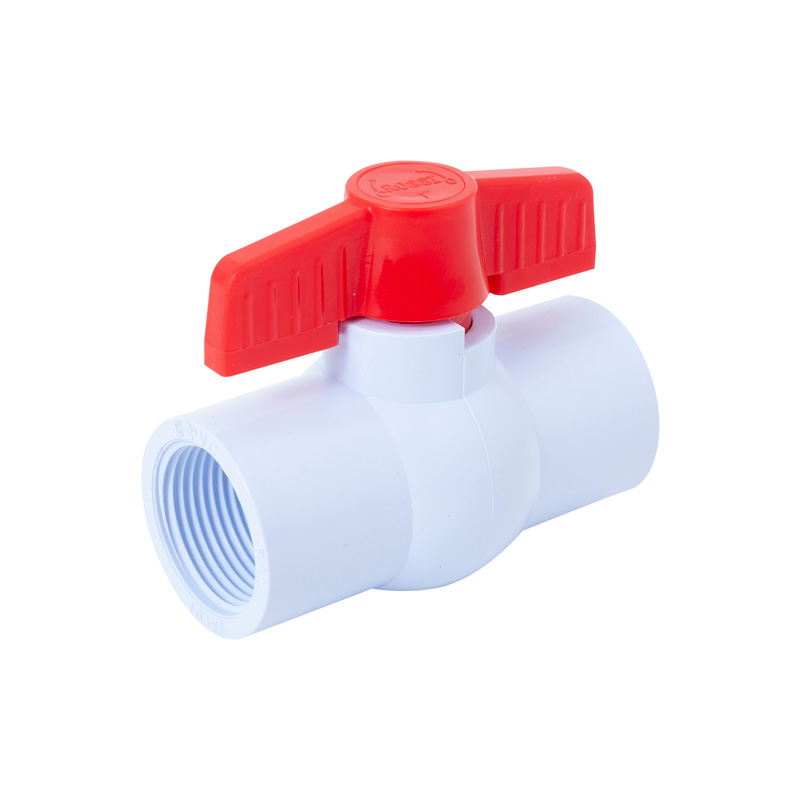

This is a compact PVC ball valve with a red handle and is made from white PVC. Two different connection forms (Socket and threaded ) make it more choices in the piping system.



Compact PVC Ball Valve Manufacturer

We are a professional plastic valve and pipe fittings supplier. our company mainly produces various PVC ball valves, pipes, and fittings for 15 years. The compact PVC ball valve is a member of our product family, we welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.

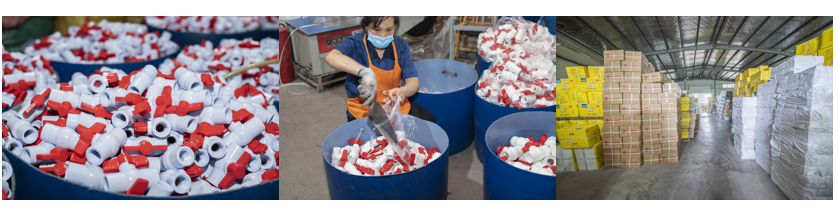

This picture shows our pvc valve and pipe fittings factory


Compact PVC Ball Valve Information

Our compact PVC ball valve is made of corrosion-resistant UPVC (Unplasticized Polyvinyl Chloride). The red handle is very strong and will not break. And this handle type can be replaced.



Payment Terms L/C, T/T, Western Union, Paypal   Package Carton, Color Box or Customized
MOQ Negotiable Size 1/2"- 4"
Lead Time 25-35 days Nominal Pressure    Pn10, Pn16, Pn25
Port Ningbo, China Driving Mode Manual
Function Blow-Down Valve Transportation Ocean, Land, Air
Standard     DIN, ANSI, BS, JIS Place of Origin China Mainland
Color White, Gray, Blue, Brown and Others Application Industrial Usage, Water Industrial Usage, Household Usage

Compact PVC Ball Valve Parameters

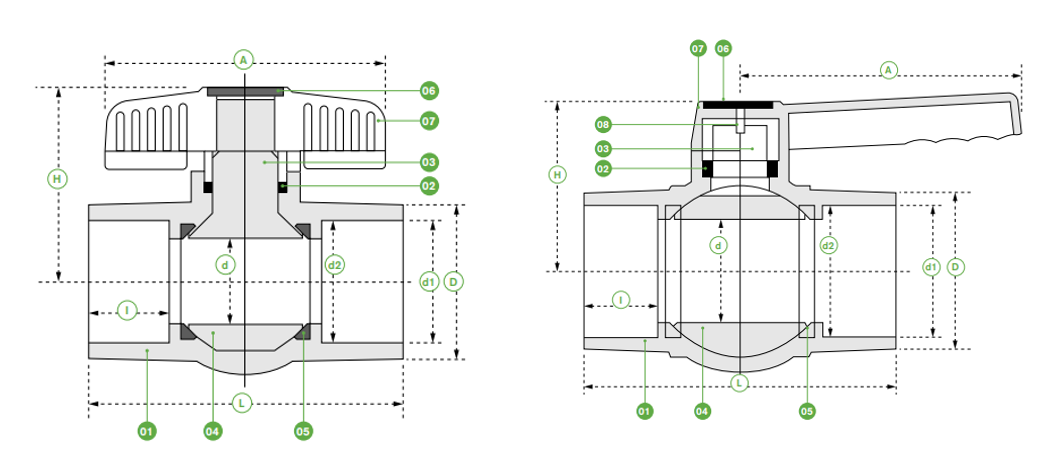

This picture shows the pvc ball valve design drawings.

NO. PART MATERIAL QTY
1 BODY UPVC, CPVC 1
2 STEM O-RING EPDM,FPM (NBR) 1
3 STEM     UPVC, CPVC 1
4 BALL UPVC, CPVC 1
5 SEAT SEAL TPE,TPV,TPO 2
6 CAP PVC, ABS     1
7 HANDLE PVC, ABS 1
8 SCREW SS304,STEEL 1

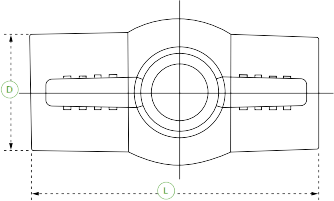

The picture shows the design drawings of pvc ball valve



Model DN 15 20 25 32 40 50 65 80 100
SIZE 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
QX02 thd./in WEIGHT(g) 61 88 140 248 315 525 982 1460 2720
NPT 14 14 11.5 11.5 11.5 11.5 8 8 8
BSPT 14 14 11 11 11 11 11 11 11
JIS l 20 23 25 27 31 34 45 50 55
d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
ANSI l 20 23 25 27 31 34 45 50 55
d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
DIN l 20 23 25 27 31 34 45 50 55
d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
d2 20 25 32 40 50 63 75 90 110
d 15 19 24 30 34 45 55 70 85
H 37 55 66 73 81 91 99 121 134
A 68 80 94 100 110 136 170 210 236
L 77 91 103 111 123 146 178 210 255
D 30 35.5 43 52 62 75 91 106 130



PS: The above are the parameters of the compact PVC ball valve. Because of our customized service, we can change the parameters according to your requirements.



Compact PVC Ball Valve Packaging

Our packaging service is very flexible. Generally speaking, we use plastic bags and mica packaging to package compact PVC ball valves. Of course, color boxes can also be customized. As long as you provide your ideas, we can help you realize them.

The picture shows the compact pvc ball vavle packaging


Product Advantages

  • Because of its compact structure, its fluid resistance is very small.
  • The torque is small and the operation is very convenient.
  • The structure is simple and the application field is very broad.
  • Good Stem O-ring and seat seal make the 1 inch PVC ball valves have good tightness and will not leak water.
  • The handle is detachable, you can replace or customize the handle according to your needs.



Why Choose Us

1. Are you a manufacturer or a trading company?
We are the manufacturer and have our own factory.



2. What's your price?
According to the different products, materials, sizes, and even MOQ, our prices are different. Anyway, our price is very competitive. Please contact me if you want to get the latest price list.



3. Do you accept OEM?
Yes, we accept OEM. We will engrave trademarks, laser print trademarks, and provide color box packaging, color box design, packaging design, pallet service, and product material formulas according to customer needs. The product material formula can also be replaced according to different usage requirements.



4. Do you provide a sample?
We provide free samples.



5. Do you have a MOQ?
Yes, 10 boxes each size, or adjust according to the overall order quantity. If you have other questions, don’t worry, please email us, we can provide you with the best solution.



6. Can you provide related documents?
Yes, we can provide certificate files if you need them. Of course, you also can download our documents.



7. How long is your lead time?
The range of our lead time is 25-35 days. It depends on your requirement.



8. How about the shipping fees?
We supply express delivery, Air transport, sea shipment to the port, door to door service. We will professionally compare sea freight for the customers to choose. For large quantities of orders, sea freight is the best choice. Please tell me the products and quantity you need, so that we can provide you with the most affordable shipping plan.



9. What payment terms do you accept?
L/C, T/T, Western Union, Paypal are available.


10. Do you have a customized service?
Yes, I will customize products according to customer needs.
We have a lot of customized project cases, please contact me to learn more details.

How can I contact you?
Email: sales@nbqxhy.com
WhatsApp/WeChat: +86-18867873336



If you want to see our other PVC ball valves, please click here!
