PP compression fittings

The PP compression fittings are made of excellent engineering materials. The products have good sealing performance, high strength, long service life, convenient installation and easy disassembly. Moreover, the specifications of the PP compression fittings are complete, which can meet the needs of different construction sites.

PP Union Ball Valve

Clamp Saddle

PP Elbow

PP Adaptor

PP Coupling

PP End Cap

PP Compression Fitting Manufacturer

Our factory has more than ten years of experience in the production and export of plastic valve/pipe fittings. In addition, with the development of the company, our order volume has increased year by year, so we have optimized our production tools, production technology and production procedures, greatly improving our production efficiency and greatly shortening the delivery time of orders. If you are interested in our factory, welcome to visit our factory in China.

Product Information

Product Name PP Compression Fittings   Color Blue or Black
Main Material PP Pressure PN16/ PN10
Size 20mm-110mm Packing Standard Export Packaging or as Your Request
Main Market Africa, Middle East, South America, Southeast Asia Use  Irrigation Agricultural, Water Supply
Connection Female/Male Origin Ningbo, Zhejiang, China
Customized Support OEM, ODM Port    Ningbo/Shanghai
Technics Injection Lead Time  25-50 Days
Certificate CE, ISO Sample Free

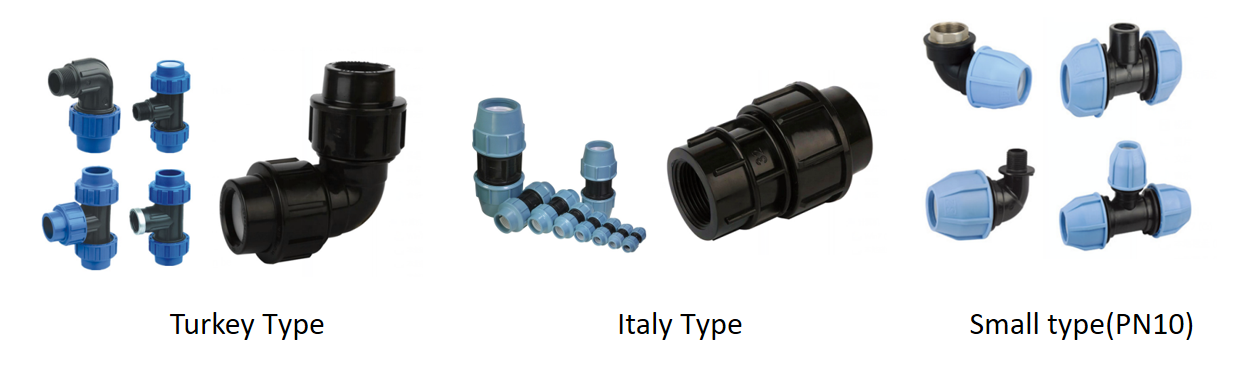

Product Types

Turkey type: Its working pressure is PN16, normally made by dark blue color, can be all black color as well.

Italy type: Its working pressure is PN16, normally made by light blue color, can be all black color as well.

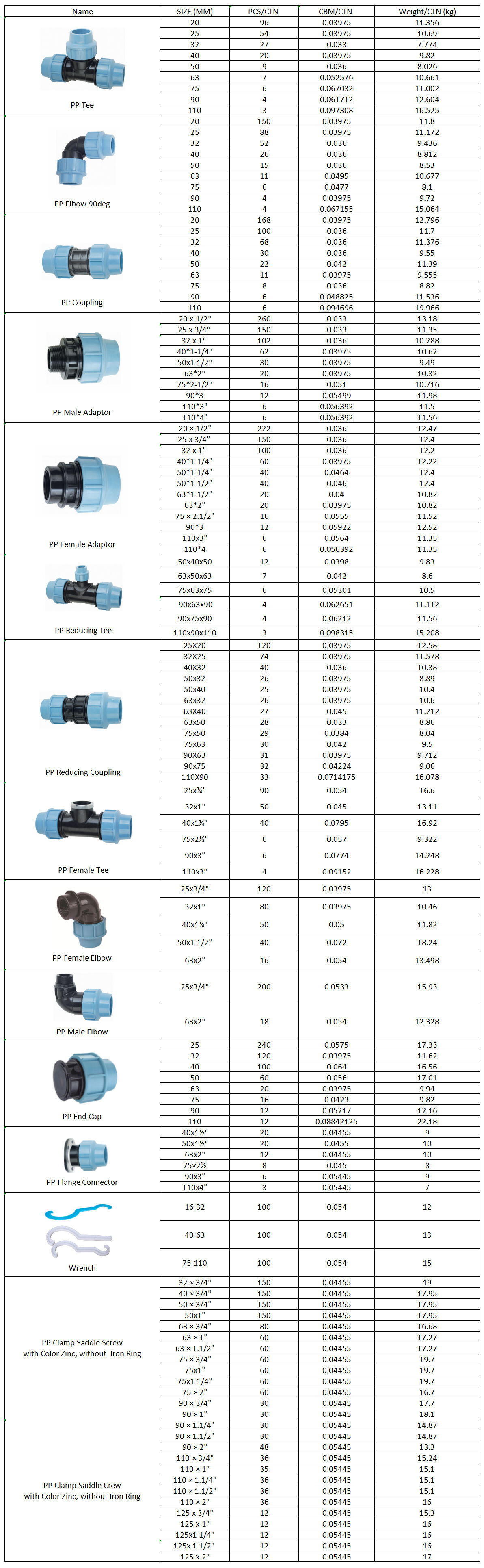

Product Parameters

Name SIZE (MM) PCS/CTN  CBM/CTN  Weight/CTN (kg)
PP Tee  20 96 0.03975 11.356
25 54 0.03975 10.69
32 27 0.033 7.774
40 20 0.03975 9.82
50 9 0.036 8.026
63 7 0.052576 10.661
75 6 0.067032 11.002
90 4 0.061712 12.604
110 3 0.097308 16.525
PP Elbow 90deg  20 150 0.03975 11.8
25 88 0.03975 11.172
32 52 0.036 9.436
40 26 0.036 8.812
50 15 0.036 8.53
63 11 0.0495 10.677
75 6 0.0477 8.1
90 4 0.03975 9.72
110 4 0.067155 15.064
PP Coupling  20 168 0.03975 12.796
25 100 0.036 11.7
32 68 0.036 11.376
40 30 0.036 9.55
50 22 0.042 11.39
63 11 0.03975 9.555
75 8 0.036 8.82
90 6 0.048825 11.536
110 6 0.094696 19.966
PP Male Adaptor  20 x 1/2" 260 0.033 13.18
25 x 3/4"  150 0.033 11.35
32 x 1"  102 0.036 10.288
40*1-1/4" 62 0.03975 10.62
50x1 1/2" 30 0.03975 9.49
63*2" 20 0.03975 10.32
75*2-1/2" 16 0.051 10.716
90*3 12 0.05499 11.98
110*3" 6 0.056392 11.5
110*4" 6 0.056392 11.56
PP Female Adaptor  without Iron Ring  20 × 1/2" 222 0.036 12.47
25 x 3/4"  150 0.036 12.4
32 x 1"  100 0.036 12.2
40*1-1/4" 60 0.03975 12.22
50*1-1/4" 40 0.0464 12.4
50*1-1/2" 40 0.046 12.4
63*1-1/2" 20 0.04 10.82
63*2" 20 0.03975 10.82
75 × 2.1/2" 16 0.0555 11.52
90*3 12 0.05922 12.52
110x3" 6 0.0564 11.35
110*4 6 0.056392 11.35
 PP Reducing Tee     50x40x50 12 0.0398 9.83
63x50x63 7 0.042 8.6
75x63x75 6 0.05301 10.5
 90x63x90 4 0.062651 11.112
90x75x90 4 0.06212 11.56
110x90x110 3 0.098315 15.208
 PP Reducing Coupling        25X20 120 0.03975 12.58
32X25 74 0.03975 11.578
40X32 40 0.036 10.38
50x32 26 0.03975 8.89
50x40 25 0.03975 10.4
63x32 26 0.03975 10.6
63X40 27 0.045 11.212
63x50 28 0.033 8.86
75x50 29 0.0384 8.04
75x63 30 0.042 9.5
90X63 31 0.03975 9.712
90x75 32 0.04224 9.06
110X90 33 0.0714175 16.078
 PP Female Tee without Iron Ring  25x¾" 90 0.054 16.6
32x1" 50 0.045 13.11
40x1¼" 40 0.0795 16.92
75x2½" 6 0.057 9.322
90x3" 6 0.0774 14.248
110x3" 4 0.09152 16.228
   PP Female Elbow without Iron Ring  25x3/4" 120 0.03975 13
32x1" 80 0.03975 10.46
40x1¼" 50 0.05 11.82
50x1 1/2" 40 0.072 18.24
63x2" 16 0.054 13.498
   PP Male Elbow 25x3/4" 200 0.0533 15.93
63x2" 18 0.054 12.328
    PP End Cap 25 240 0.0575 17.33
32 120 0.03975 11.62
40 100 0.064 16.56
50 60 0.056 17.01
63 20 0.03975 9.94
75 16 0.0423 9.82
90 12 0.05217 12.16
110 12 0.08842125 22.18
    PP Flange Connector  40x1½" 20 0.04455 9
50x1½" 20 0.0455 10
63x2" 12 0.04455 10
75×2½ 8 0.045 8
90x3" 6 0.05445 9
110x4" 3 0.05445 7
Wrench 16-32 100 0.054 12
40-63 100 0.054 13
75-110 100 0.054 15
PP Clamp Saddle Screw
with Color Zinc, without  Iron Ring
32 × 3/4" 150 0.04455 19
40 × 3/4" 150 0.04455 17.95
50 × 3/4" 150 0.04455 17.95
50x1" 150 0.04455 17.95
63 × 3/4" 80 0.04455 16.68
63 × 1" 60 0.04455 17.27
63 × 1.1/2" 60 0.04455 17.27
75 × 3/4" 60 0.04455 19.7
75x1" 60 0.04455 19.7
75x1 1/4" 60 0.04455 19.7
75 × 2" 60 0.04455 16.7
90 × 3/4" 30 0.05445 17.7
90 × 1" 30 0.05445 18.1
PP Clamp Saddle Crew
with Color Zinc, without Iron Ring
90 × 1.1/4" 30 0.05445 14.87
90 × 1.1/2" 30 0.05445 14.87
90 × 2" 48 0.05445 13.3
110 × 3/4" 36 0.05445 15.24
110 × 1" 35 0.05445 15.1
110 × 1.1/4" 36 0.05445 15.1
110 × 1.1/2" 36 0.05445 15.1
110 × 2" 36 0.05445 16
125 x 3/4" 12 0.05445 15.3
125 x 1" 12 0.05445 16
125x1 1/4" 12 0.05445 16
125x 1 1/2"  12 0.05445 16
125 x 2" 12 0.05445 17









Product Package

For PP Compression Fitting packaging, we provide cartons, polybags, color boxes or customized. If you have any requirements for packaging, please contact us.




Our Certificates

FAQ

1. Are you a manufacturer or a trading company?
We are the manufacturer and have our own factory.

2. What's your price?
According to the different products, materials, sizes, and even MOQ, our prices are different. Anyway, our price is very competitive. Please contact me if you want to get the latest price list.

3. What product does your company produce?
we mainly manufacture kinds of plastic valve and plastic pipe, plastic fittings. We also developing group irrigation products to support sales. In addition, we will open new mold and customized service according to customers' market needs.

4. Do you accept OEM?
Yes, we accept OEM. We will engrave trademarks, laser print trademarks, and provide color box packaging, color box design, packaging design, pallet service, and product material formulas according to customer needs. The product material formula can also be replaced according to different usage requirements.

5. Can you provide related documents?
Yes, we can provide certificate files if you need them.

6. How long is your lead time?
The range of our lead time is 25-50 days. It depends on your requirement.

7. Do you have a customized service?
Yes, I will customize products according to customer needs.

8. Can I be your distributor?
Yes, we are very glad to cooperate with customers all over the world.

9. Where is your company's address?
Our company is located in the Ningbo Zhejiang Province, China.

10. How can I contact you?
You can send us an email at any time to ask any questions, we will reply to you in the shortest possible time.
