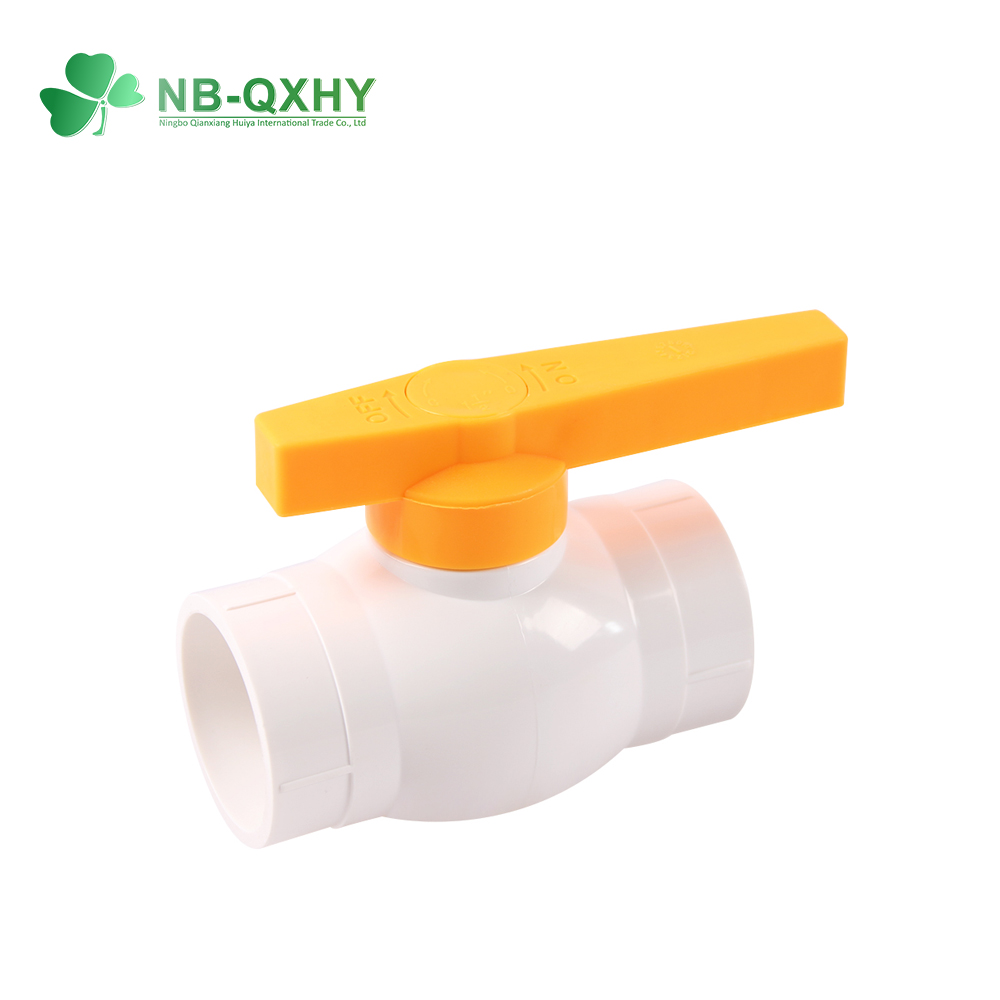

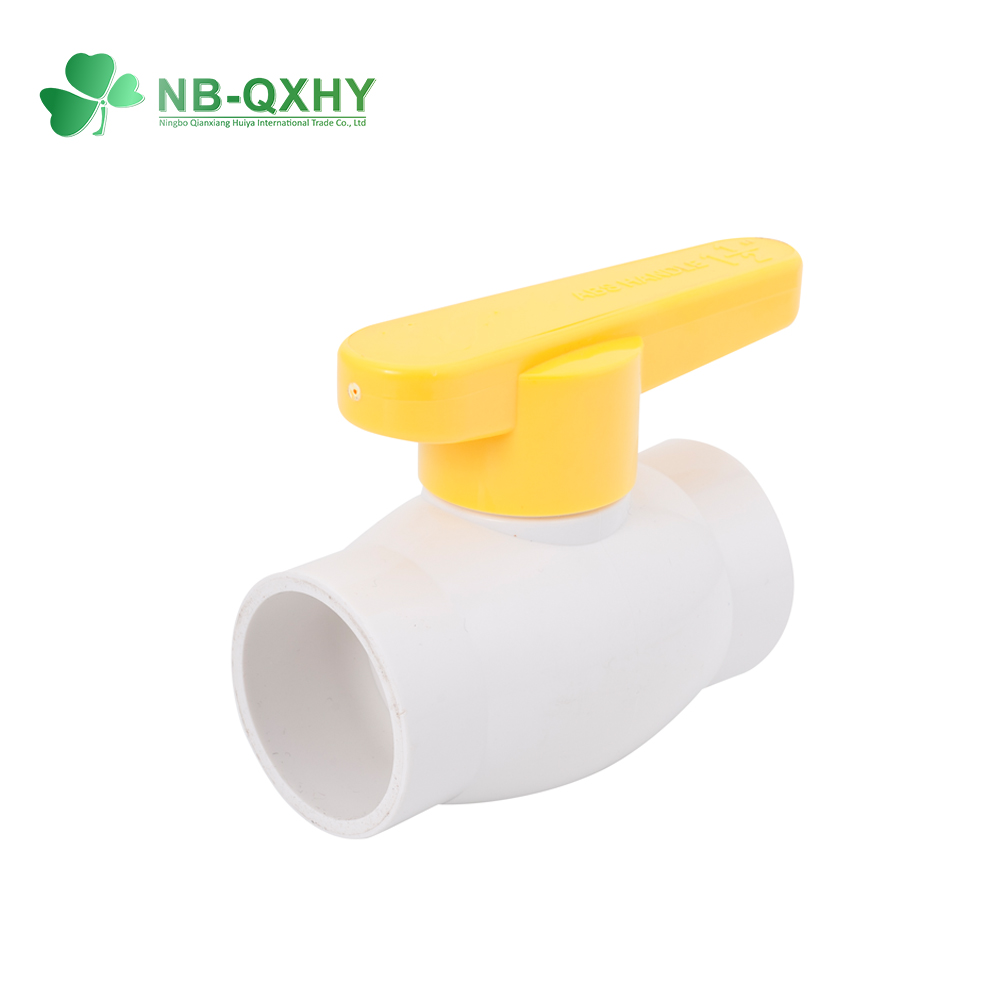

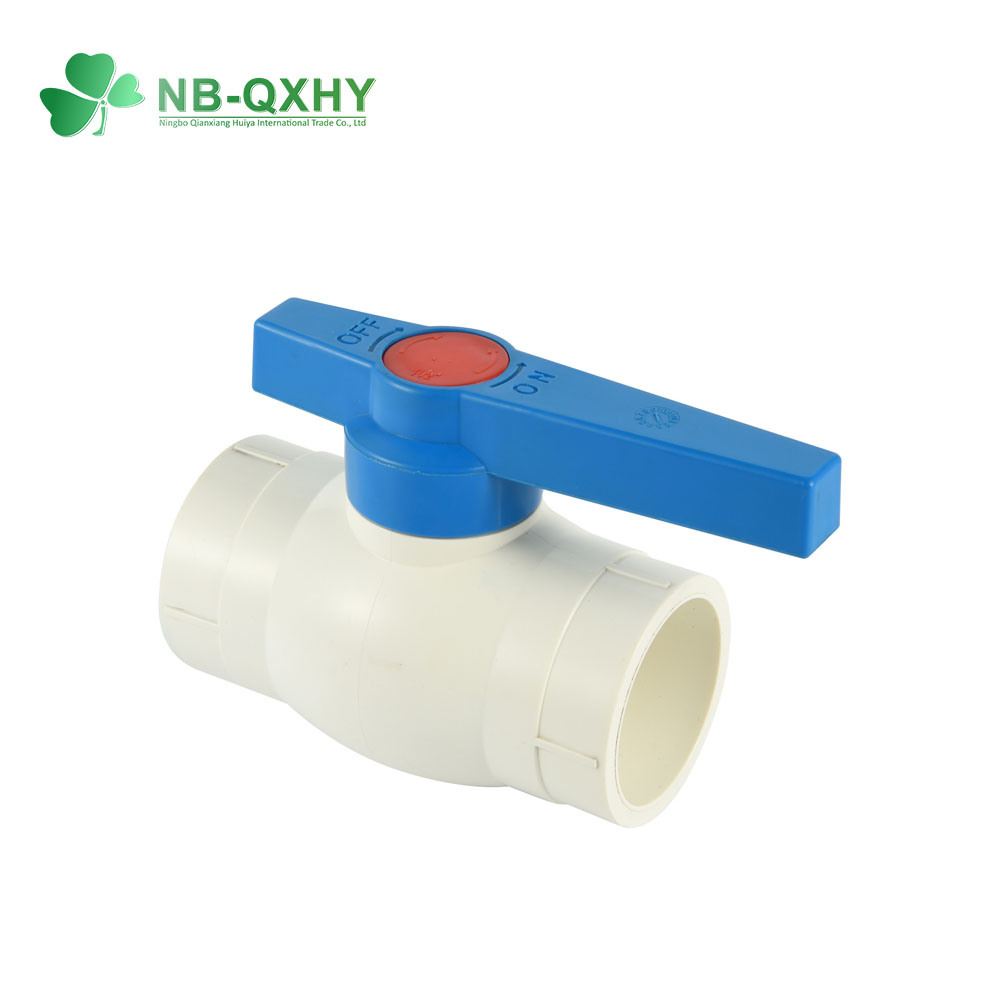

PVC Ball Valve with ABS Handle

PVC Ball Valve with ABS Handle

Media: Water

Material: PVC

Connection Form: Socket or Threaded

Driving Mode: Manual

Nominal Pressure: PN1.0-32.0MPa

Type: Straight Through Type

Brand: NB-QXHY

Size: 1/2"-2"


Indian Style PVC Ball Valve with ABS Handle



PRODUCT DESCRIPTION

PVC Ball Valve Manufacturer: We have a major customer in India who imports this type of PVC ball valve from our factory. We produce and provide OEM services for them, and the current sales of this style of PVC ball valve are very good.





1. Product Information



This type of PVC ball valve uses abs handle. The handle design is not only ergonomic but also very strong and not easy to break. We can customize the color of the handle or engrave the mark on the handle.



Payment Terms L/C, T/T, Western Union, Paypal   Package Carton, Color Box or Customized
MOQ Negotiable Size 1/2", 3/4", 1", 11/4", 11/2", 2"
Lead Time 25-35 days Nominal Pressure    PN1.0-32.0MPa
Port Ningbo, China Driving Mode Manual
Structure Floating Ball Valve Transportation Ocean, Land, Air
Standard     DIN, ANSI, BS, JIS Place of Origin China Mainland
Color White, Gray, Blue, and Others Application Industrial Usage, Water Industrial Usage, Household Usage
Customized Support OEM, ODM   Sample Free
Specification ISO9001, CE, NSF   Logo Printed or Customized

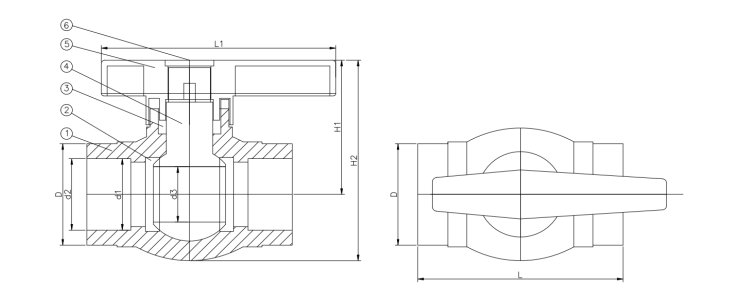

2. Product Structure





NO. PART MATERIAL QTY
1 BODY UPVC, CPVC 1
2 SEAT SEAL TPE,TPV,TPO 2
3 STEM O-RING   EPDM,FPM (NBR) 1
4 BALL UPVC, CPVC, PP 1
6 HANDLE ABS, PVC  1
7 CAP PVC, ABS     1





3. PVC Ball Valve Specifications



Model DN 15 20 25 32 40 50 65 80 100
SIZE 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
  thd./in WEIGHT(g) 61 88 140 248 315 525 982 1460 2720
NPT 14 14 11.5 11.5 11.5 11.5 8 8 8
BSPT 14 14 11 11 11 11 11 11 11
JIS l 20 23 25 27 31 34 45 50 55
d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
ANSI l 20 23 25 27 31 34 45 50 55
d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
DIN l 20 23 25 27 31 34 45 50 55
d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
d2 20 25 32 40 50 63 75 90 110
d 15 19 24 30 34 45 55 70 85
H 37 55 66 73 81 91 99 121 134
A 68 80 94 100 110 136 170 210 236
L 77 91 103 111 123 146 178 210 255
D 30 35.5 43 52 62 75 91 106 130



4. Our Advantages

  • Our factory exports to more than 100 countries and has 10 years of export experience;
  • We accept customized products, and have product research and development capabilities;
  • For This PVC ball valve, our lead time is stable within 25 days to 35 days;
  • We can match different goods to arrange shipment according to the customer's market demand;
  • We have professional shipping company resources that can help you solve the problem of expensive ocean freight;
  • We can also deal various certificates, such as COC, CO, CCIC, etc;
  • We also give customers small gifts with Chinese cultural elements every year.



If you want to know more details, please contact our experts.
