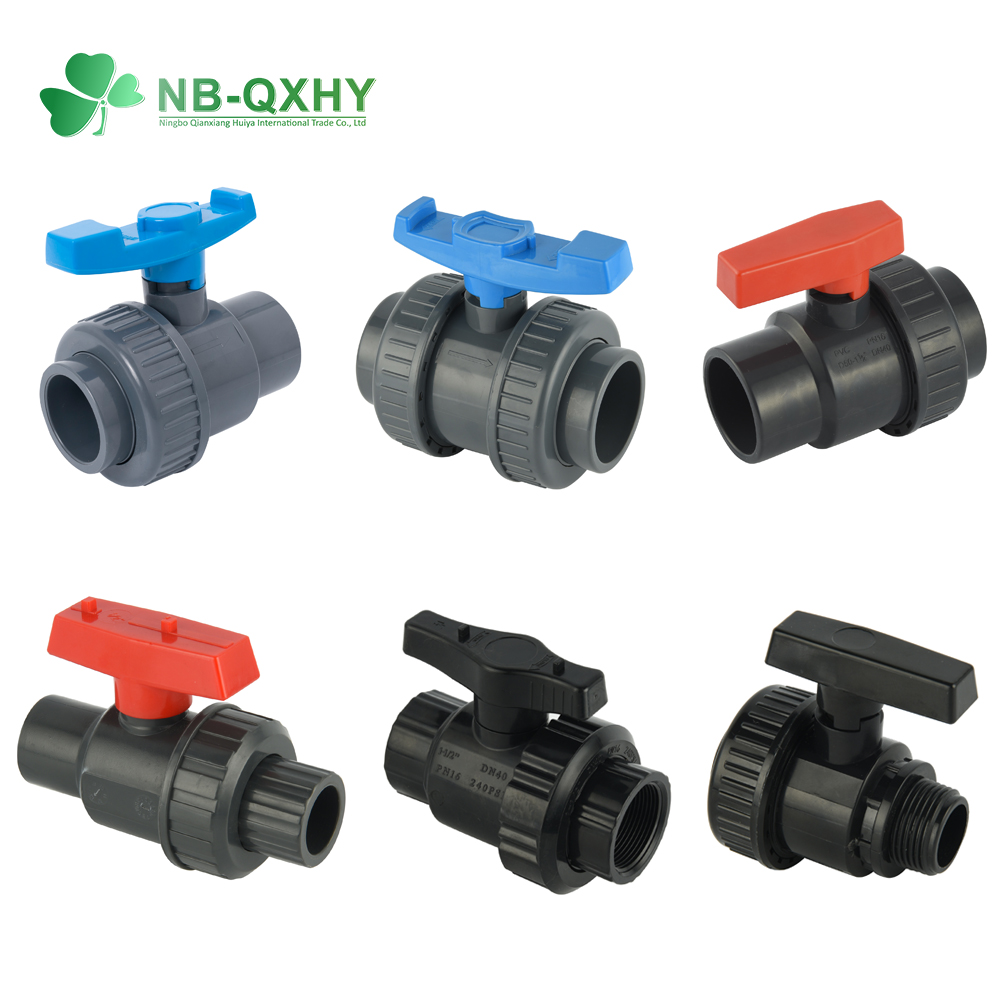

PVC Single Union Ball Valve
PVC Single Union Ball Valve
Media: Water
Material: Plastic, PVC
Connection Form: Socket or Threaded
Driving Mode: Manual
Nominal Pressure: Pn10, Pn16
Type: Straight Through Type
Size: 1/2″-4″
As a professional plastic ball valve factory, we guarantee that each of our products is qualified. If you want to know about our products, you can ask us for samples first.
PRODUCT DESCRIPTION

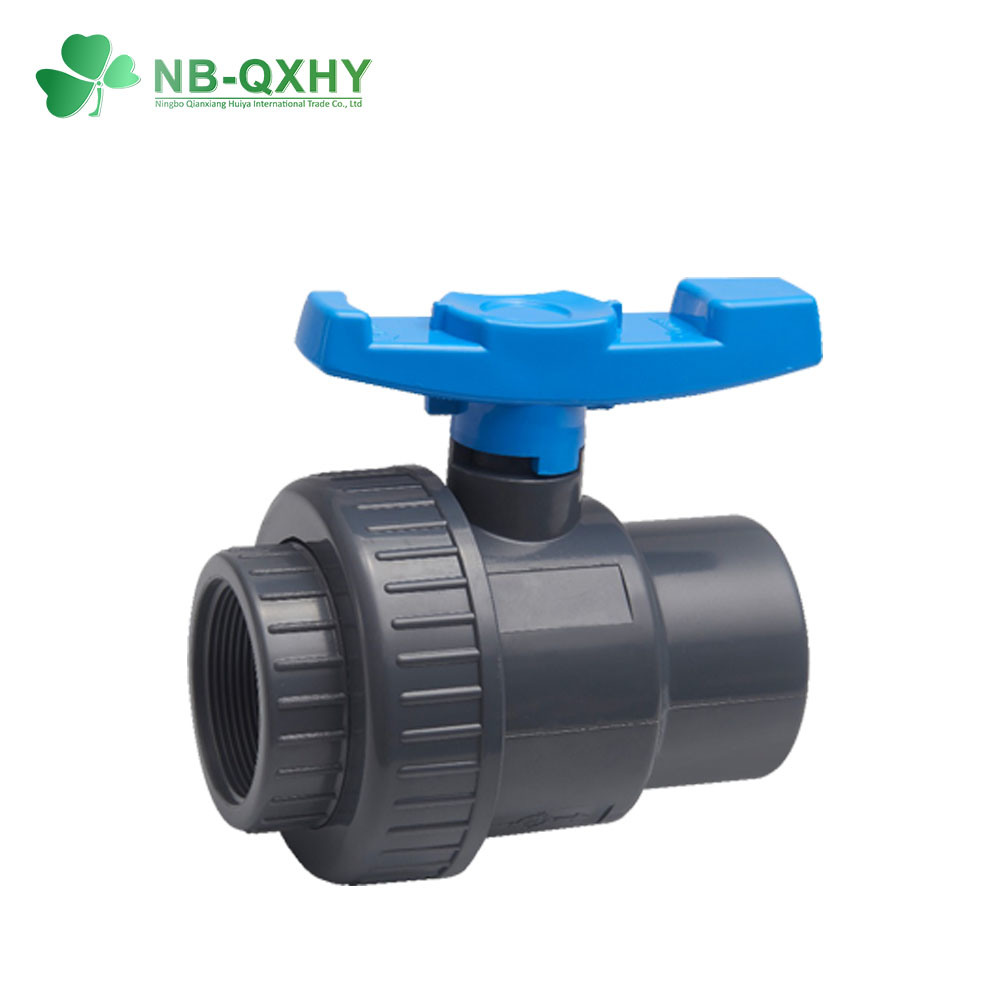

1. Introduction of Single Union Ball Valve
Compared with the double union ball valve, the single union ball valve has only one union that can be disassembled or replaced. The opening and closing of the union ball valve can be controlled by turning the ball to control the water flow in the pipeline. Our union ball valves can be customized in terms of material and appearance. If you have this requirement, you can contact us.
| Product name | PVC Single Union Ball Valve | Color | Many Colors Available for Choice | |
| Main Material | UPVC | Main Market | Southeast Asia, The Middle East, Africa, South America, North America | |
| Size | 1/2”-4” | Packing | Carton, Polybag, Color Box, or Customized | |
| Power | Manual | Application | Swimming Pool , Construction Project, Agricultural Irrigation | |
| End Connection | Socket/Threaded | Port | Ningbo/Shanghai | |
| Customized support | OEM, ODM | Lead Time | 25-35 Days | |
| Standard | CNS/JIS/DIN/BS/ANSI/NPT/BSPT | Sample | Free | |
| Certificate | ISO9001,SGS, GMC, CNAS | Logo | Printed or Customized |

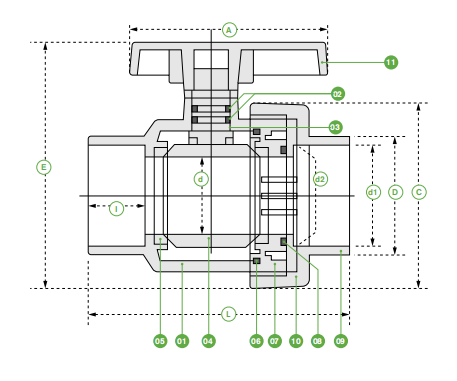

2. Structure of Single Union Ball Valve
| NO. | PART | MATERIAL | QTY |
| 1 | BODY | UPVC, CPVC | 1 |
| 2 | STEM O-RING | EPDM, FPM (NBR) | 2 |
| 3 | STEM | UPVC, CPVC | 1 |
| 4 | BALL | UPVC, CPVC | 1 |
| 5 | SEAT SEAL | TPE, TPV, TPO | 2 |
| 6 | CARRIER O-RING | EPDM, FPM (NBR) | 1 |
| 7 | SEAL CARRIER | UPVC, CPVC | 1 |
| 8 | UNION O-RING | EPDM, FPM (NBR) | 1 |
| 9 | END CONNECTOR | UPVC, CPVC | 1 |
| 10 | UNION NUT | UPVC, CPVC | 1 |
| 11 | HANDLE | PVC | 1 |
3. Dimension of Single Union Ball Valve
| Model | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| SIZE | 1/2” | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ | ||
| thd./in | NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 | |
| BSPT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | ||
| JIS | l | 16.1 | 18.5 | 21 | 26.5 | 31.3 | 38 | 41 | 51.5 | 61 | |
| d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 | ||
| d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | ||
| ANSI | l | 16.1 | 18.5 | 21 | 26.5 | 31.3 | 38 | 41 | 51.5 | 61 | |
| d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 | ||
| d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | ||
| DIN | l | 16.1 | 18.5 | 21 | 26.5 | 31.3 | 38 | 41 | 51.5 | 61 | |
| d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.3 | 90.3 | 110.4 | ||
| d2 | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110 | ||
| d | 15 | 20 | 25 | 30 | 38 | 48 | 59 | 72 | 96 | ||
| C | 56 | 60 | 69 | 80 | 95 | 116 | 139 | 170 | 210 | ||
| E | 79 | 90 | 103 | 122 | 139 | 166 | 190 | 235 | 277 | ||
| A | 67 | 78 | 87 | 102 | 120 | 146 | 178 | 210 | 250 | ||
| L | 83 | 94 | 107 | 122 | 146 | 171 | 210 | 246 | 283 | ||
| D | 28.8 | 35 | 43 | 52 | 62 | 75.5 | 88.5 | 106 | 131 | ||
PS: PVC single union ball valve is one of our series of union ball valves, if you want to know about other types of union ball valves, please click here.
