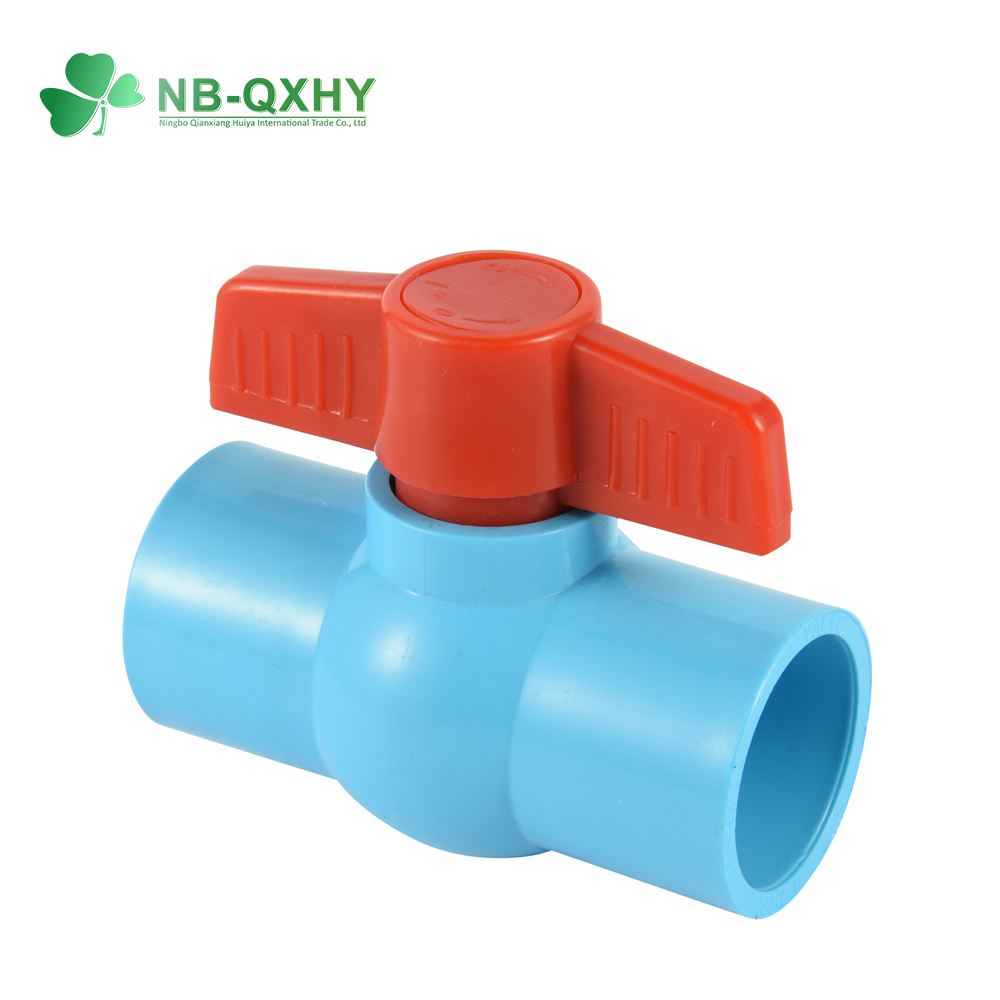

Blue PVC Ball Valve

Blue PVC Ball Valve

Media: Water

Material: PVC

Connection Form: Glue

Driving Mode: Manual

Pressure: Medium Pressure

Brand: NB-QXHY

Size: 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4",5"


Hot Sales New Light Blue PVC Compact Ball Valve with Socket for Water Supply



PRODUCT DESCRIPTION

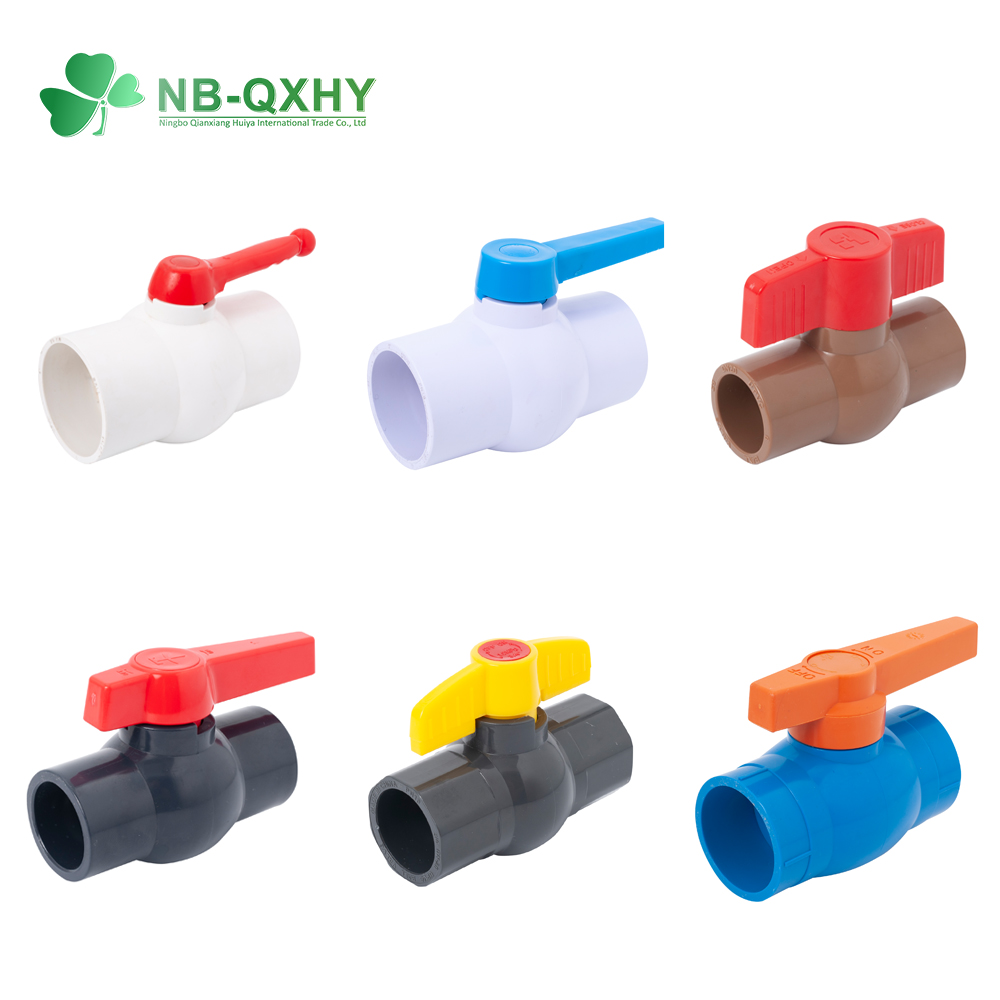

Our PVC ball valves can be customized in color. Because the commonly PVC ball valves in different regions are different in color, we will produce PVC ball valves that meet the characteristics of the local market according to customer requirements. And this blue PVC ball valve is specially prepared for Southeast Asia, such as Thailand Philippines.

We provide two connection methods: socket and thread. It can be used in standard pipe systems such as NPT, BSPT, DIN, ANSI, JIS.





1. Product Information

All our blue PVC ball valves are carefully manufactured in the factory. In addition, we also provide other styles of ball valves. If you have any questions, please feel free to contact me.



Payment Terms L/C, T/T, Western Union, Paypal   Package Carton, Color Box or Customized
MOQ Negotiable Size 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4"
Lead Time 25-35 days Nominal Pressure    Pn10, Pn16, Pn25
Port Ningbo, China Driving Mode Manual
Function Blow-Down Valve Transportation Ocean, Land, Air
Standard     DIN, ANSI, BS, JIS Place of Origin China Mainland
Color White, Gray, Blue, Brown and Others Application Industrial Usage, Water Industrial Usage, Household Usage

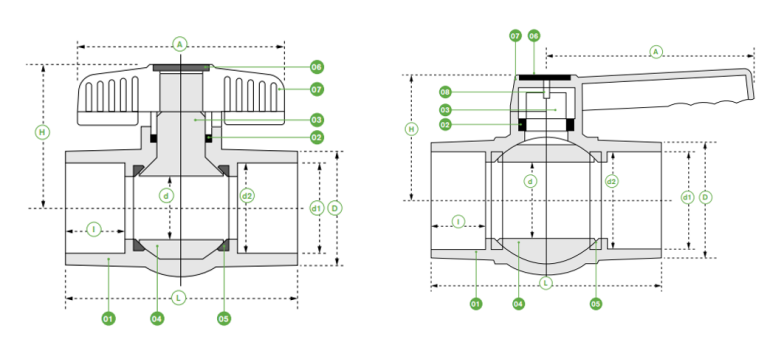

2. Product Parameters

NO. PART MATERIAL QTY
1 BODY UPVC, CPVC 1
2 STEM O-RING EPDM,FPM (NBR) 1
3 STEM     UPVC, CPVC 1
4 BALL UPVC, CPVC 1
5 SEAT SEAL TPE,TPV,TPO 2
6 CAP PVC, ABS     1
7 HANDLE PVC, ABS 1
8 SCREW SS304,STEEL 1



Model DN 15 20 25 32 40 50 65 80 100
SIZE 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
QX02 thd./in WEIGHT(g) 61 88 140 248 315 525 982 1460 2720
NPT 14 14 11.5 11.5 11.5 11.5 8 8 8
BSPT 14 14 11 11 11 11 11 11 11
JIS l 20 23 25 27 31 34 45 50 55
d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
ANSI l 20 23 25 27 31 34 45 50 55
d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
DIN l 20 23 25 27 31 34 45 50 55
d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
d2 20 25 32 40 50 63 75 90 110
d 15 19 24 30 34 45 55 70 85
H 37 55 66 73 81 91 99 121 134
A 68 80 94 100 110 136 170 210 236
L 77 91 103 111 123 146 178 210 255
D 30 35.5 43 52 62 75 91 106 130



3. Product Packaging

In order to allow customers to receive our Intact PVC ball valves. we use high-quality cartons, and we will also take photos for you to confirm before shipping. Of course, if you also want to see the entire production process, we can fully provide more details with openness and transparency. And if you have any comments, we will promptly make improvements in accordance with your requirements.




4. Product Advantages

  • Because of its compact structure, its fluid resistance is very small.

  • The torque is small and the operation is very convenient.

  • The structure is simple and the application field is very broad.

  • Good Stem O-ring and seat seal make the PVC ball valve have good Tightness and will not leak water.

  • The handle is detachable, you can replace or customize the handle according to your needs.

  • Our PVC ball valves use 100% raw materials and undergo strict inspections before leaving the factory, so you don't have to worry about the quality of the ball valves.

  • We have cooperated with importers all over the world for many years, and we are very experienced in the field of international trade. Whether you are importing from China for the first time or have import experience, as long as you have any questions, our customer service and consultant team can solve them for you.

  • In order to meet the diversified needs of customers, we have established our own R&D team. If you need to customize the PVC ball valve, please feel free to contact us.



5. Conclusion

Because we have optimized the entire production process, the quality of the compact PVC ball valve is guaranteed. If you are interested, you can send us an email to learn more details, and we can also provide you with free samples.



RELATED PRODUCTS

PVC Foot Valve (Socket & Thread)

Octagonal Ball Valve

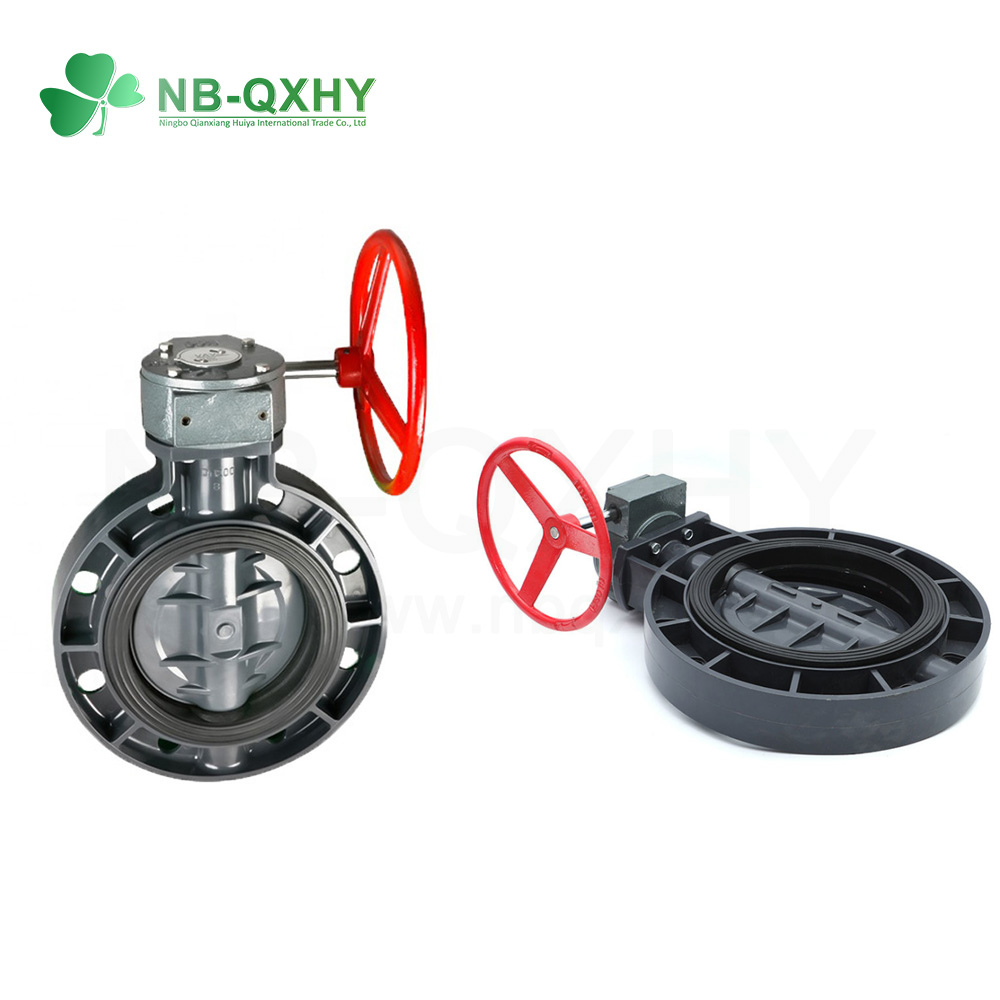

Gear Type Butterfly Valve
