PVC check valve

We are a professional manufacturer of plastic valve and pipe fittings. PVC check valve is one of our most popular products all over the world. Our PVC check valves play an important role in many fields, such as water supply, irrigation, wastewater treatment, swimming pools, water parks, etc.

PVC Check Valve

PVC Wafer Check Valve

PVC Check Valve Manufacturer

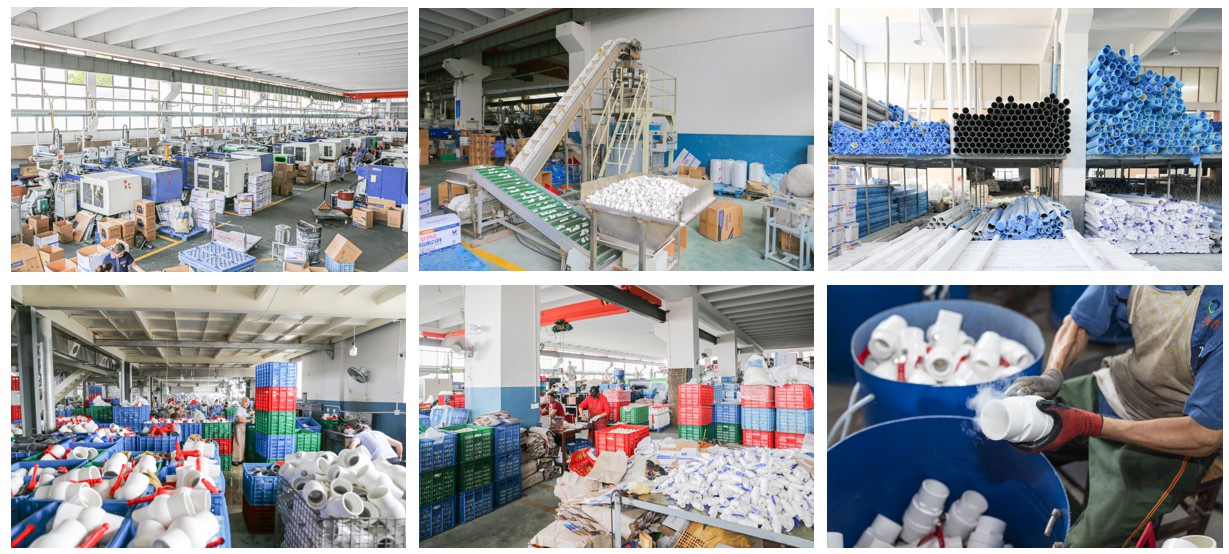

We are a Chinese manufacturer with more than ten years of export experience. We mainly produce plastic valves and pipe fittings. In many years of business, we have made friends from all over the world, and we are very grateful to these partners who have been with us. Because of your support, we can develop so fast. In addition, there are new customers working with us every year. Thank you so much for your trust! Because we know that trust is the first step to establish a cooperative relationship. If you do not know us, we welcome you to browse our website, click here to learn more.




Introduction of PVC Check Valve



A PVC check valve is a valve used to prevent the medium in the pipeline from flowing back and to ensure the safety of pipeline equipment.


Product name PVC Check Valves    Color As Customer Require
Main Material Plastic, PVC, UPVC   Main Market Southeast Asia, The Middle East, North Africa, South America
Size 1/2''-4''   Certificate ISO SGS
End Connection Socket/Thread   Port    Ningbo/Shanghai
Working Pressure PN6 / PN10/PN16   Lead Time  25-50 days
Standard DIN/ ANSI /BS/ JIS /CNS   Sample Free



Features of PVC Check Valve

● Complete size available, EPDM rubber ring;
● Anti-aging, service life up to 5 years;
● Affordable and 100% new material manufacturing;
● Accept OEM customer service;
● Fast delivery time and rich export experience;
● The product is easy to install, saving costs for customers;
● Environmental protection, non-toxic and tasteless, and can be recycled;
● We have mature R&D capabilities and have been manufacturing PVC check valves for the world for more than 15 years;
● Individualized packaging, complete standards, and threading can be processed.

PVC Check Valve Parameters

Size G/PCS PCS/CTN CBM Packing Size(cm) G.W
(KG)
1/2" 118 98 0.03 39.5 39.5 21 12.56
3/4" 183 72 0.04 40 40 24 14.18
1" 285 72 0.06 46 46 26.8 21.52
1-1/4" 422 50 0.06 46 46 30.5 22.1
1-1/2" 616 32 0.06 41 41 33.5 20.71
2" 966 32 0.09 49 49 36.54 31.91
2-1/2" 1676 9 0.04 41.5 41.5 25.5 16.08
3" 2706 9 0.07 51 51.5 28.5 25.35
4" 5210 4 0.07 43 43 37.5 21.84
5” 5200 5 0.071 43 43 37.5 27
6” 6500 2 0.071 43 43 37.5 13
8” 13000 2 0.071 43 43 37.5 26



NO. PART Material  QTY
1 Body PVC 1
2 Seal Block PVC 1
3 Seal Center PVC 1
4 Nut PVC 1
5 O-ring NBR/EPDM 3
6 Spring SS316 & 304 1
7 End Connector PVC 1



SIZE  DIN(MM) BS(MM) JIS(MM) ANSI(MM) NPT THREADED BSPT THREADED
DN15 (1/2") 20 21.5 22.11 21.6 14 14
DN20 (3/4") 25 26.9 26.13 26.9 14 14
DN25 (1") 32 33.7 32.16 33.8 11.5 11
DN32( 1 1/4") 40 42.2 38.19 42.4 11.5 11
DN40(1 1/2") 50 48.4 48.21 48.5 11.5 11
DN50 (2") 63 60.5 60.25 60.7 11.5 11
DN65( 21/2") 75 75.3 76.6 73.4 8 11
DN80 (3") 90 89 89.6 89.4 8 11
DN100 (4") 110 114.5 114.7 114.8 8 11
DN125(5”) 194     187
DN150 (6”) 218.9     219
DN200 (8”) 282     265

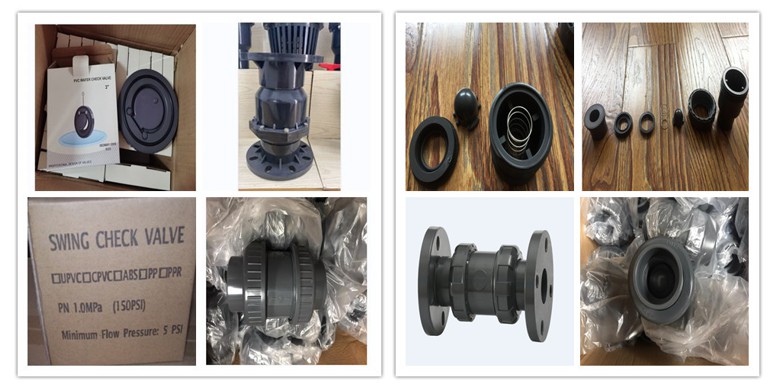

The Packaging of PVC Check Valve

We provide the carton, polybag, color box or customized. Our packaging is of high quality, which can ensure that the PVC check valve will not be damaged during long-distance transportation.
