PPR pipe fittings

PPR pipe fittings have good performance, for example, it is not easy to be corroded by chemical media, not easy to rust, not easy to breed bacteria, and can be very suitable for cold and hot water systems. Besides, its inner wall is smooth, lightweight, impact-resistant, and complies with drinking water standards.

PPR pipe and fittings series

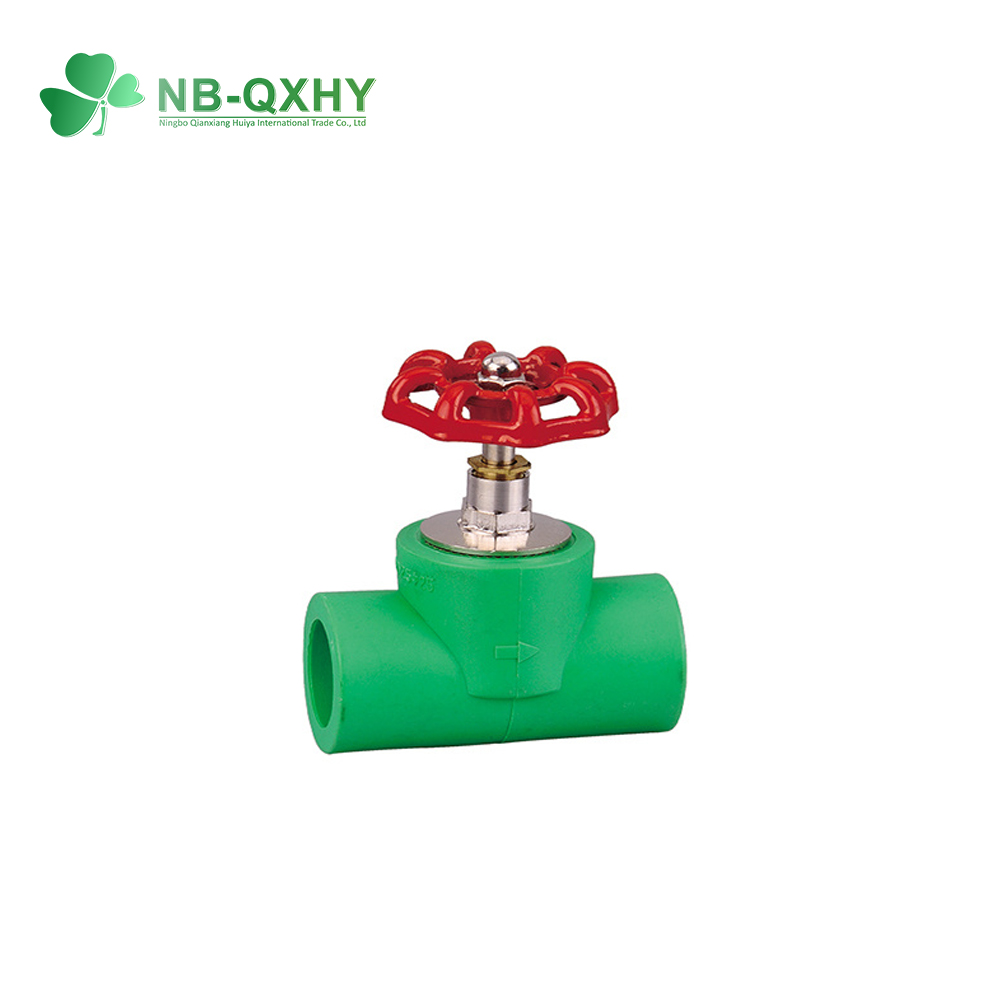

PPR New Luxurious Stop Valve

PPR Heavy Stop Valve

PPR Male Tee

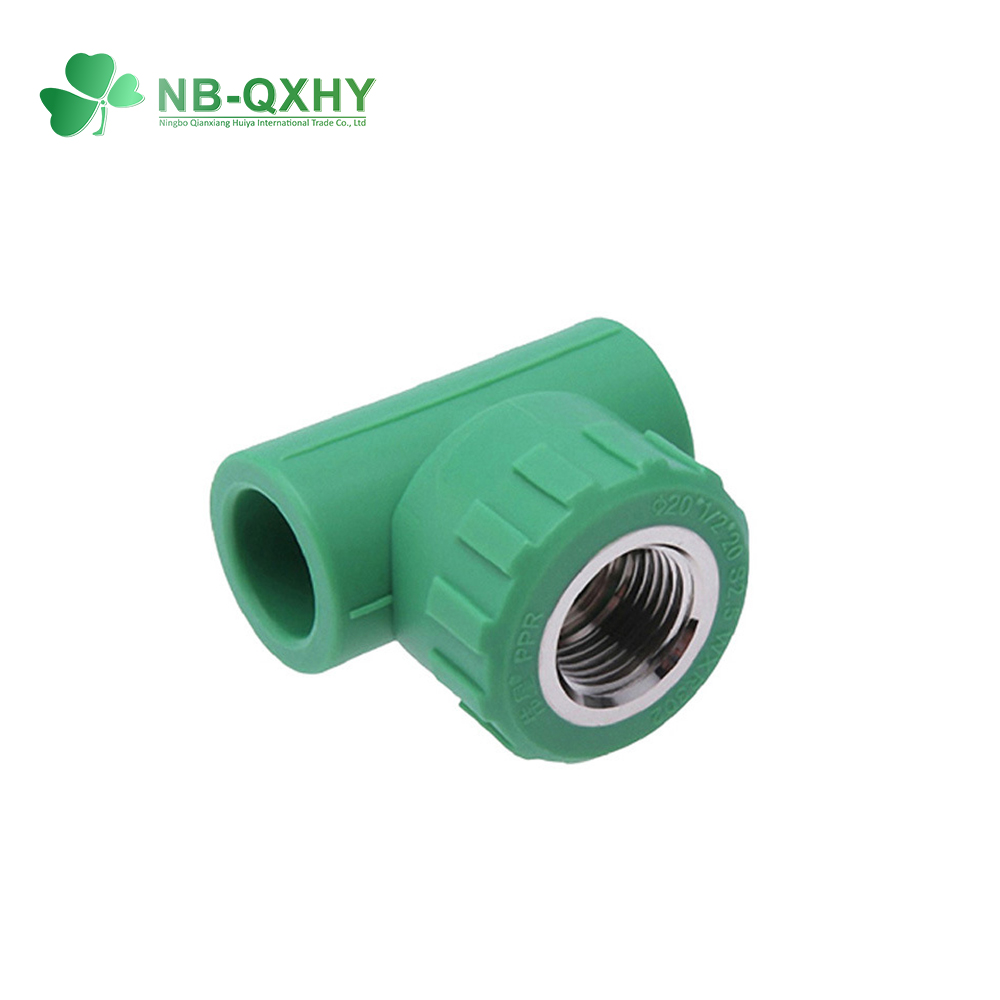

PPR Female Tee

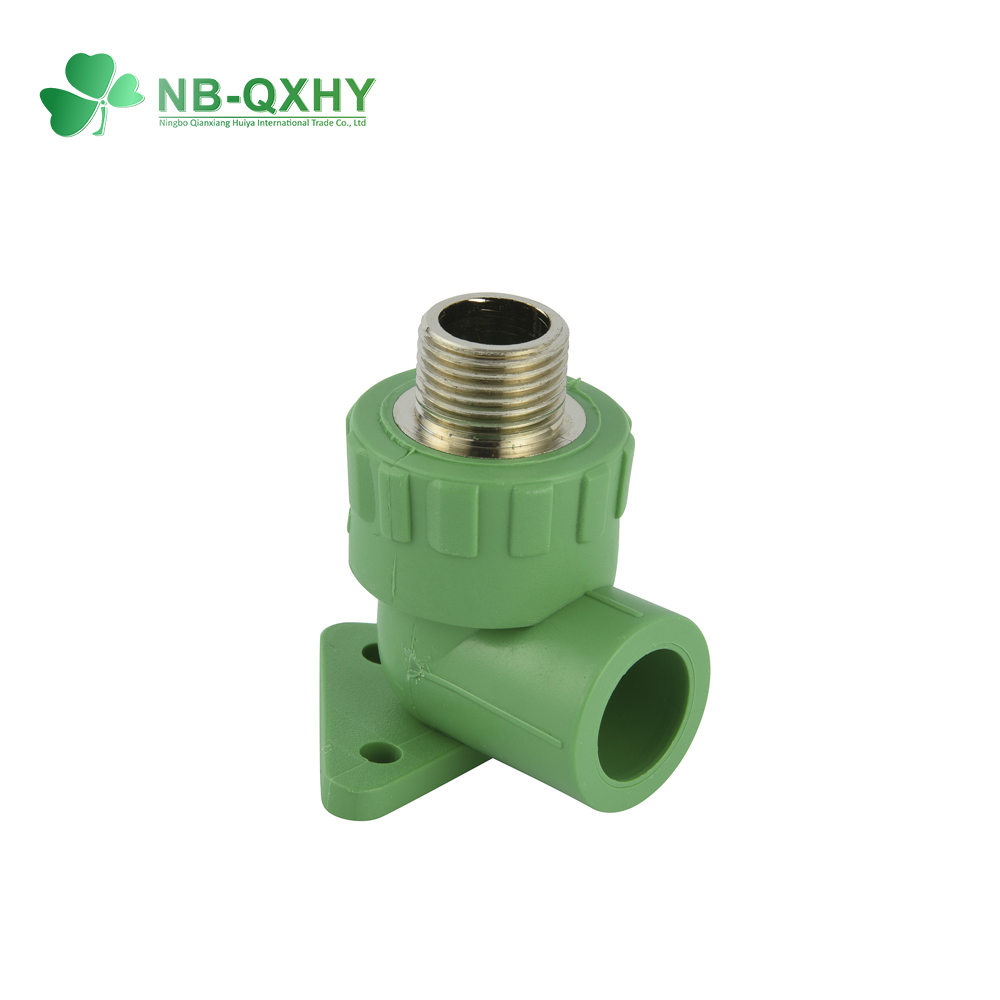

PPR Male Elbow with Pedestal

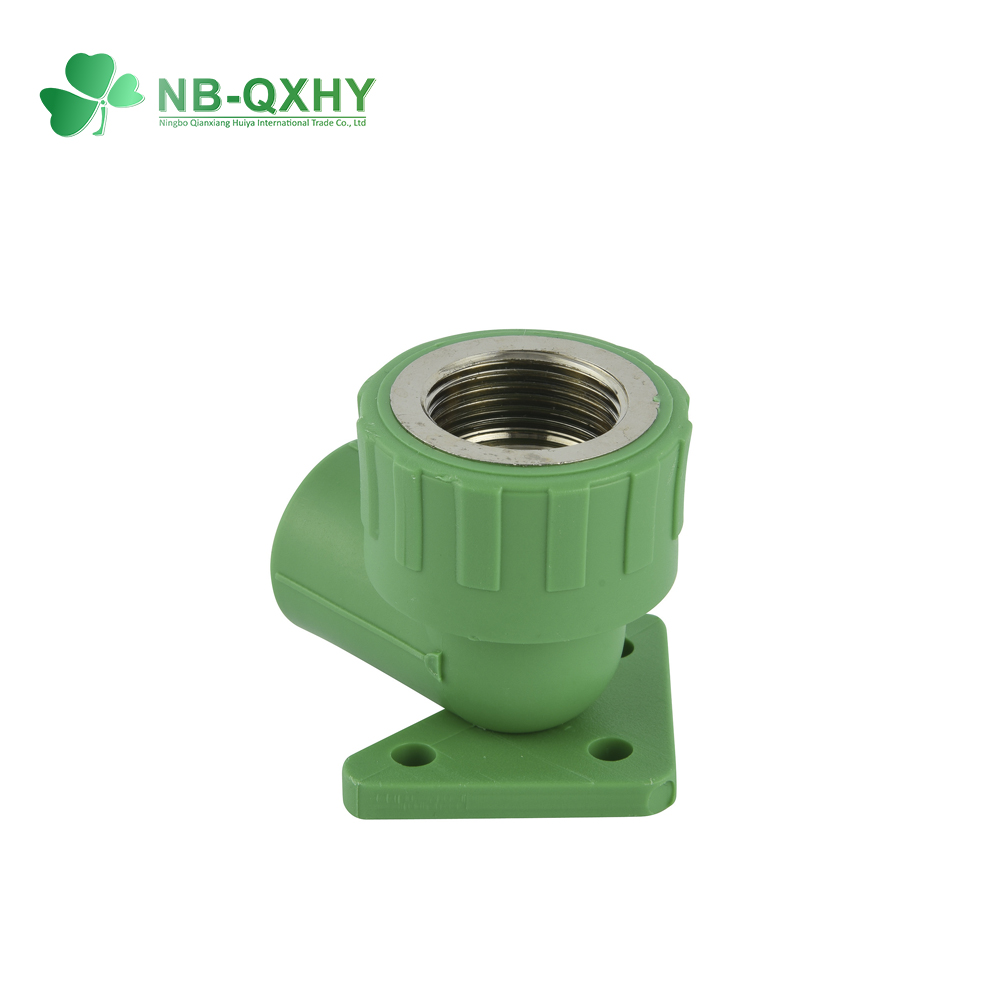

PPR Female Elbow with Pedestal

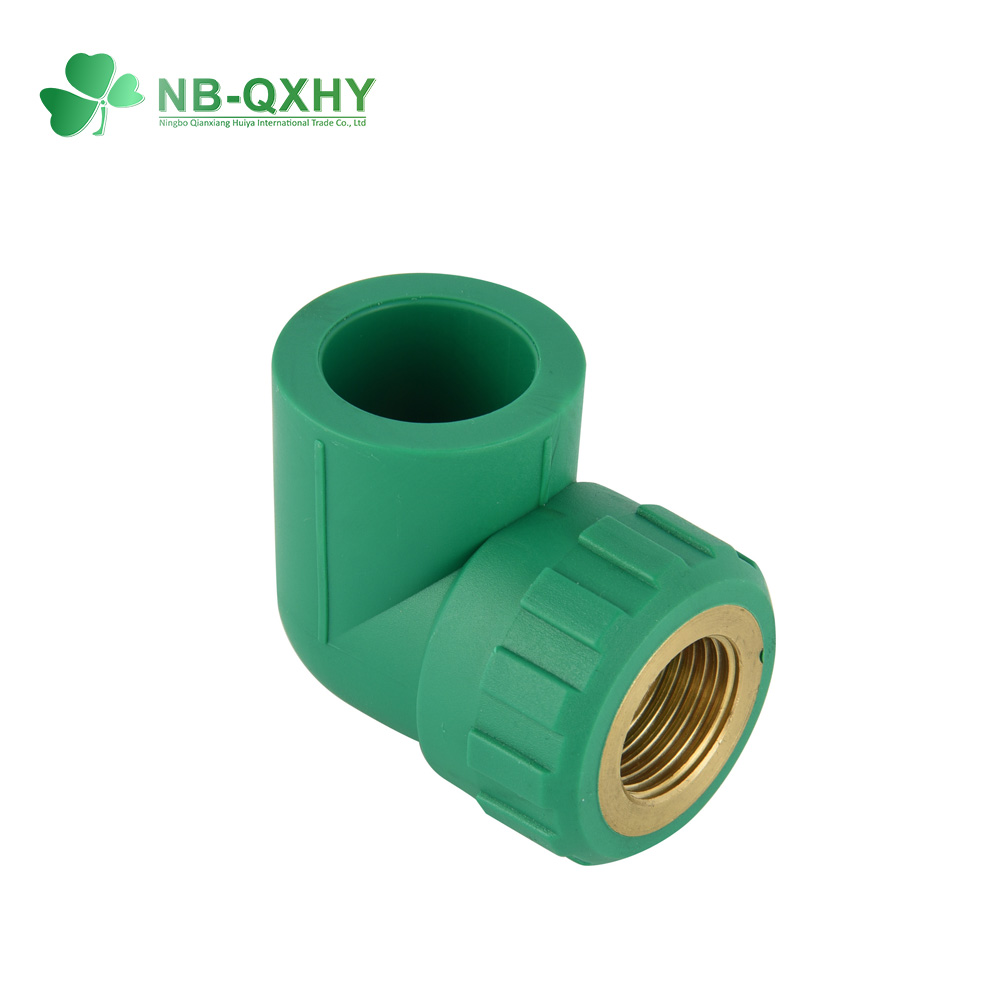

PPR Female Elbow

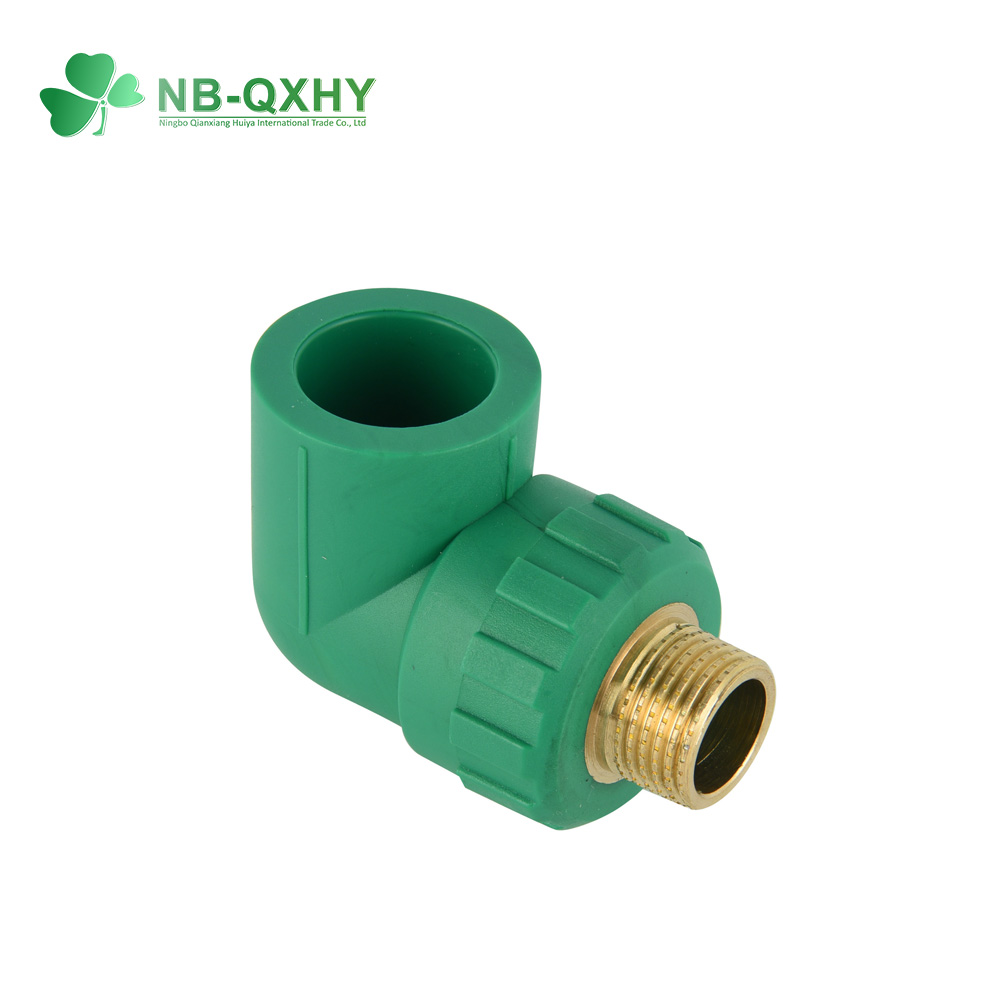

PPR Male Elbow

1. Product Information

Product Name PPR Pipe Fittings   Color Normal Green, White, Gary, or Customized
Main Material PPR Temperature (-40)ºC+ 100ºC
Size 20-160mm Packing Standard Export Packaging or as Your Request
Main Market Southeast Asia, The Middle East, Africa Use Water Supply
Connection Welding Origin Ningbo, Zhejiang, China
Customized Support OEM, ODM Port    Ningbo/Shanghai
Standard GB, DIN Lead Time  25-50 Days
Certificate ISO, CE Sample Free

2. Product Parameters

PPR pipe fittings is a very popular product in our factory. The sizes are quite complete. Please check our product size chart, and tell us what size do you want, or if you have any questions.



Name Size(MM)
Coupling 20, 25, 32, 40, 50, 63, 75, 90, 110, 160
90dge Elbow 20, 25, 32, 40, 50, 63, 75, 90, 110,160
45dge Elbow 20, 25, 32, 40, 50, 63, 75, 90, 110, 160
Tee 20, 25, 32, 40, 50, 63, 75, 90, 110,160
Plug 1/2'', 3/4'', 1”
Female Coupling 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2'', 75X2-1/2'', 90X3'', 110X4''
Male Coupling 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2'', 75X2-1/2'', 90X3'', 110X4''
Female Elbow 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2''
Male Elbow 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2''
Reducing Tee 25X20X25, 32X20X32, 32X25X32, 40X20X40, 40X25X40, 40X32X40, 50X20X50, 50X25X50, 50X32X50, 50X40X50, 63X20X63, 63X25X63, 63X32X63, 63X40X63, 63X50X63, 75X20X75, 75X25X75, 75X32X75, 75X40X75, 75X50X75,
Union 20, 25, 32, 40, 50, 63
Female Tee 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2''
Male Tee 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2''
Flange Set 40, 50, 63, 75, 90, 110, 160
Long Elbow 20, 25, 32, 40
Ball Valve 20, 25, 32, 40, 50, 63
Short Bypass Bend 20, 25, 32
Equal Tee 20, 25, 32, 40, 50, 63
Reducing Elbow 25X20, 32X20, 32X25, 40X20, 40X25, 40X32, 50X20, 50X25, 50X32, 50X40, 63X20, 63X25, 63X32, 63X40, 63X50
Reducing Socket 25X20, 32X20, 32X25, 40X20, 40X25, 40X32, 50X20, 50X25, 50X32, 50X40, 63X20, 63X25, 63X32, 63X40, 63X50, 75X20, 75X25, 75X32, 75X40, 75X50, 75X63, 90X20, 90X25, 90X32, 90X40, 90X50, 90X63, 90X75, 110X20, 110X25, 110X32, 110X40, 110X50, 110X63, 110X75, 110X20, 110X90, 160X110
Female Elbow with Pedestal 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4''
Male Elbow with Pedestal 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4''
Heavy Stop Valve 20, 25, 32, 40, 50, 63, 75, 90
New Luxurious Stop Valve 20, 25, 32



3. Product Package

For PPR packaging, we provide cartons, polybags, color boxes or customized. If you have any requirements for packaging, please contact us.



4. Our Certificates

5. Our Factory

Our factory has more than ten years of experience in the production and export of plastic valve/pipe fittings. In addition, with the development of the company, our order volume has increased year by year, so we have optimized our production tools, production technology, and production procedures, greatly improving our production efficiency and greatly shortening the delivery time of orders. If you are interested in our factory, welcome to visit our factory in China.
