All Type PVC Ball Valve
All Type PVC Ball Valve
Media: Water
Material: PVC
Connection Form: Socket & Threaded
Driving Mode: Manual
Pressure: Medium Pressure
Brand: NBQXHY
Size: All Size Available
We have all types of plastic valves. For example, compact ball valve, octagonal ball valve, true union ball valve, butterfly valve, two-piece ball valve, check valve, foot valve. We can customize their color, material, and packaging. If you want to wholesale PVC ball valve from China, please click the button below to send inquiry.
PRODUCT DESCRIPTION
PVC ball valve is a type of valve that allows control over the flow of fluid (open / close) in the pipes.
1. PVC Ball Valve Manufacturer
We are a China manufacturer specializing in the production and export of plastic valves and pipe fittings. We have more than ten years of experience in this industry. We cooperate with companies around the world to produce and export different types of plastic ball valves and pipe fittings for them. In addition, we also provide other additional services, such as integrated procurement services. Besides, for the specific needs of customers, we also provide customized services. If you want to learn more about us, go here.
2. PVC Ball Valve Information
You can almost see all types of ball valves we produce here. Of course, there are still many styles that have not been shown.
| Payment Terms | L/C, T/T, Western Union, Paypal | Package | Carton, Color Box, or Customized | |
| MOQ | Negotiable | Size | 1/2″, 3/4″, 1″, 11/4″, 11/2″, 2″, 21/2″, 3″, 4″ | |
| Lead Time | 25-35 days | Nominal Pressure | Pn10, Pn16, Pn25 | |
| Port | Ningbo, China | Driving Mode | Manual | |
| Function | Blow-Down Valve | Transportation | Ocean, Land, Air | |
| Standard | DIN, ANSI, BS, JIS | Place of Origin | China Mainland | |
| Color | White, Gray, Blue, Brown and Others | Application | Industrial Usage, Water Industrial Usage, Household Usage |
3. PVC Ball Valve Parameters
Our plastic ball valves are manufactured according to strict standards. And we provide various styles of plastic valves. Here, we show the most common plastic ball valves for reference.
If you want to wholesale PVC ball valves or get more details about other types, size, color, handle, connection form, price list, etc, please feel free to contact us.
| NO. | PART | MATERIAL | QTY |
| 1 | BODY | UPVC, CPVC | 1 |
| 2 | STEM O-RING | EPDM,FPM (NBR) | 1 |
| 3 | STEM | UPVC, CPVC | 1 |
| 4 | BALL | UPVC, CPVC | 1 |
| 5 | SEAT SEAL | TPE,TPV,TPO | 2 |
| 6 | CAP | PVC, ABS | 1 |
| 7 | HANDLE | PVC, ABS | 1 |
| 8 | SCREW | SS304,STEEL | 1 |
| Model | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| SIZE | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ | ||
| QX02 | thd./in | WEIGHT(g) | 61 | 88 | 140 | 248 | 315 | 525 | 982 | 1460 | 2720 |
| NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 | ||
| BSPT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | ||
| JIS | l | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | |
| d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 | ||
| d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | ||
| ANSI | l | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | |
| d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 | ||
| d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | ||
| DIN | l | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | |
| d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.3 | 90.3 | 110.4 | ||
| d2 | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110 | ||
| d | 15 | 19 | 24 | 30 | 34 | 45 | 55 | 70 | 85 | ||
| H | 37 | 55 | 66 | 73 | 81 | 91 | 99 | 121 | 134 | ||
| A | 68 | 80 | 94 | 100 | 110 | 136 | 170 | 210 | 236 | ||
| L | 77 | 91 | 103 | 111 | 123 | 146 | 178 | 210 | 255 | ||
| D | 30 | 35.5 | 43 | 52 | 62 | 75 | 91 | 106 | 130 | ||
4. PVC Ball Valve Packaging
To avoid our PVC ball valves being damaged during transportation, we use high-quality boxes for packaging. In addition, we also provide color boxes. The exquisite packaging can greatly improve the recognition of products and improve your business.

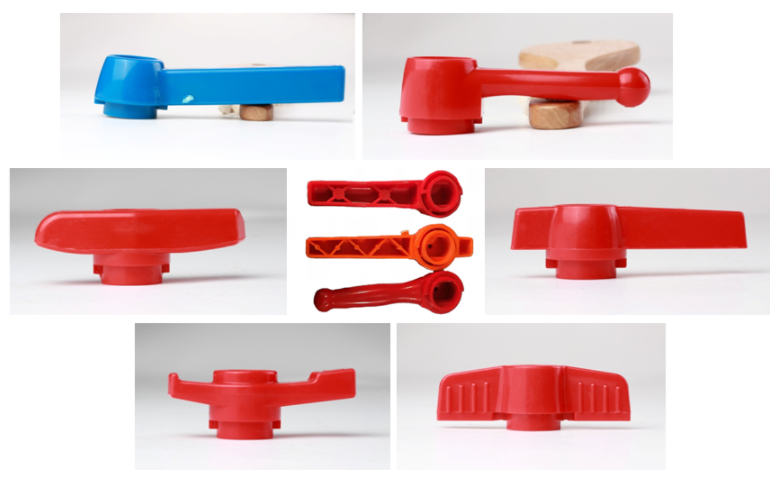

5. PVC Ball Valve Handle
The handle plays a very important role in embodying the uniqueness and usability of the PVC ball valve. Many customers have specific requirements for handles. We not only have a variety of styles of handles for you choose, but we can also engrave marks on the handles, or customize the handles according to your needs.

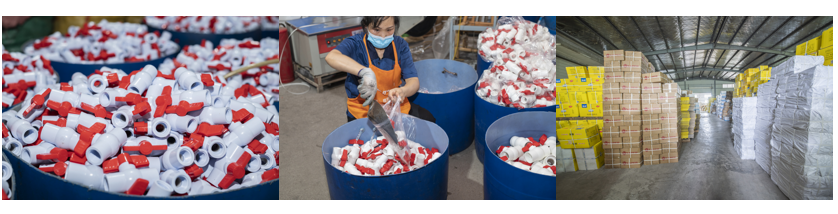

6. PVC Ball Valve Manufacturing Process
We have rich experience in the production and export of plastic ball valves, and we have perfected the entire production process, which greatly improved our work efficiency. This is reflected in our delivery date-our delivery time of 25-50 days is much better than other factories (3-6 months).
7. Custom PVC Ball Valves
As an experienced and service-oriented manufacturer, we are well aware of our customers’ needs for customized PVC ball valves. In some special application scenarios, unconventional PVC ball valves may be required. In addition, the packaging, size, thickness, brand logo, etc. of the product sometimes need to be customized.
In short, different customers may have different requirements for products, which tests the customization capabilities of manufacturers and factories. If you want to find a manufacturer that can meet your customization needs, please contact us.
8. Our Certifications
9. Conclusion
Plastic ball valve is one of our main products. We have done very well in the optimization of the production process and quality control. In order to increase the trust between us, We sincerely welcome friends from all over the world to come to China for factory inspection. Of course, because of the COVID-19, many customers are unable to go abroad. In order to help you truly understand us, we have created a YouTube channel. If you are interested, you can watch our video online.
10. Why Choose Us
1. Are you a manufacturer or a trading company?
We are the manufacturer and have our own factory.
2. What’s your price?
According to the different products, materials, sizes, and even MOQ, our prices are different. Anyway, our price is very competitive. Please contact me if you want to get the latest price list.
3. Do you accept OEM?
Yes, we accept OEM. We will engrave trademarks, laser print trademarks, and provide color box packaging, color box design, packaging design, pallet service, and product material formulas according to customer needs. The product material formula can also be replaced according to different usage requirements.
4. Do you provide a sample?
We provide free samples.
5. Do you have a MOQ?
Yes, 10 boxes each size, or adjust according to the overall order quantity. If you have other questions, don’t worry, please email us, we can provide you with the best solution.
6. Can you provide related documents?
Yes, we can provide certificate files if you need them. Of course, you also can download our documents.
7. How long is your lead time?
The range of our lead time is 25-50 days. It depends on your requirement.
8. How about the shipping fees?
We supply express delivery, Air transport, sea shipment to the port, door to door service. We will professionally compare sea freight for the customers to choose. For large quantities of orders, sea freight is the best choice. Please tell me the products and quantity you need, so that we can provide you with the most affordable shipping plan.
9. What payment terms do you accept?
L/C, T/T, Western Union, Paypal are available.
10. Do you have a customized service?
Yes, I will customize products according to customer needs.
We have a lot of customized project cases, please contact me to learn more details.
11. How can I contact you?
Email: sales@nbqxhy.com
WhatsApp/WeChat: +86-18867873336
If you want to see our other PVC ball valves, please click here!
