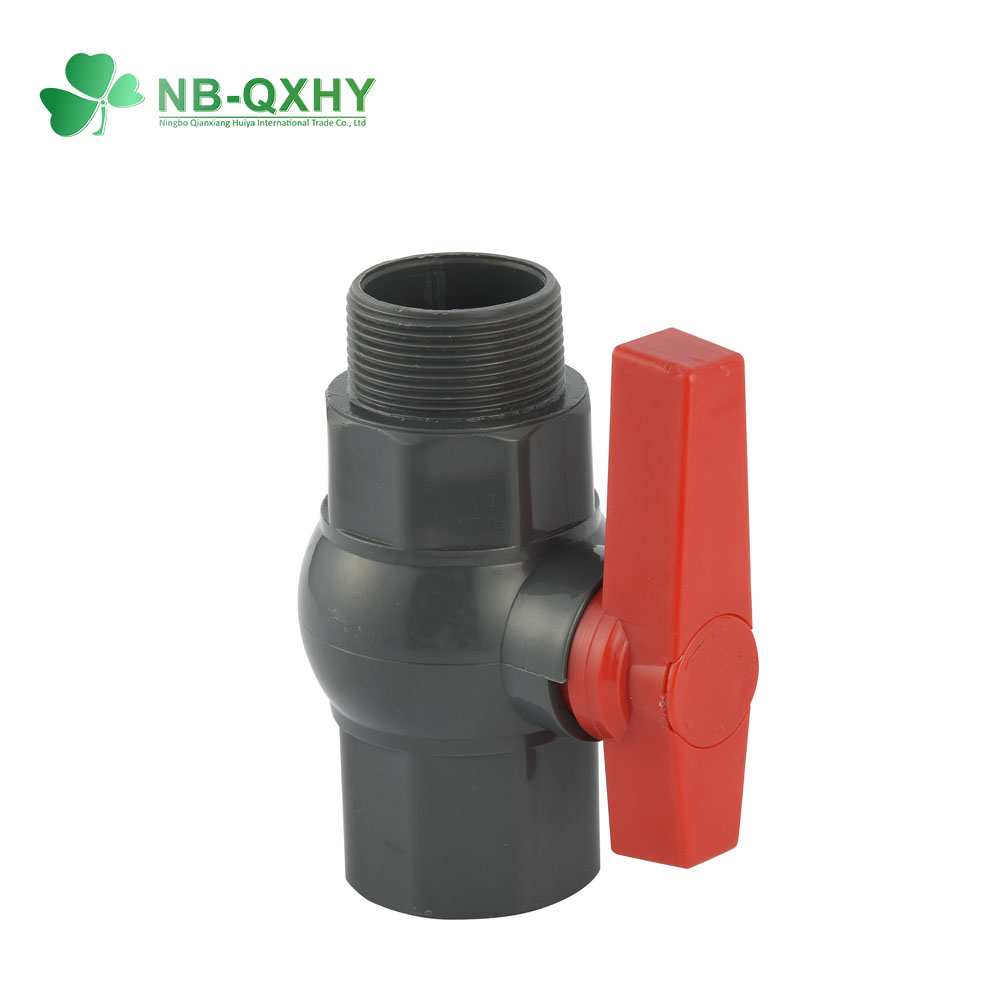

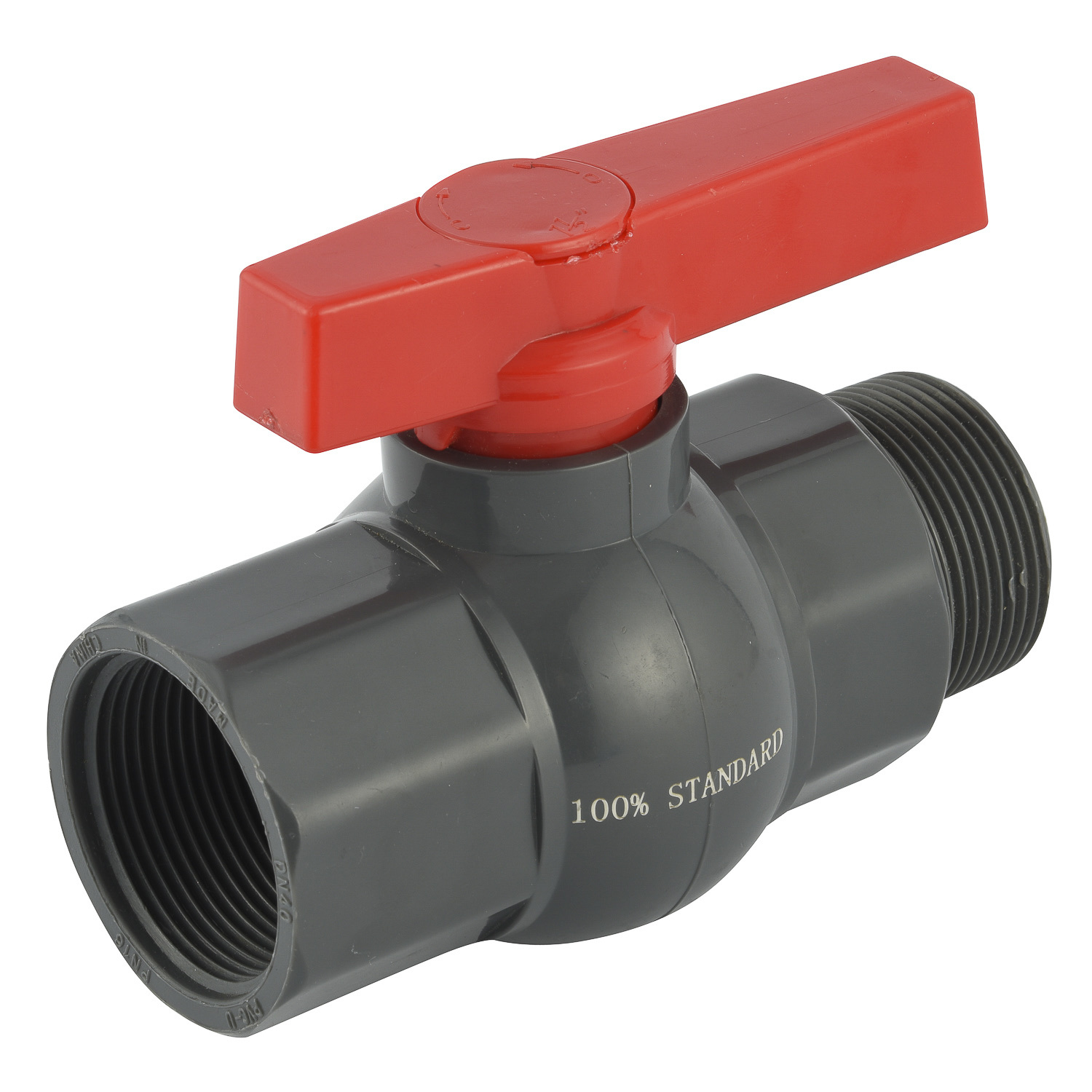

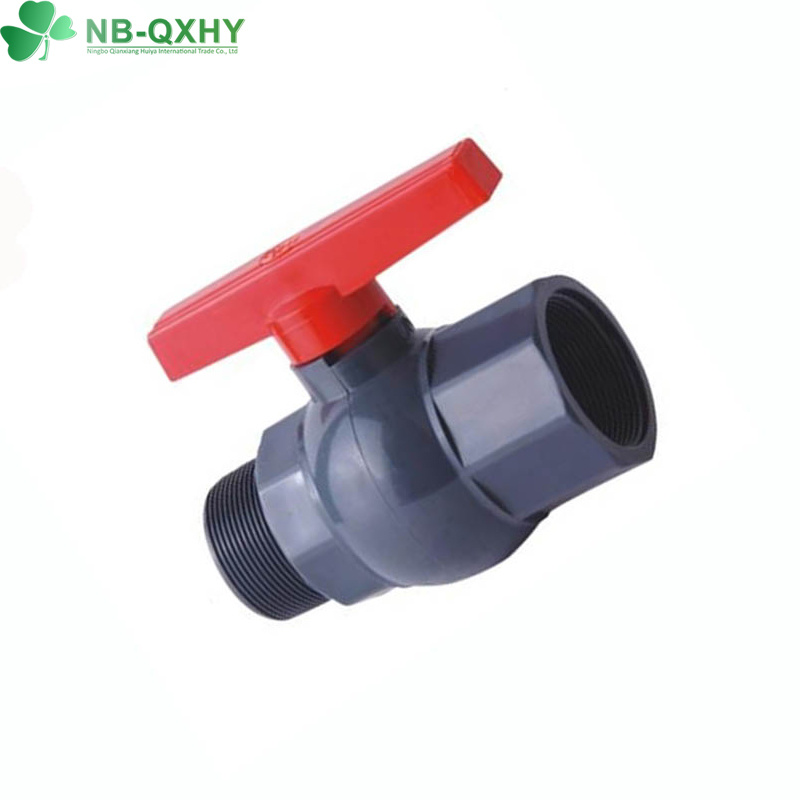

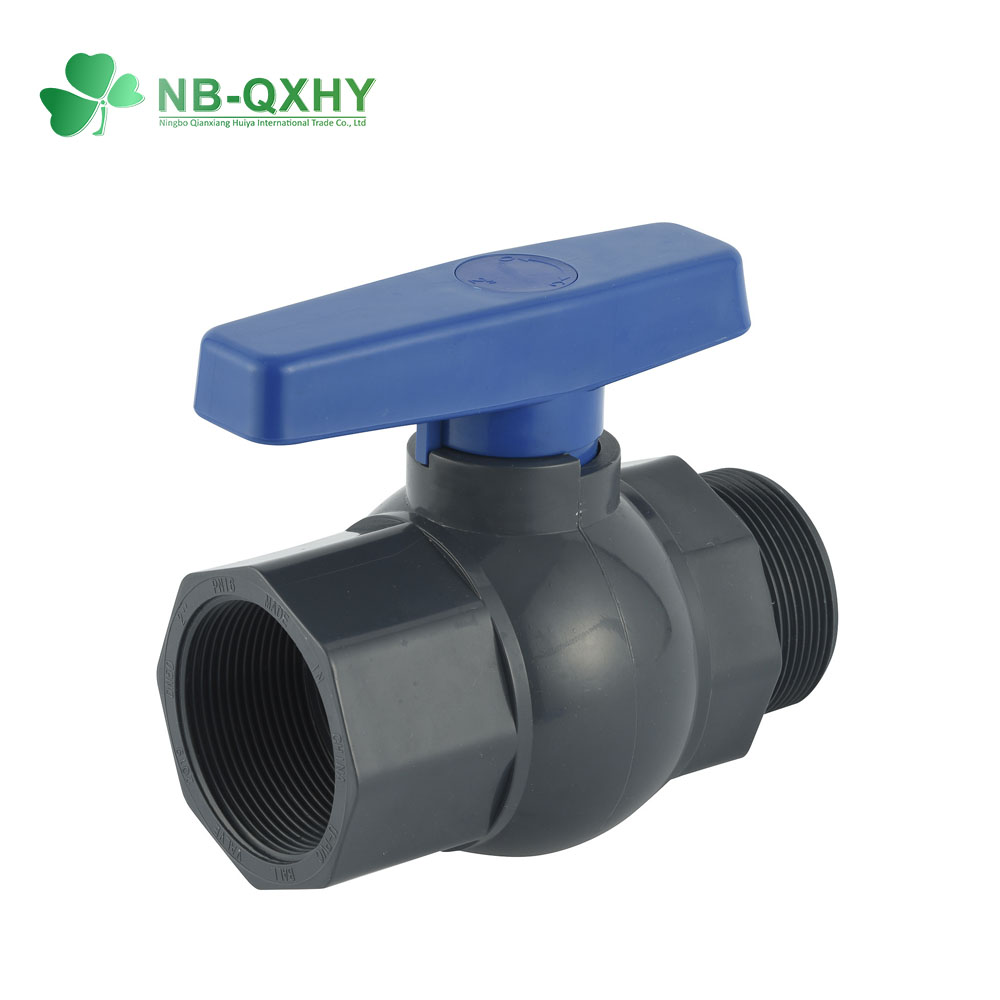

Male Female Thread Ball Valve

Male Female Thread Ball Valve

Media: Water

Material: PVC, Plastic

Connection Form: Thread

Driving Mode: Manual

Structure: Fixed Ball Valve

Temperature: Normal Temperature

Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"


All our ball valves have been strictly inspected for airtightness, so we can ensure that the ball valves will not leak water during operation. The raw material of the male female thread ball valve is PVC, which can well ensure the corrosion resistance and service life of the ball valve.



PRODUCT DESCRIPTION

1. Product Information



Product Name  Male Female Thread Ball Valve   Color Customized
Main Material PVC   Place of Origin Zhejiang, China
Size 1/2" to 4"    Packing Carton, Polybag, Color Box, or Customized
Power Manual   Application Swimming Pool, Construction Project, Agricultural Irrigation
End Connection Threaded   Port    Ningbo/Shanghai
Customized Support OEM, ODM   Lead Time  25-35 Days
Standard CNS/JIS/DIN/BS/ANSI/NPT/BSPT   Sample Free
Certificate ISO9001,SGS, GMC, CNAS   Logo Printed or Customized

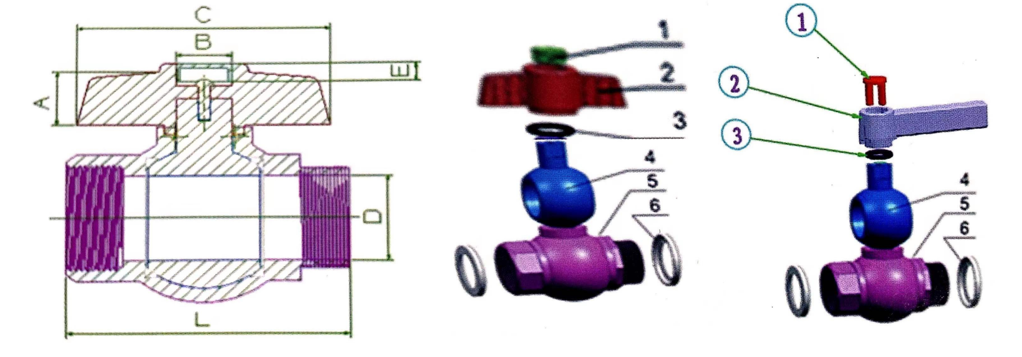

2. Product Parameters




NO. PART MATERIAL
1 CAP PVC, ABS
2 HANDLE PVC, ABS
3 STEM O-RING EPDM,FPM (NBR)
4 BALL UPVC, CPVC
5 BODY UPVC, CPVC
6 SEAT SEAL TPE,TPV,TPO


3. Product Size




SIZE BS ANSI JIS DIN NPT BSPT A B C E L
D D D DIN Thd./in Thd./in mm mm mm mm mm
15mm(1/2") 22 21.34 22 20 14 14 14.4 15.1 66 1.6 77
20mm(3/4") 26 26.67 26 25 14 14 16.3 17.8 75 2.4 82
25mm(1") 34 33.4 32 32 11.5 11 23 20.9 91 2.5 99
32mm(1-1/4") 42 42.16 38 40 11.5 11 25 21 95 2.8 107
40mm(1-1/2") 48 48.26 48 50 11.5 11 28 22.9 105 2.1 117
50mm(2") 60 60.33 60 63 11.5 11 31 23.2 114 2.1 137
65mm(2-1/2") 76 73 76 75 8 11 31.9 18.2 185 2.8 170
80mm(3") 89 88.9 89 90 8 11 31.9 19 208 2.8 208
100mm(4") 114 114.3 114 110 8 11 32.2 26 218 3.2 248
