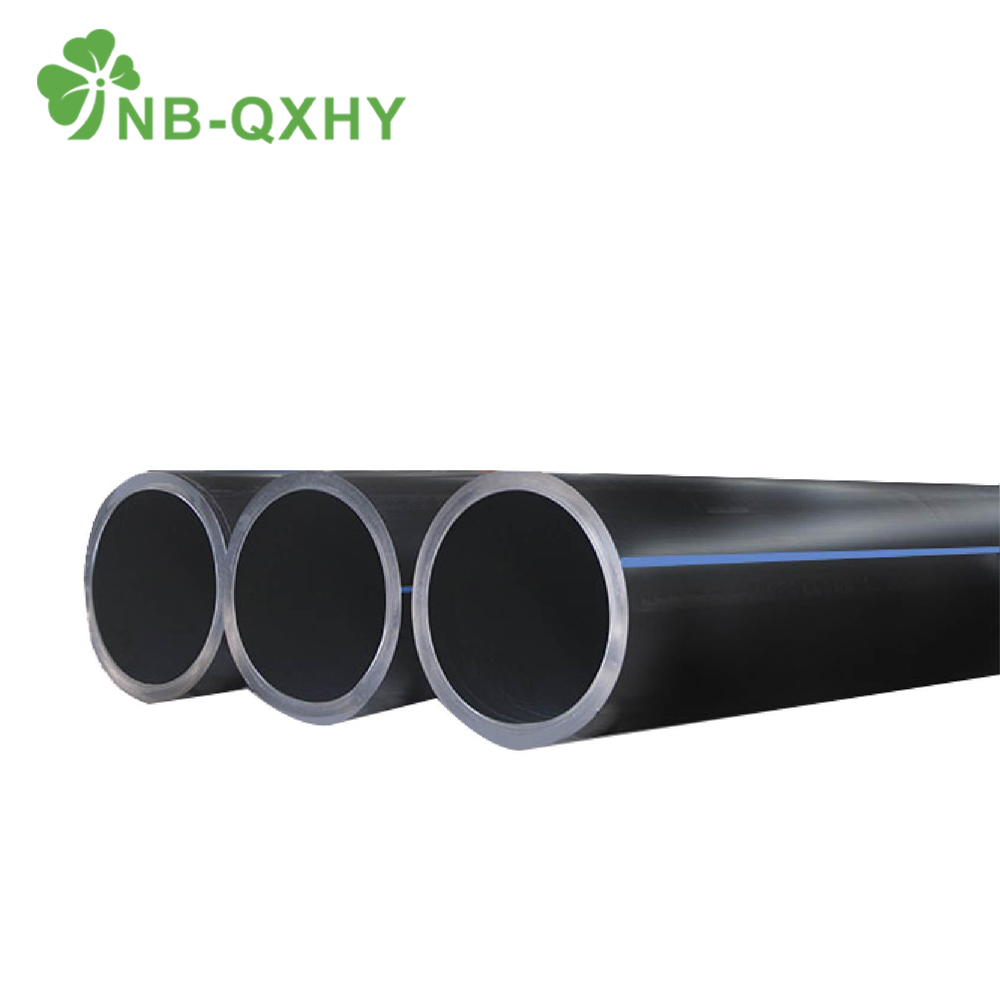

The raw material of HDPE pipe is HDPE, which is the abbreviation of High Density Polyethylene. It has good heat resistance and cold resistance, high chemical stability, toughness, and wear resistance, and can be well applied in various environments.

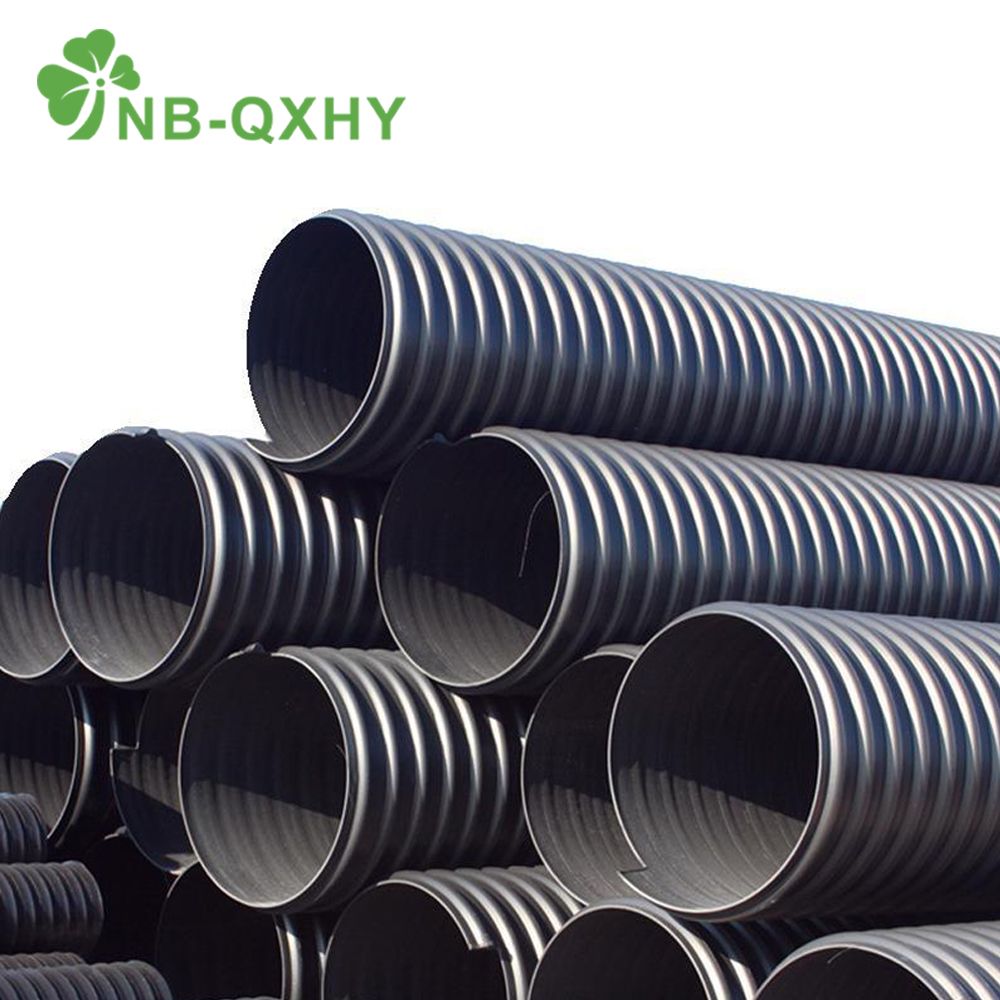

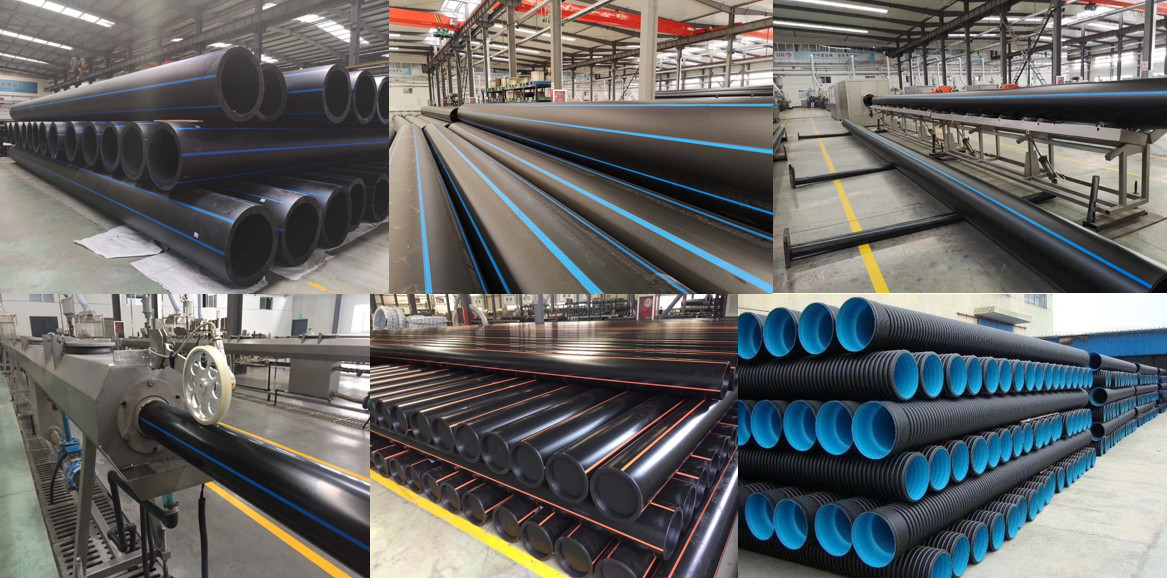

We are a professional plastic valve, pipe, and pipe fittings manufacturer. our factory mainly produced various PVC ball valves, pipes, and fittings for 15 years. HDPE pipes are one of our main products. There are many types of our HDPE pipes, such as: HDPE water supply pipes, HDPE gas pipes, HDPE drainage pipes, HDPE double wall corrugated pipes, HDPE butt fusion fittings, HDPE electrofusion fittings, HDPE mining pipes and more. We welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.
| Product Name | HDPE Pipe | Color | Black with Blue Strip, Blue or Customized | |
| Main Material | HDPE | Pipe Life Span | 50 Years | |
| Size | DN16mm - DN2500mm | Packing | Bulk or Plastic Bags | |
| Main Market | Africa, Southeast Asia, The Middle East, America | Use | Water Supply, Drainage, Irrigation , Sewerage Treatment, Mine And Slurry Pipelines etc | |
| Connection | Socket Fusion, Butt fusion, Electric Fusion | Origin | Ningbo, Zhejiang, China | |
| Customized Support | OEM, ODM | Port | Ningbo/Shanghai | |
| Processing Service | Moulding, Cutting | Lead Time | 25-35 Days | |
| Certificate | ISO, CE | Sample | Available |
| National standard nominal wall thickness of water supply pipe | ||||||||
| Standard size ratio | ||||||||
| SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | |
| PE80 grade nominal pressure Mpa | ||||||||
| 0.32 | 0.40 | 0.50 | 0.60 | 0.80 | 1.00 | 1.25 | 1.60 | |
| PE100 grade nominal pressure Mpa | ||||||||
| 0.40 | 0.50 | 0.60 | 0.80 | 1.00 | 1.25 | 1.60 | 2.00 | |
| DN(mm) | wall thickness | wall thickness | wall thickness | wall thickness | wall thickness | wall thickness | wall thickness | wall thickness |
| 16 | 2.30 | |||||||
| 20 | 2.30 | 2.30 | ||||||
| 25 | 2.30 | 2.30 | 3.00 | |||||
| 32 | 2.30 | 2.40 | 3.00 | 3.60 | ||||
| 40 | 2.30 | 2.40 | 3.00 | 3.70 | 4.50 | |||
| 50 | 2.30 | 2.40 | 3.00 | 3.70 | 4.60 | 5.60 | ||
| 63 | 2.50 | 3.00 | 3.80 | 4.70 | 5.80 | 7.10 | ||
| 75 | 2.90 | 3.60 | 4.50 | 5.60 | 6.80 | 8.40 | ||
| 90 | 3.50 | 4.30 | 5.40 | 6.70 | 8.20 | 10.10 | ||
| 110 | 4.20 | 5.30 | 6.60 | 8.10 | 10.00 | 12.30 | ||
| 125 | 4.80 | 6.00 | 7.40 | 9.20 | 11.40 | 14.00 | ||
| 140 | 5.40 | 6.70 | 8.30 | 10.30 | 12.70 | 15.70 | ||
| 160 | 6.20 | 7.70 | 9.50 | 11.80 | 14.60 | 17.90 | ||
| 180 | 6.90 | 8.60 | 10.70 | 13.30 | 16.40 | 20.10 | ||
| 200 | 7.70 | 9.60 | 11.90 | 14.70 | 18.20 | 22.40 | ||
| 225 | 8.60 | 10.80 | 13.40 | 16.60 | 20.50 | 25.20 | ||
| 250 | 9.60 | 11.90 | 14.80 | 18.40 | 22.70 | 27.90 | ||
| 280 | 10.70 | 13.40 | 16.60 | 20.60 | 25.40 | 31.30 | ||
| 315 | 7.70 | 9.70 | 12.10 | 15.00 | 18.70 | 23.20 | 28.60 | 35.20 |
| 355 | 8.70 | 10.90 | 13.60 | 16.90 | 21.10 | 26.10 | 32.20 | 39.70 |
| 400 | 9.80 | 12.30 | 15.30 | 19.10 | 23.70 | 29.40 | 36.30 | 44.70 |
| 450 | 11.00 | 13.80 | 17.20 | 21.50 | 26.70 | 33.10 | 40.90 | 50.30 |
| 500 | 12.30 | 15.30 | 19.10 | 23.90 | 29.70 | 36.80 | 45.40 | 55.80 |
| 560 | 13.70 | 17.20 | 21.40 | 26.70 | 33.20 | 41.20 | 50.80 | 62.50 |
| 630 | 15.40 | 19.30 | 24.10 | 30.00 | 37.40 | 46.30 | 57.20 | 70.30 |
| 710 | 17.40 | 21.80 | 27.20 | 33.90 | 42.10 | 52.20 | 64.50 | 79.30 |
| 800 | 19.60 | 24.50 | 30.60 | 38.10 | 47.40 | 58.80 | 72.60 | 89.30 |
| 900 | 22.00 | 27.60 | 34.40 | 42.90 | 53.30 | 66.20 | 81.70 | |
| 1000 | 24.50 | 30.60 | 38.20 | 47.70 | 59.30 | 72.50 | 90.20 | |
| 1200 | 29.40 | 36.70 | 45.90 | 57.20 | 67.90 | 88.20 | ||
| 1400 | 34.30 | 42.90 | 53.50 | 66.70 | 82.40 | 102.90 | ||
| 1600 | 39.20 | 49.00 | 61.20 | 76.20 | 94.10 | 117.60 | ||
| 1800 | 43.80 | 54.50 | 69.10 | 85.70 | 105.90 | |||
| 2000 | 48.80 | 60.60 | 76.90 | 95.20 | 117.60 | |||
| 2250 | 55.00 | 70.00 | 86.00 | 107.20 | ||||
| 2500 | 61.20 | 77.70 | 95.60 | 119.10 | ||||

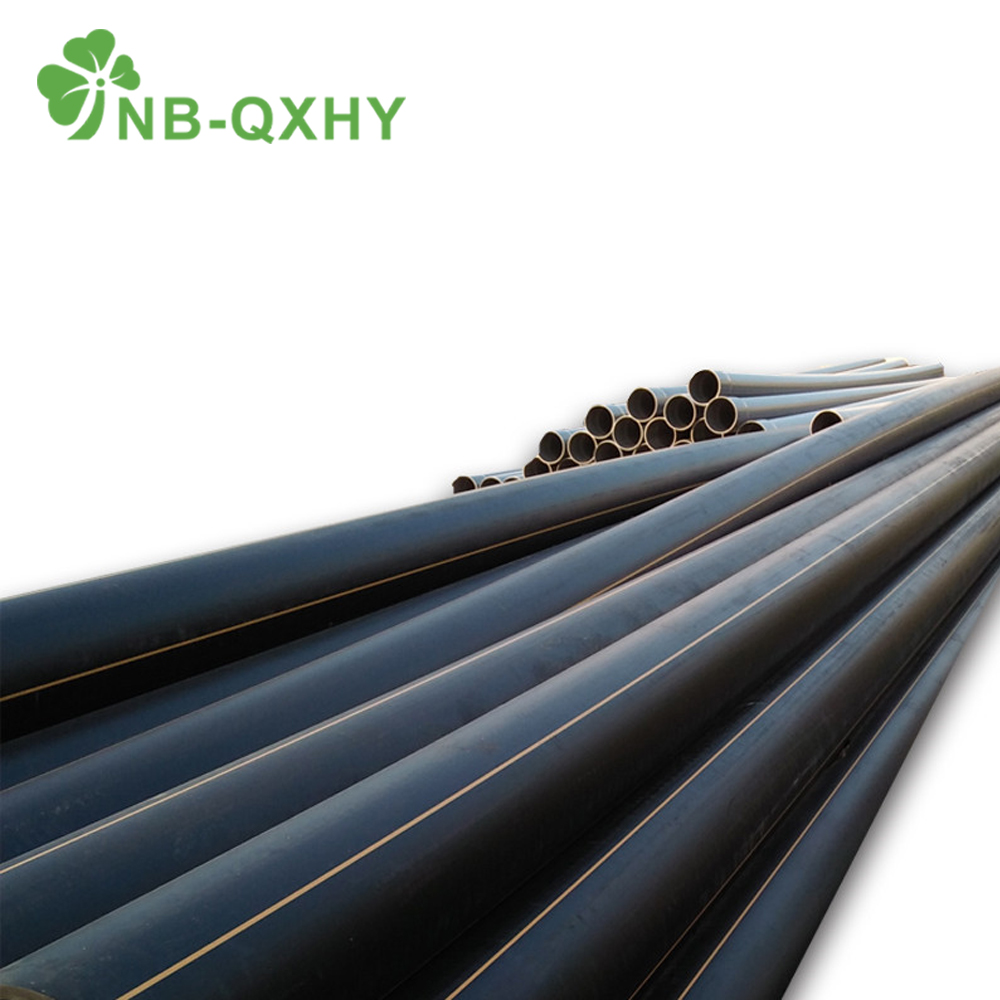

An alternative to PVC and conventional steel pipe is HDPE water supply pipe. The water supply pipe must withstand a particular pressure, so PE resin with a high molecular weight and strong performance, such as HDPE resin, is typically required. HDPE pipes have a good hygiene index, thus drinking water systems frequently use them.
1. HDPE pipe can effectively prevent drinking water pollution because it is sanitary, non-toxic, devoid of heavy metals and additives, difficult to scale and bacterial growth.
2. HDPE pipe has a high pressure bearing capacity and outstanding flexibility. The elongation at break is greater than 500%.
3. The HDPE pipe's connection technique is very versatile and convenient. Depending on the situation, several connection
techniques, such as socket fusion, butt fusion, electric fusion, flange, and so forth, can be utilized. Additionally, because of its strong connection, the pipeline can be guaranteed not to leak.
4. HDPE pipe is highly resistant to corrosion and chemicals. Additionally, the pipe is given carbon black during construction, which significantly reduces the issue of aging brought on by ultraviolet light and extends its lifespan.
5. HDPE pipe has a smooth interior, a low coefficient of friction, and a large conveying capacity.
6. HDPE pipe is inexpensive, light, and simple to install.
1. Drinking water piping system
2. Agriculture and garden irrigation
3. Sewage discharge
4. Desalination and aquaculture projects
5. Raw material conveying
6. Infrastructure, construction projects
1. Are you a manufacturer or a trading company?
We are the manufacturer and have our own factory.
2. What's your price?
According to the different products, materials, sizes, and even MOQ, our prices are different. Anyway, our price is very competitive. Please contact me if you want to get the latest price list.
3. What product does your company produce?
we mainly manufacture kinds of plastic valve and plastic pipe, plastic fittings. We also developing group irrigation products to support sales. In addition, we will open new mold and customized service according to customers' market needs.
4. Do you accept OEM?
Yes, we accept OEM. We will engrave trademarks, laser print trademarks, and provide color box packaging, color box design, packaging design, pallet service, and product material formulas according to customer needs. The product material formula can also be replaced according to different usage requirements.
5. Can you provide related documents?
Yes, we can provide certificate files if you need them.
6. How long is your lead time?
The range of our lead time is 25-50 days. It depends on your requirement.
7. Do you have a customized service?
Yes, I will customize products according to customer needs.
8. Can I be your distributor?
Yes, we are very glad to cooperate with customers all over the world.
9. Where is your company's address?
Our company is located in the Ningbo Zhejiang Province, China.
10. How can I contact you?
You can send us an email at any time to ask any questions, we will reply to you in the shortest possible time.
Email: sales@nbqxhy.com
Phone: +0574-88209527
WhatsApp/WeChat: +86-18867873336
We will contact you within 1 working day, please pay attention to the email with the suffix "@nbqxhy.com".
