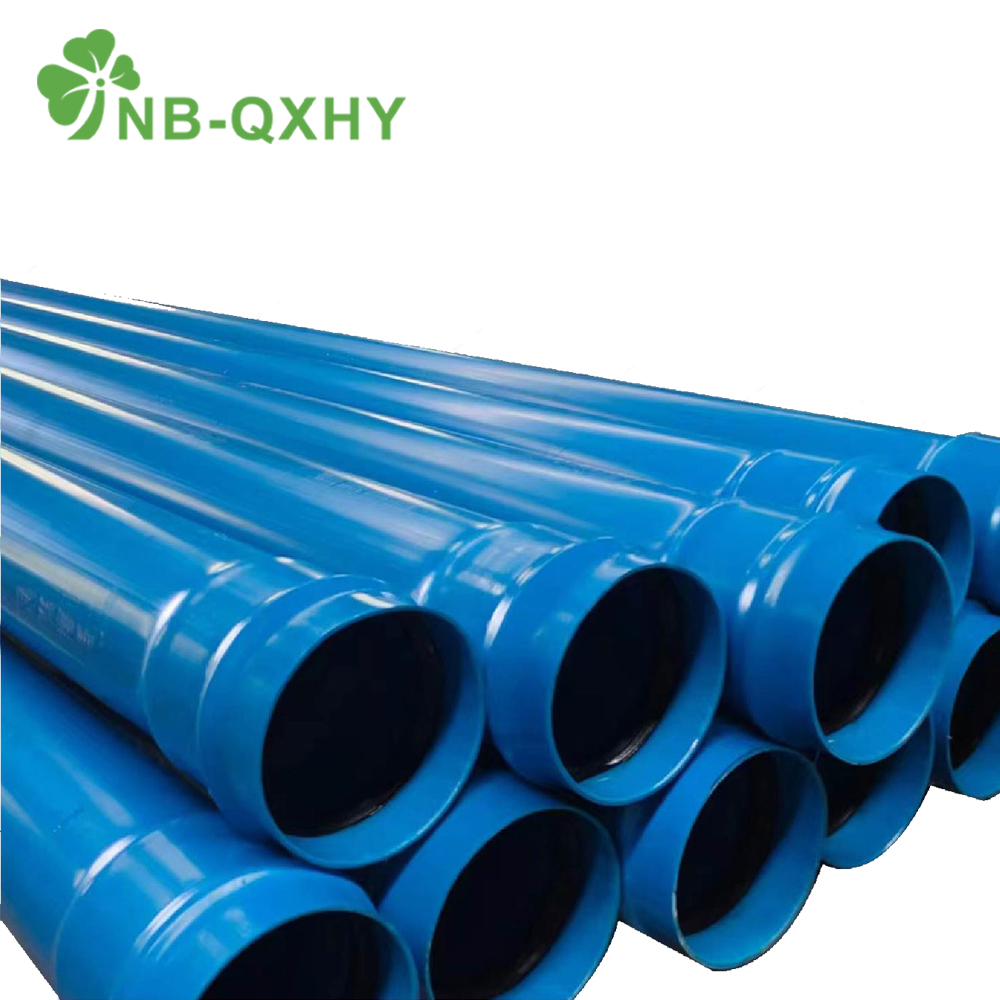

Blue PVC Pipes

Blue PVC Pipes

Media: Water

Material: PVC, UPVC, Plastic

Head Code: Round

Wall Thickness: PN10, PN16

Size: 50mm-1000mm

Color: Blue, Grey or Customized


NBQXHY's blue PVC pipes have the characteristics of better pressure resistance, impact resistance, tensile properties, acid and alkali corrosion resistance, light weight and long service life.



PRODUCT DESCRIPTION

China PVC Pipe Manufacturer

We are a professional plastic valve, pipe, and pipe fittings manufacturer. our factory mainly produced various PVC ball valves, pipes, and pipe fittings for 15 years. Plastic pipes are one of our main products. We have pipes of different standards and materials, such as DIN standard PN10/16 pipe, ASTM pipe, PVC pipe, PPR pipe, and more. Southeast Asia is one of the main markets for our pvc pipes, which are generally blue or dark gray. We welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.

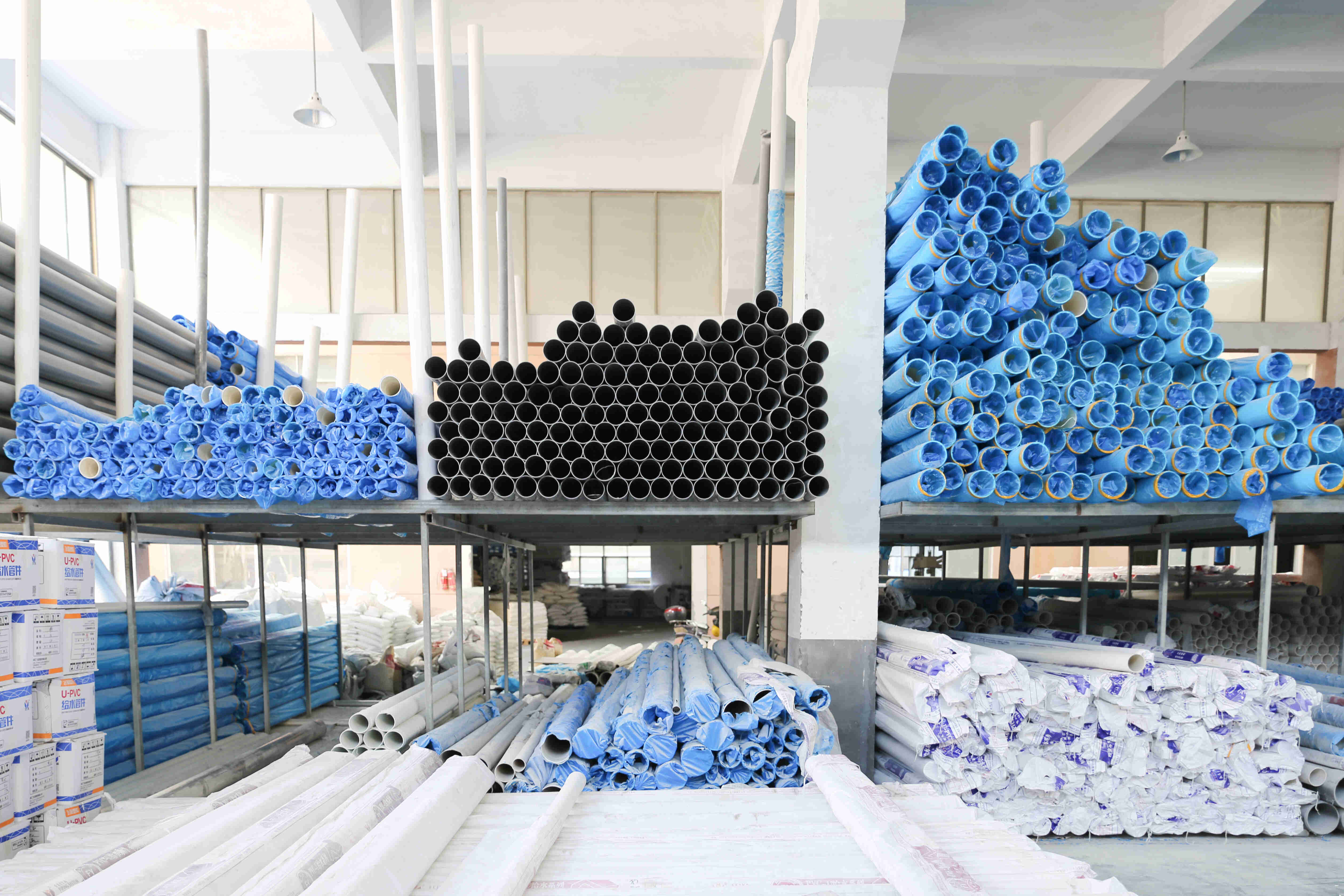

This picture shows our plastic valve, pipe and pipe fittings factory.


PVC Pipe Information

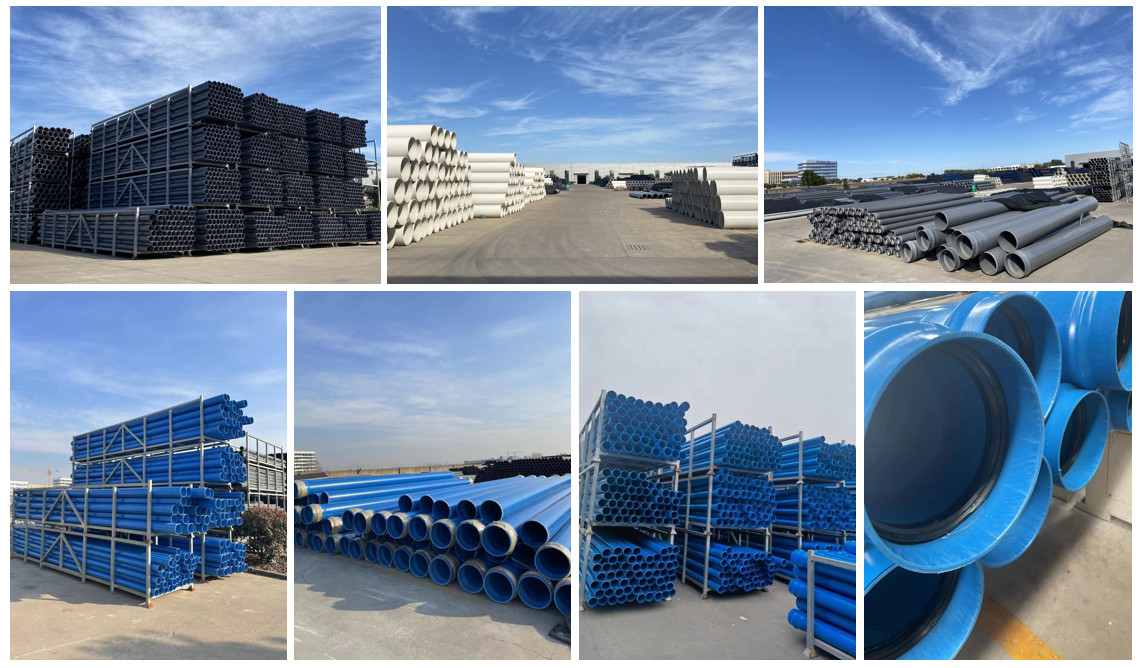

This video offers an engaging online tour of our PVC pipe factory and workshop. Experience the wide variety of plastic pipes available in different colors, materials, and functions, including PVC blue pipes, PVC gray pipes, Din standard pipes, ASTM standard pipes, and more. We eagerly anticipate your visit to our factory in China.



Product Name PVC Pipe   Color Blue, Grey or Customized
Main Material PVC, UPVC Structure Hollow
Nominal Diameter  50mm-1000mm Packaging Standard Export Packaging
Main Market Southeast Asia Application Water Supply System
Shape  Flared Pipe with Rubber Ring Origin Ningbo, Zhejiang, China
Customized Support OEM, ODM Port    Ningbo/Shanghai
Standard  DIN, GB Lead Time  25-35 Days
Certificate  ISO9001, COC Sample Available



PVC Pipe Dimensions

Nominal Diameter (mm) Nominal Wall Thickness (mm)
  PN0.63 PN0.8 PN1.0 PN1.25 PN1.6 PN2.0 PN2.5
50   2.0  2.4 3.0  3.7 4.6 5.6
63 2.0  2.5 3.0  3.8 4.7 5.8 7.1
75 2.3 2.9 3.6 4.5 5.6 6.9 8.4
90 2.8 3.5 4.3 5.4 6.7 8.2 10.1
110 2.7 3.4 4.2 5.3 6.6 8.1 10.0
125 3.1 3.9 4.8 6.0  7.4 9.2 11.4
140 3.5 4.3 5.4 6.7 8.3 10.3 12.7
160 4.0  4.9 6.2 7.7 9.5 11.8 14.6
180 4.4 5.5 6.9 8.6 10.7 13.3 16.4
200 4.9 6.2 7.7 9.6 11.9 14.7 18.2
225 5.5 6.9 8.6 10.8 13.4 16.6 20.5
250 6.2 7.7 9.6 11.9 14.8 18.4 22.7
280 6.9 8.6 10.7 13.4 16.6 20.6 25.4
315 7.7 9.7 12.0  15.0  18.7 23.2 28.6
355 8.7 10.9 13.6 16.9 21.1 26.1 32.2
400 9.8 12.3 15.3 19.1 23.7 29.4 36.3
450 11.0  13.9 17.2 21.5 26.7 33.1 40.9
500 12.3 15.3 19.1 23.9 29.7 36.8 45.4
560 13.7 17.2 21.4 26.7 33.2 41.2
630 15.4 19.3 24.1 30.0  37.4 46.3
710 17.4 21.8 27.2 33.9 42.1 52.2
800 19.6 24.5 30.6 38.1 47.4
900 22.0  27.6 34.4 42.9 53.3
1000 24.5 30.6 38.2 47.7



Blue PVC Pipe Description

As a new and innovative water supply pipe, our blue PVC water supply pipe improves the mechanical properties of the pipe and improves the connection method of the pipe on the basis of the traditional PVC-U pipe and PVC-M pipe. NBQXHY's blue PVC pipes have the characteristics of better pressure resistance, impact resistance, tensile properties, acid and alkali corrosion resistance, light weight and long service life.

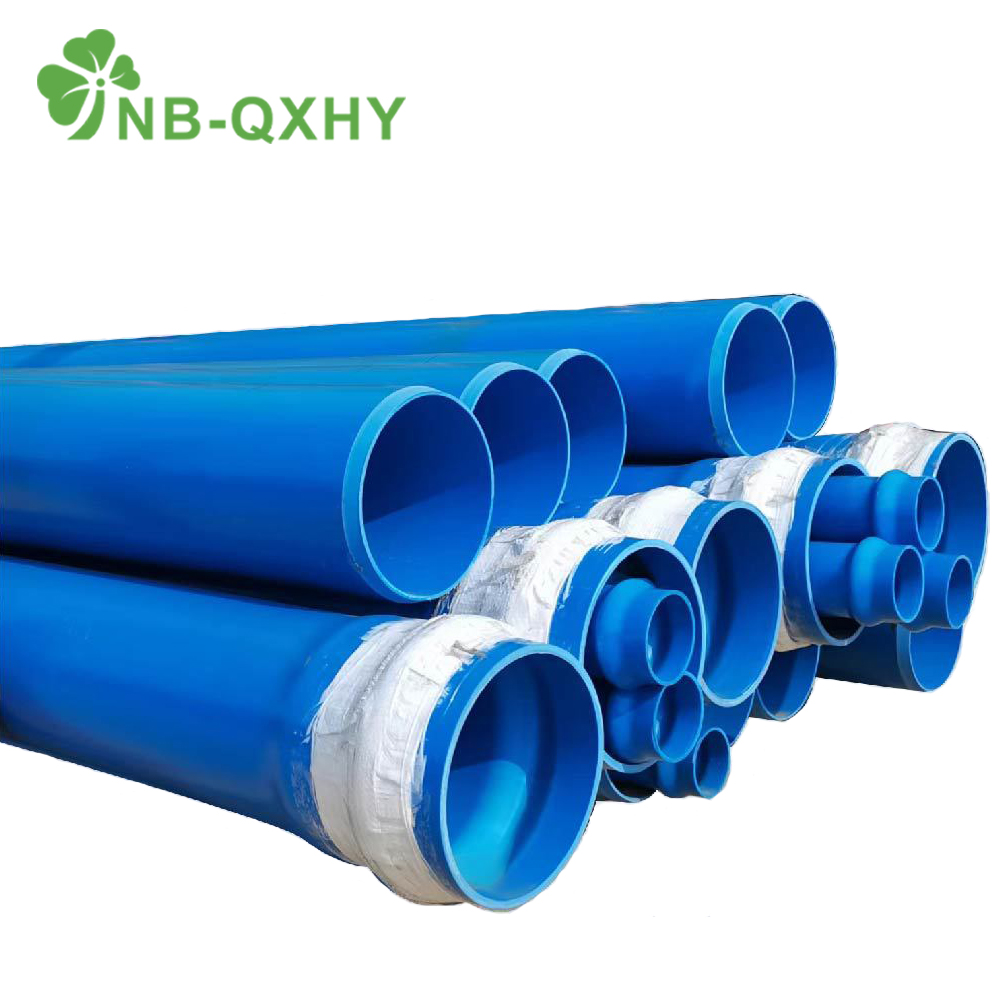

This picture shows our pvc pipes





Blue PVC Pipe Features

1. Reliable Connection: The pipeline system adopts flange connection with high connection strength, and is designed with expansion joints, which can compensate for the length change caused by thermal expansion and contraction of the pipe according to the transformation of the internal temperature of the pipeline.


2. Good Corrosion Resistance: Our pipe formulations contain only a few inorganic materials. Therefore, the PVC pipe is made of 100% pure raw materials, so the PVC pipe has strong corrosion resistance.


3. Better Toughness and High Impact Resistance: We have improved the toughness of the material through material modification, and improved the tensile performance and impact resistance of the pipe.


4. Stable Mechanical Properties: We have increased the minimum strength requirements of the materials, so they have high compressive strength and high mechanical properties, which ensure the stability of pipeline operation.


5. Low Construction Cost and Long Service Life: Our pipes are light in weight, thus making your project progress more accessible and more efficient. The products are reasonably priced and have a service life of more than 50 years, which greatly reduces your piping system's maintenance and replacement costs.

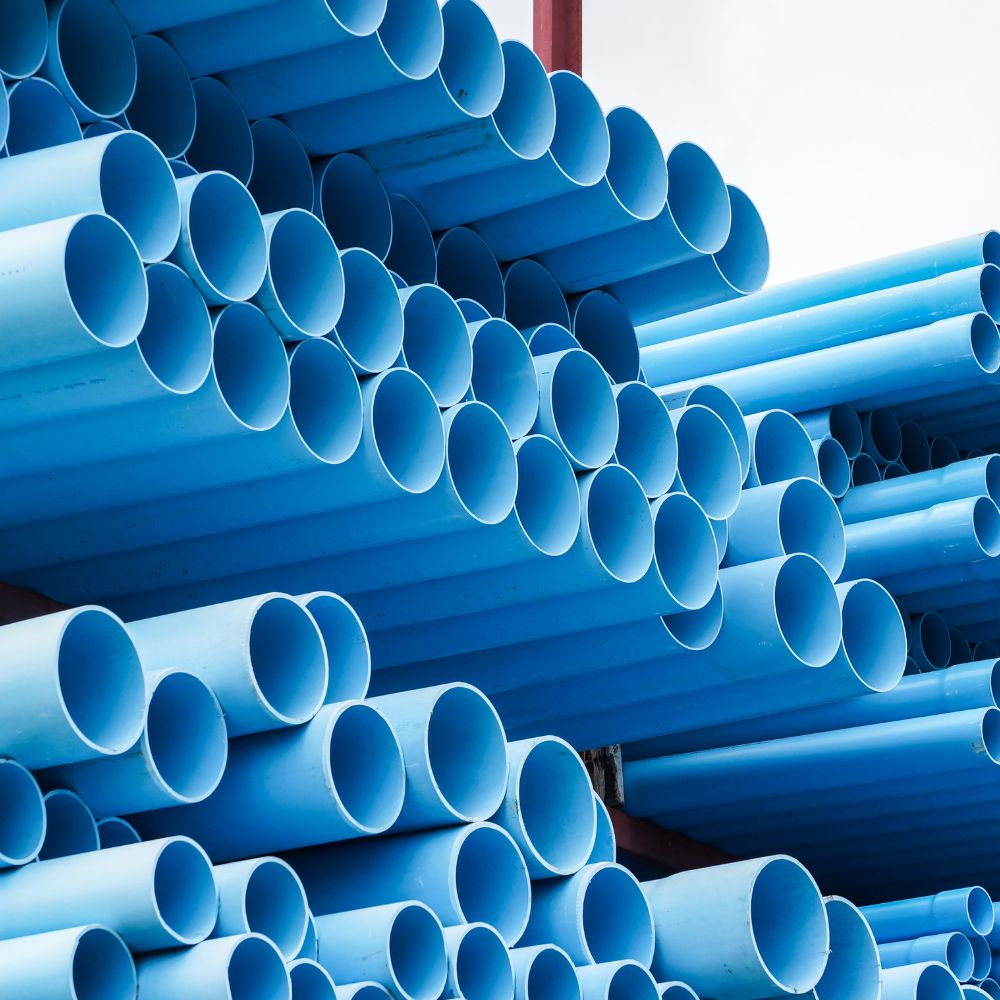

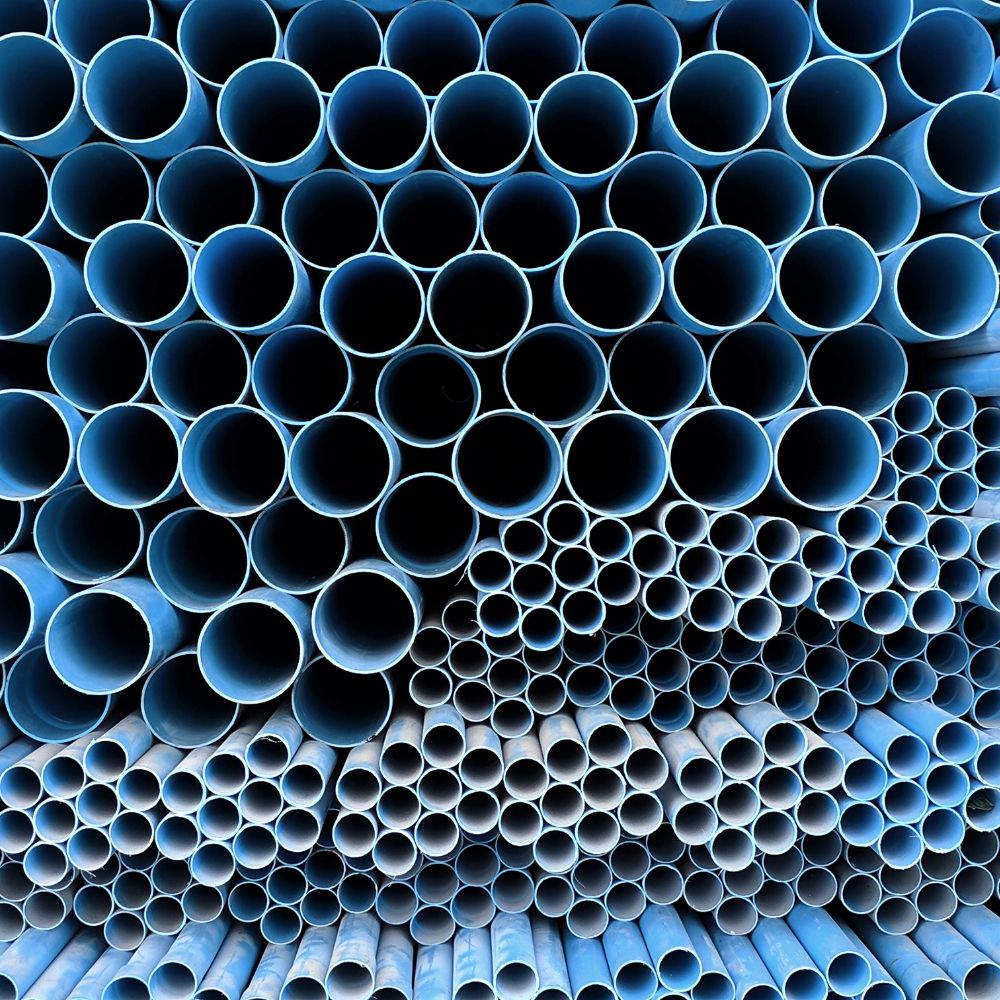

This picture shows our pvc pipes


PVC Pipe Packaging

Our PVC pipe packing is very strong, and can effectively avoid the plastic pipe to suffer unnecessary losses. Of course, if you have additional requirements for packing, we will also meet you.

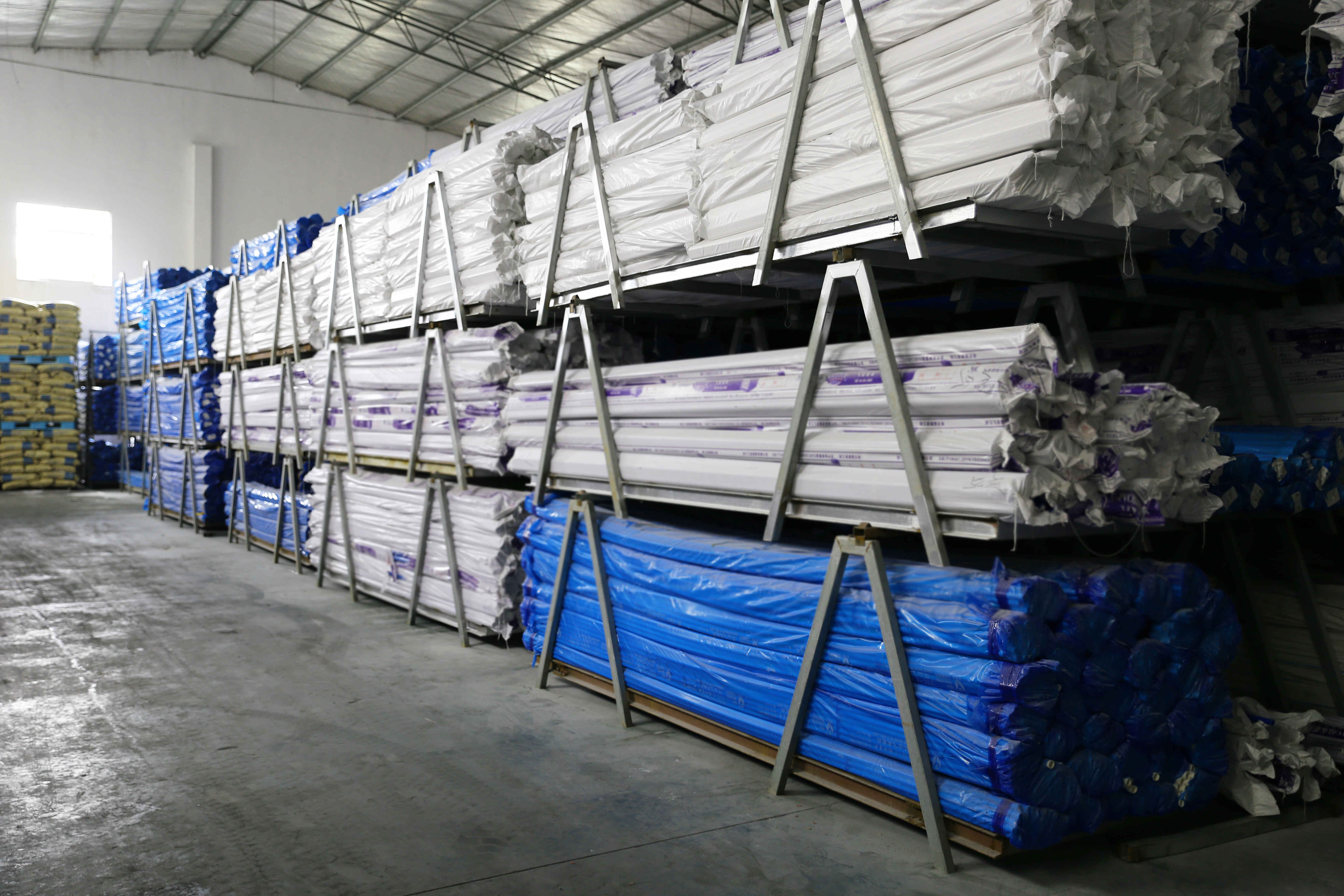

This picture shows the pvc pipes packaging


PVC Pipe Application Field

construction, industrial chemical industry, etc. In addition, we have a variety of product quality standards, matching different standards for different fields, which makes our pipes very standardized from production to use.

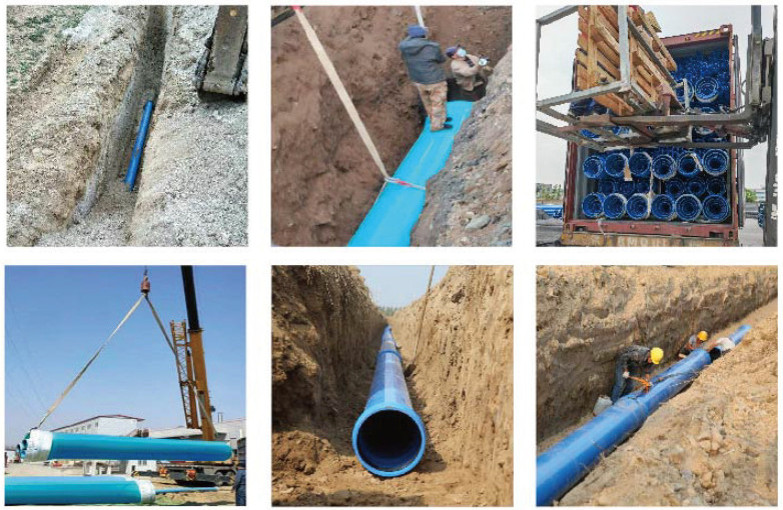

This picture shows the pvc pipe application field


Our Certifications

This picture shows our company certifications

FAQ

1. Are you a manufacturer or a trading company?
We are the manufacturer and have our own factory.



2. What's your price?
According to the different products, materials, sizes, and even MOQ, our prices are different. Anyway, our price is very competitive. Please contact me if you want to get the latest price list.



3. What product does your company produce?
we mainly manufacture kinds of plastic valve and plastic pipe, plastic fittings. We also developing group irrigation products to support sales. In addition, we will open new mold and customized service according to customers' market needs.



4. Do you accept OEM?
Yes, we accept OEM. We will engrave trademarks, laser print trademarks, and provide color box packaging, color box design, packaging design, pallet service, and product material formulas according to customer needs. The product material formula can also be replaced according to different usage requirements.



5. Can you provide related documents?
Yes, we can provide certificate files if you need them.



6. How long is your lead time?
The range of our lead time is 25-35 days. It depends on your requirement.



7. Do you have a customized service?
Yes, I will customize products according to customer needs.



8. Can I be your distributor?
Yes, we are very glad to cooperate with customers all over the world.



9. Where is your company's address?
Our company is located in the Ningbo Zhejiang Province, China.



10. How can I contact you?
You can send us an email at any time to ask any questions, we will reply to you in the shortest possible time.

Email: sales@nbqxhy.com
Phone: +0574-88209527
WhatsApp/WeChat: +86-18867873336



If you want to see our other plastic pipes, please click here!



---------------------------

-Reviewed by: Sky Zhou
-Position: Product Expert of NBQXHY

If you find any discrepancies in the information presented on this page, feel free to send us a message for correction.
