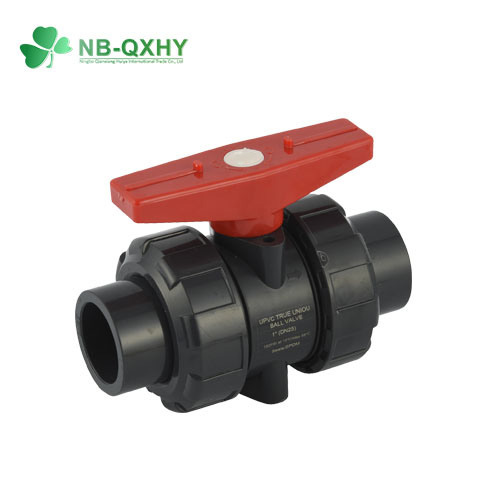

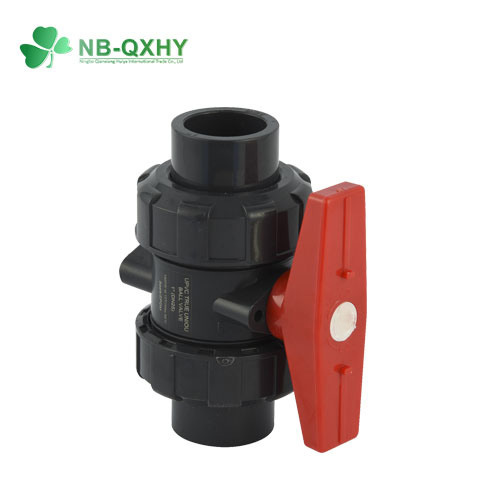

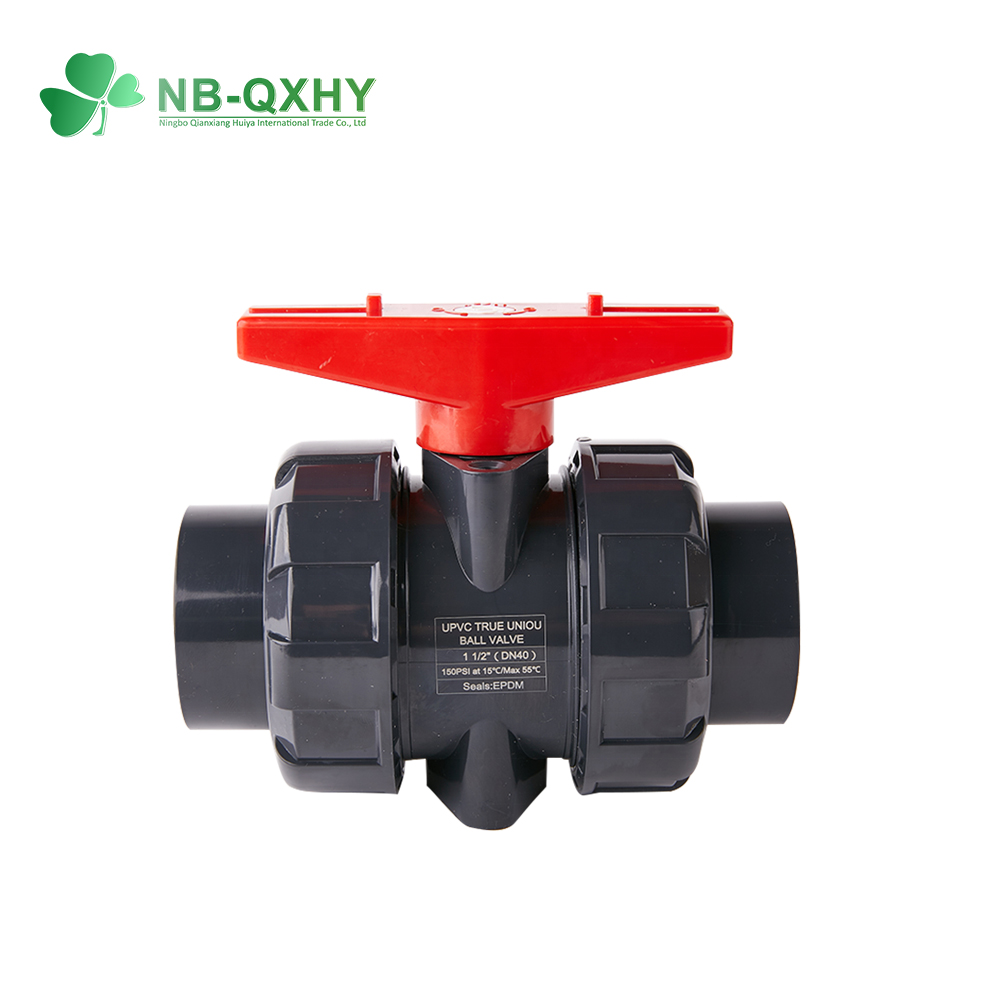

Industrial True Union Ball Valve
Industrial True Union Ball Valve
Media: Water
Material: PVC, Plastic
Connection Form: Socket or Threaded
Driving Mode: Manual
Pressure: Medium Pressure
Industrial true union ball valves have higher quality requirements than general union ball valves. The body is very thick and has good sealing performance. The inner and outer walls are smooth, so the water resistance is small.
PRODUCT DESCRIPTION
1. Introduction of Industrial True Union Ball Valve
Our industrial true union ball valve is made of new and environmentally-friendly PVC materials. Anti-corrosion and anti-ultraviolet ability are very good. Besides, the handle that conforms to the mechanical design is easy to use, and there is no feeling of blocking.
| Product Name | Industrial True Union Ball Valve | Color | Many Colors Available for Choice | |
| Main Material | UPVC | Main Market | Southeast Asia, The Middle East, Africa, South America, North America | |
| Size | 1/2”-4” | Packing | Carton, Polybag, Color Box, or Customized | |
| Power | Manual | Application | Swimming Pool , Construction Project, Agricultural Irrigation | |
| End Connection | Socket/Threaded | Port | Ningbo/Shanghai | |
| Customized Support | OEM, ODM | Lead Time | 25-35 Days | |
| Standard | CNS/JIS/DIN/BS/ANSI/NPT/BSPT | Sample | Free | |
| Certificate | ISO9001,SGS, GMC, CNAS | Logo | Printed or Customized |
2. Size of Industrial True Union Ball Valve
| Industrial True Union Ball Valve | |||||||||||
| unit: mm | |||||||||||
| SIZE | d | d1 | d2 | ||||||||
| ANSI | DIN | JIS | CNS | PPH | ANSI | DIN | JIS | CNS | PPH | ||
| 1/2″(15) | 15.00 | 21.40 | 20.25 | 22.30 | 22.40 | 19.30 | 21.25 | 20.05 | 21.85 | 21.90 | 19.00 |
| 3/4″(20) | 20.00 | 26.75 | 25.25 | 26.30 | 26.40 | 24.10 | 26.58 | 25.05 | 25.85 | 25.90 | 23.80 |
| 1″(25) | 25.00 | 33.52 | 32.25 | 32.33 | 34.50 | 31.00 | 33.28 | 32.05 | 31.85 | 33.90 | 30.70 |
| 1-1/4″(32) | 32.00 | 42.28 | 40.25 | 38.43 | 42.50 | 39.00 | 42.05 | 40.05 | 37.85 | 41.90 | 38.60 |
| 1-1/2″(40) | 40.00 | 48.40 | 50.25 | 48.46 | 48.60 | 49.00 | 48.12 | 50.05 | 47.45 | 47.90 | 48.60 |
| 2″(50) | 50.00 | 60.45 | 63.25 | 60.56 | 60.60 | 61.90 | 60.18 | 63.05 | 59.75 | 59.90 | 61.40 |
| 2-1/2″(65) | 63.00 | 73.30 | 75.25 | 76.60 | 76.70 | 73.60 | 72.85 | 75.05 | 75.87 | 75.90 | 72.30 |
| 3″(80) | 75.00 | 89.25 | 90.35 | 89.60 | 89.70 | 88.30 | 88.70 | 90.05 | 88.83 | 88.90 | 86.90 |
| 4″(100) | 90.00 | 114.60 | 110.35 | 114.70 | 115.00 | 108.00 | 114.10 | 110.05 | 113.98 | 113.80 | 106.40 |
3. Worth Talking About

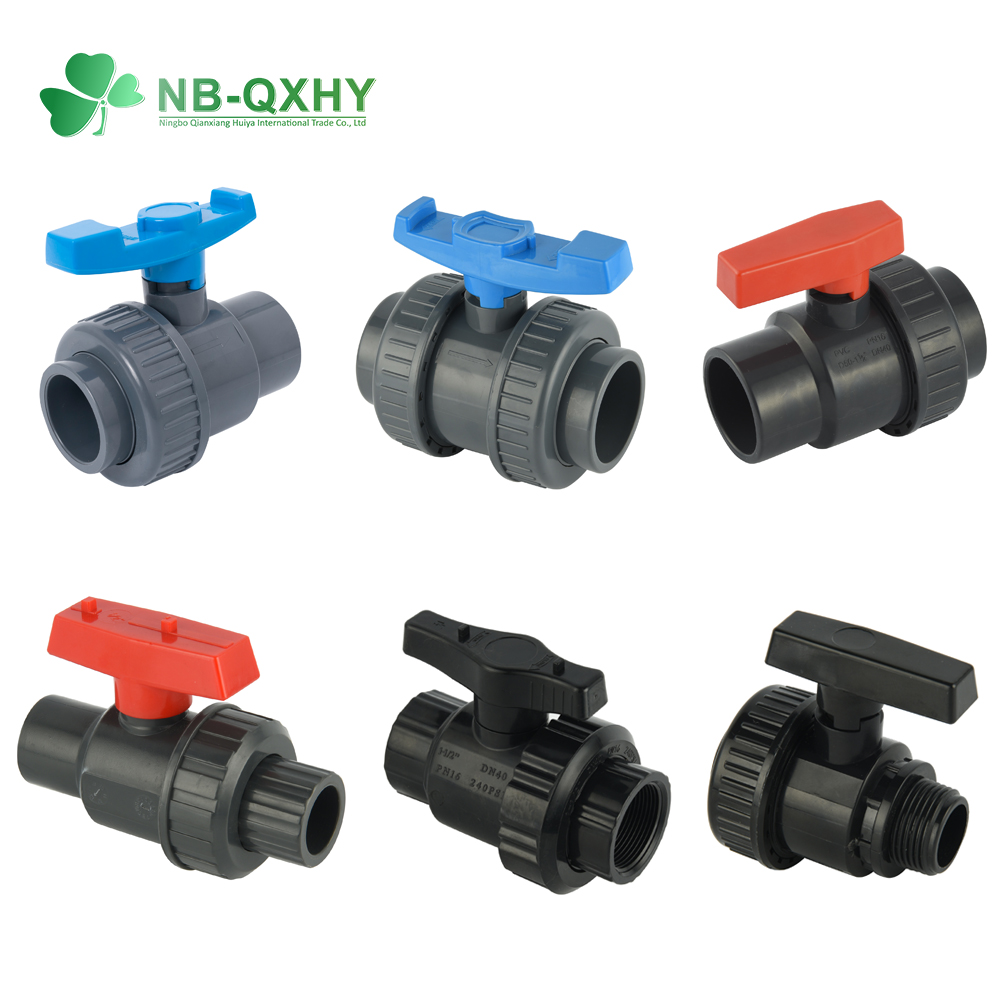

Union Ball Valve is one of our very popular products. We produce single union ball valve, double union ball valve, irrigation union ball valve, industrial union ball valve, etc. The pursuit of quality and industry has made our products praised by many customers. We have also been constantly improving the process, just to make our products better. We are also very happy to provide free samples so that you can rest assured before placing an order.
PS: We have many kinds of PVC union ball valves, which can match different application scenarios. This union valve has reached the industrial level in quality. If you want to know other styles of union valve, please click here.
