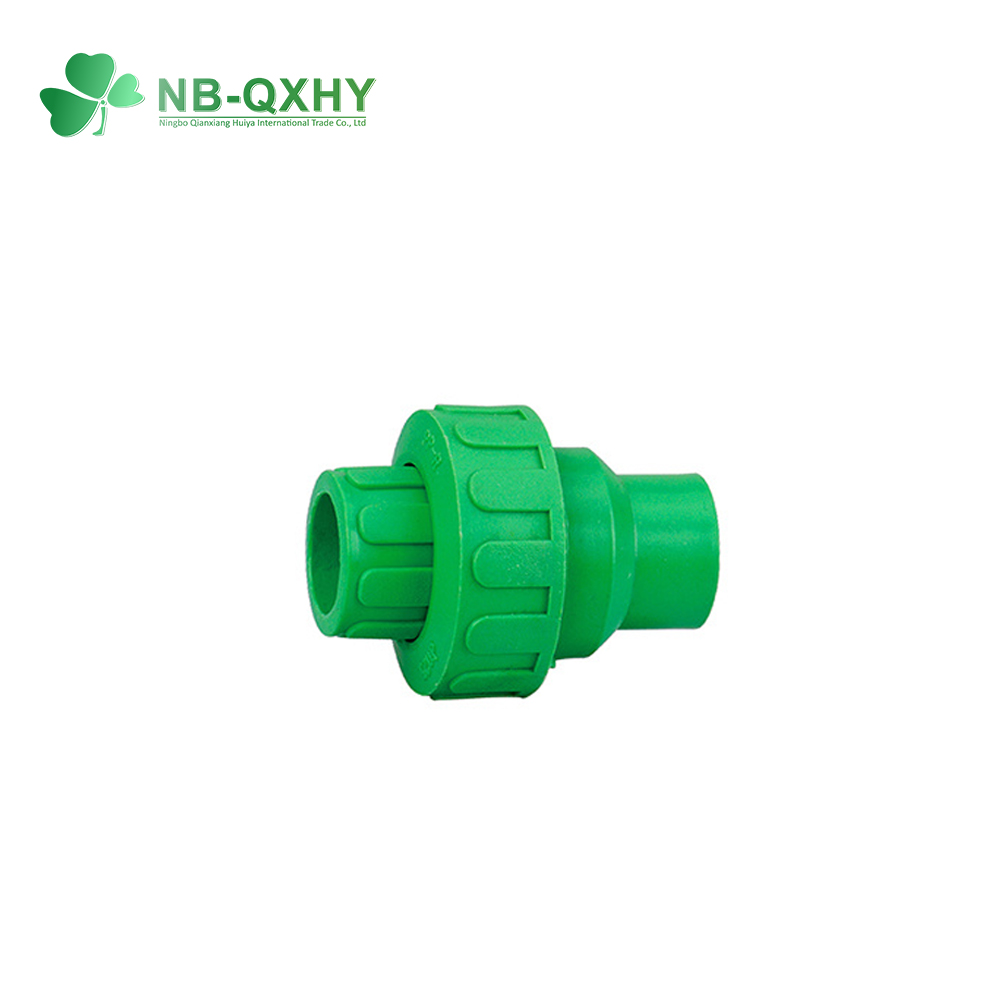

PPR Union

PPR Union

Media: Water

Material: PPR

Size: 20, 25, 32, 40, 50, 63

Color: Green, or Customized

Product Code: R23


PPR pipe fittings are very common in the field of domestic or urban water system. Because of its non-toxicity, corrosion resistance, high temperature resistance and long service life, it is widely used in hot and cold water and drinking water piping systems.



PRODUCT DESCRIPTION

1. Product Information

Product Name

PPR Union

  Color Normal Green, White, Gary, or Customized
Main Material PPR Temperature (-40)ºC+ 100ºC
Size 20, 25, 32, 40, 50, 63 Packing Standard Export Packaging or as Your Request
Main Market Southeast Asia, The Middle East, Africa Use Water Supply
Connection Welded Origin Ningbo, Zhejiang, China
Customized Support OEM, ODM Port    Ningbo/Shanghai
Standard GB, DIN Lead Time  25-50 Days
Certificate ISO, CE Sample Free

2. Product Parameters

Name Size(mm)
Coupling 20, 25, 32, 40, 50, 63, 75, 90, 110, 160
90dge Elbow 20, 25, 32, 40, 50, 63, 75, 90, 110,160
45dge Elbow 20, 25, 32, 40, 50, 63, 75, 90, 110, 160
Cross 20, 25, 32, 40, 50, 63
Plug 1/2'', 3/4'', 1”
Female Coupling 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2'', 75X2-1/2'', 90X3'', 110X4''
Male Coupling 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2'', 75X2-1/2'', 90X3'', 110X4''
Female Elbow 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2''
Male Elbow 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2''
Reducing Tee 25X20X25, 32X20X32, 32X25X32, 40X20X40, 40X25X40, 40X32X40, 50X20X50, 50X25X50, 50X32X50, 50X40X50, 63X20X63, 63X25X63, 63X32X63, 63X40X63, 63X50X63, 75X20X75, 75X25X75, 75X32X75, 75X40X75, 75X50X75,
Union 20, 25, 32, 40, 50, 63
Female Tee 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2''
Male Tee 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4'', 32X1/2'', 32X3/4'', 32X1'', 40X1-1/4'', 50X1-1/2'', 63X2''
Flange Set 40, 50, 63, 75, 90, 110, 160
Long Elbow 20, 25, 32, 40
Ball Valve 20, 25, 32, 40, 50, 63
Short Bypass Bend 20, 25, 32
Equal Tee 20, 25, 32, 40, 50, 63, 75, 90, 110, 160
Reducing Elbow 25X20, 32X20, 32X25, 40X20, 40X25, 40X32, 50X20, 50X25, 50X32, 50X40, 63X20, 63X25, 63X32, 63X40, 63X50
Reducing Socket 25X20, 32X20, 32X25, 40X20, 40X25, 40X32, 50X20, 50X25, 50X32, 50X40, 63X20, 63X25, 63X32, 63X40, 63X50, 75X20, 75X25, 75X32, 75X40, 75X50, 75X63, 90X20, 90X25, 90X32, 90X40, 90X50, 90X63, 90X75, 110X20, 110X25, 110X32, 110X40, 110X50, 110X63, 110X75, 110X20, 110X90, 160X110
Female Elbow with Pedestal 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4''
Male Elbow with Pedestal 20X1/2'', 20X3/4'', 25X1/2'', 25X3/4''
Heavy Stop Valve 20, 25, 32, 40, 50, 63, 75, 90
New Luxurious Stop Valve 20, 25, 32



3. Product Package

For PPR packaging, we provide cartons, polybags, color boxes or customized. If you have any requirements for packaging, please contact us.


4. Our Certificates

5. Our Factory

Our factory has more than ten years of experience in the production and export of plastic valve/pipe fittings. In addition, with the development of the company, our order volume has increased year by year, so we have optimized our production tools, production technology and production procedures, greatly improving our production efficiency and greatly shortening the delivery time of orders. If you are interested in our factory, welcome to visit our factory in China.

RELATED PRODUCTS

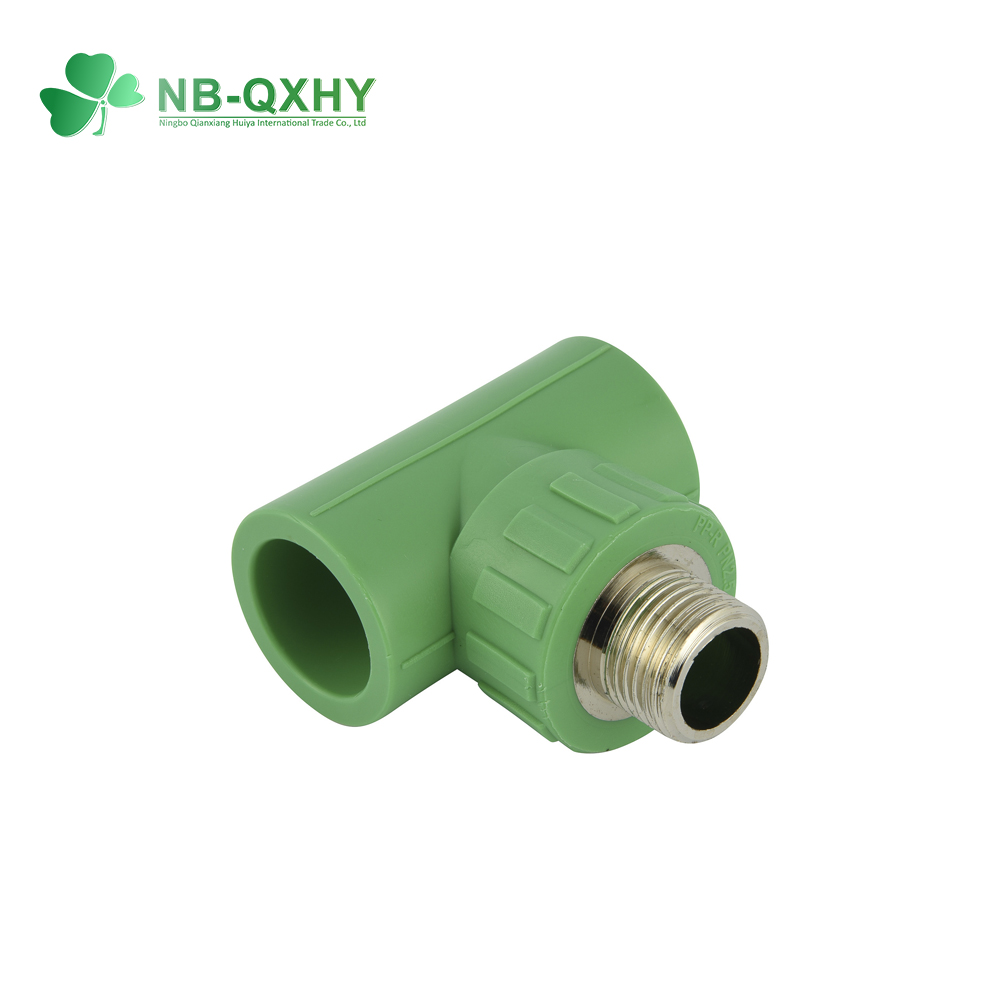

PPR Male Tee

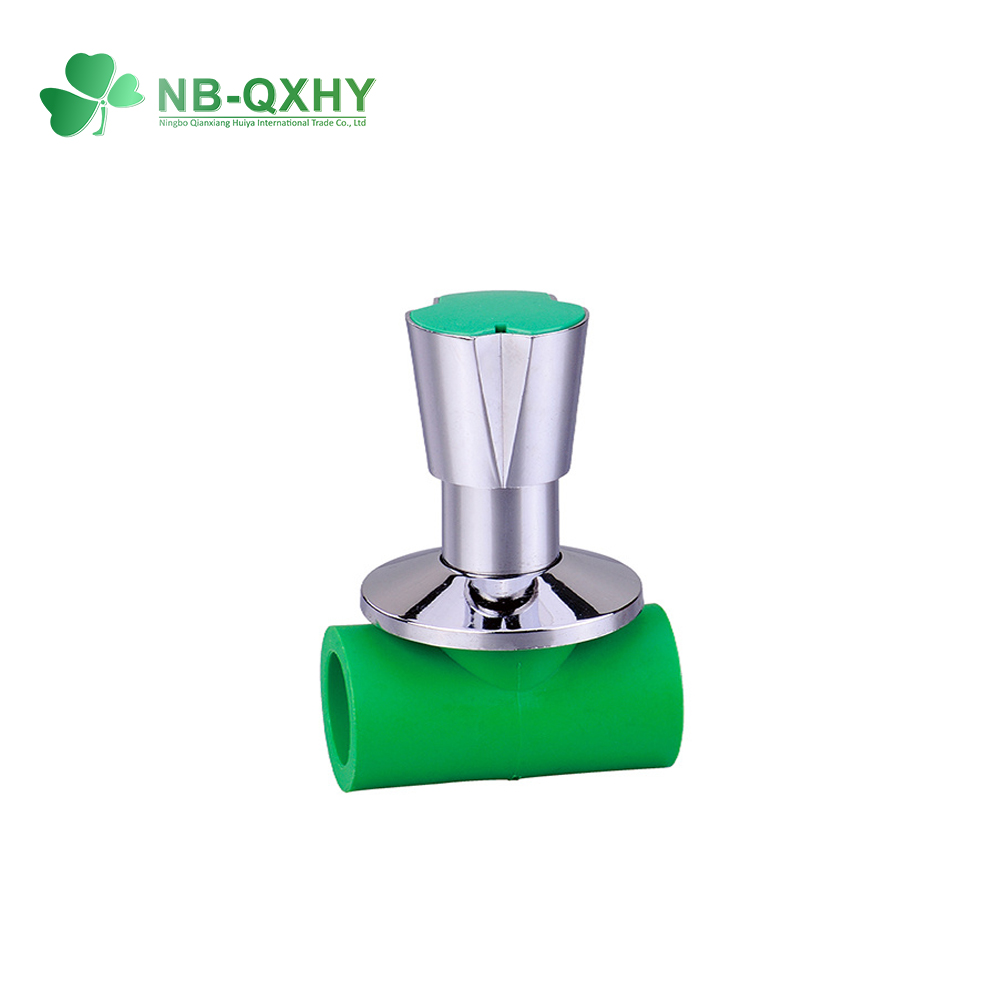

PPR New Luxurious Stop Valve

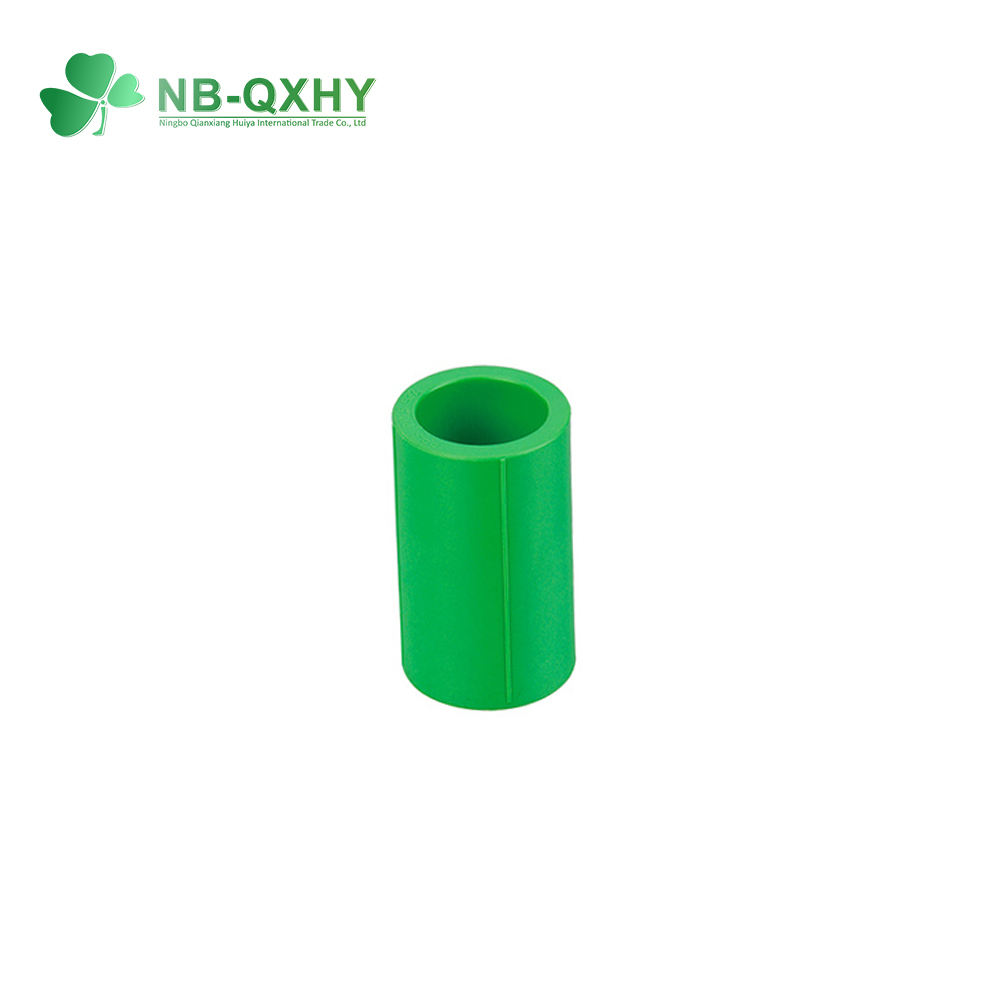

PPR Coupling

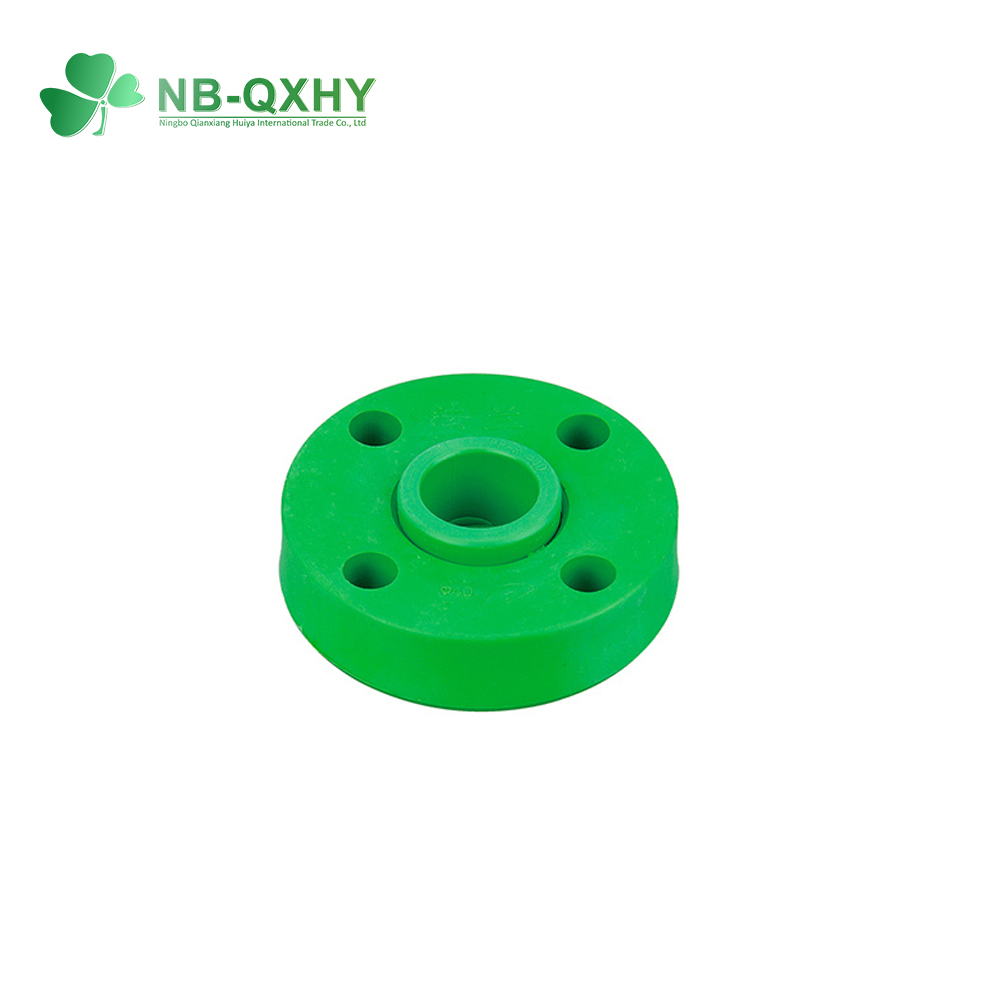

PPR Flange
