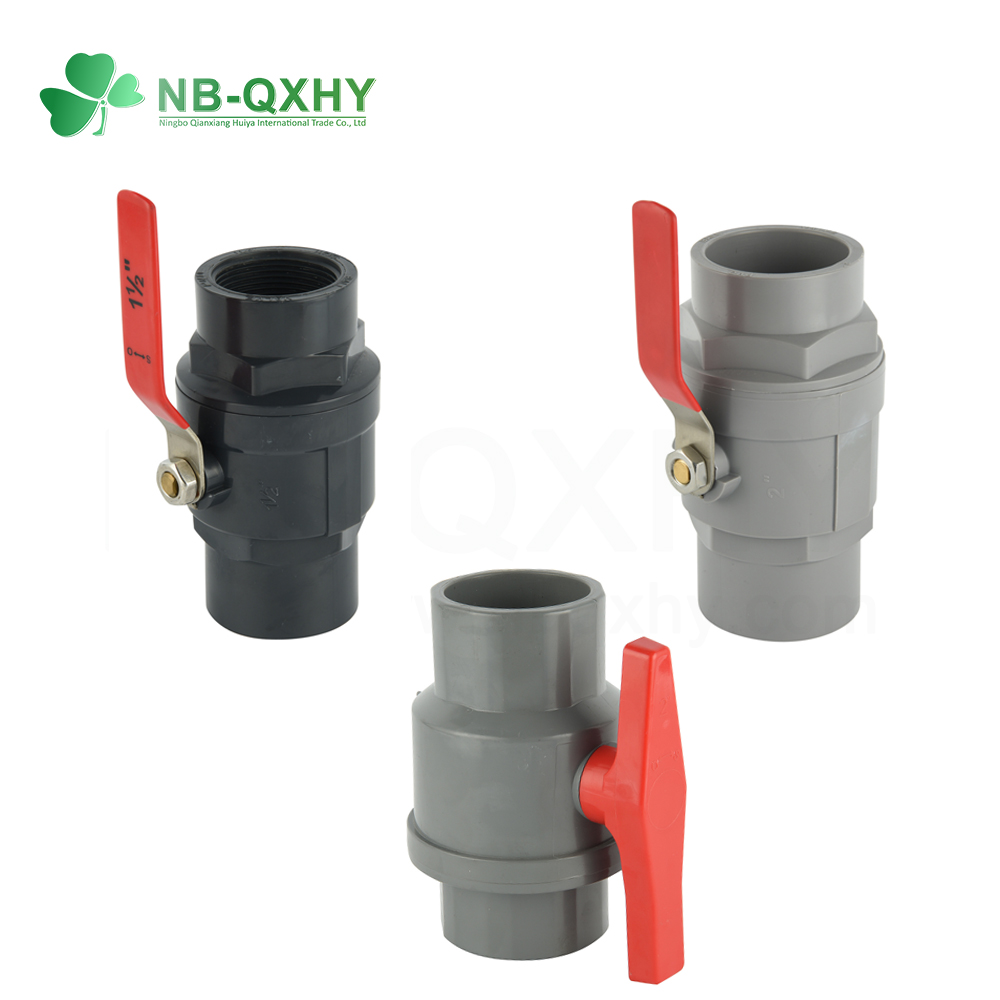

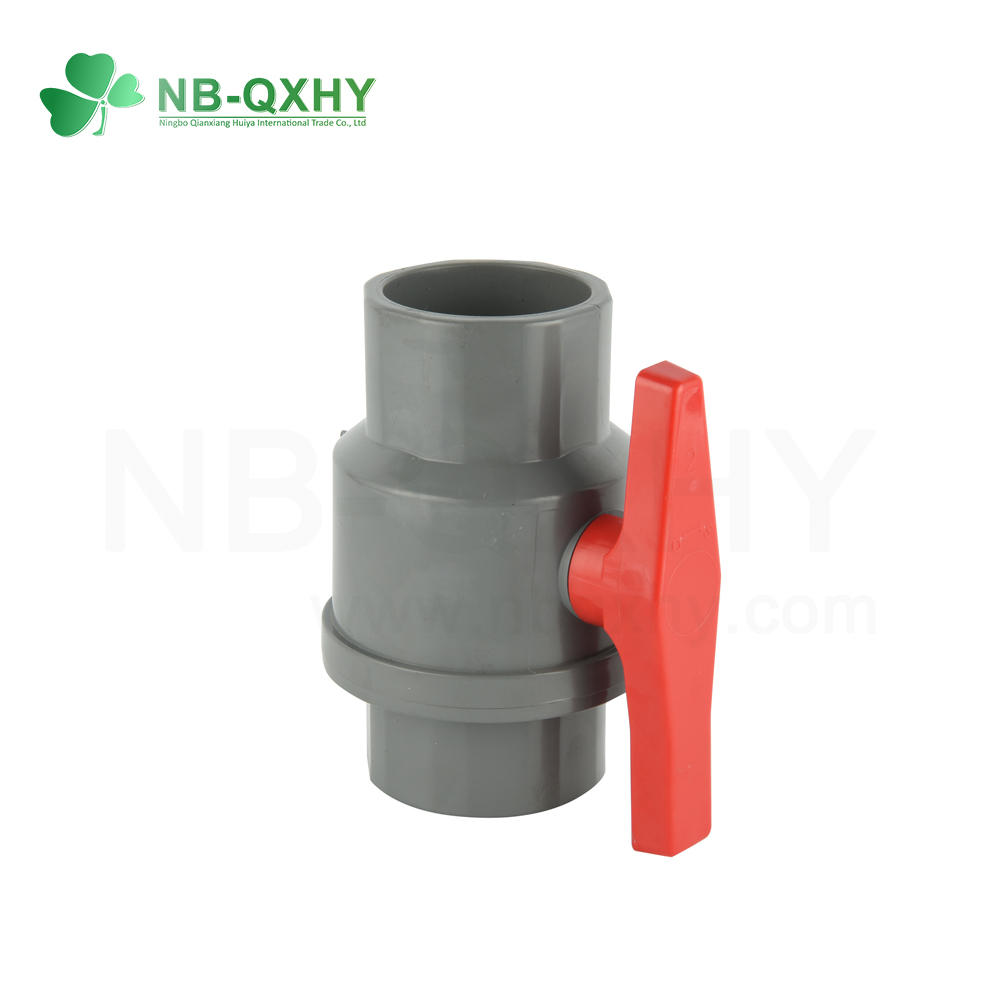

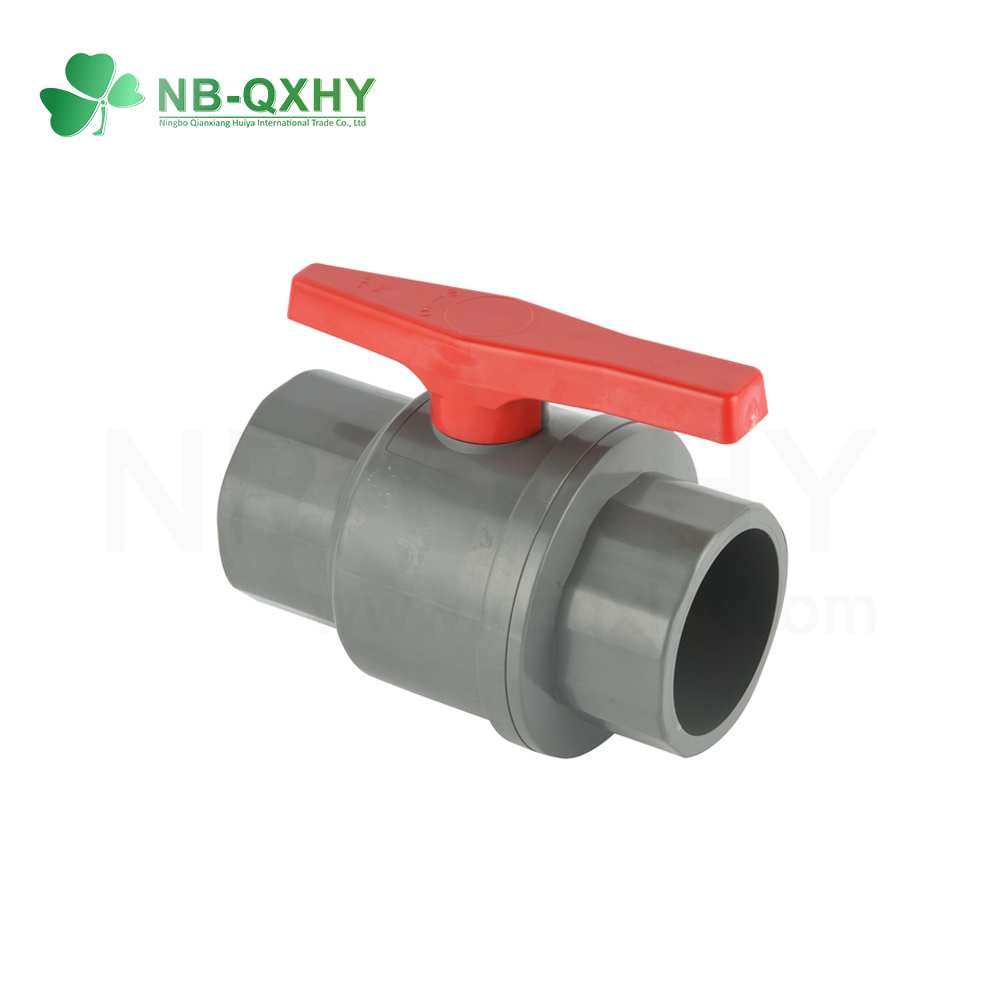

Two Pieces Ball Valve with Plastic Handle
Two Pieces Ball Valve with Plastic Handle
Media: Water
Material: PVC, Plastic
Connection Form: Socket or Threaded
Driving Mode: Manual
Structure: Flexible Ball Valve
Temperature: Normal Temperature
Size: 1/2″-4″
The two pieces ball valve is a new type of ball valve. Compared with the compact ball valve, it can be disassembled, so it is more convenient to maintain and replace.
PRODUCT DESCRIPTION
1. Product Information
| Product Name | Two Pieces Ball Valve | Color | Customized | |
| Main Material | PVC | Place of Origin | Zhejiang, China | |
| Size | 1/2″ to 4″ | Packing | Carton, Polybag, Color Box, or Customized | |
| Power | Manual | Application | Swimming Pool, Construction Project, Agricultural Irrigation | |
| End Connection | Socket/Threaded | Port | Ningbo/Shanghai | |
| Customized Support | OEM, ODM | Lead Time | 25-35 Days | |
| Standard | CNS/JIS/DIN/BS/ANSI/NPT/BSPT | Sample | Free | |
| Certificate | ISO9001,SGS, GMC, CNAS | Logo | Printed or Customized |

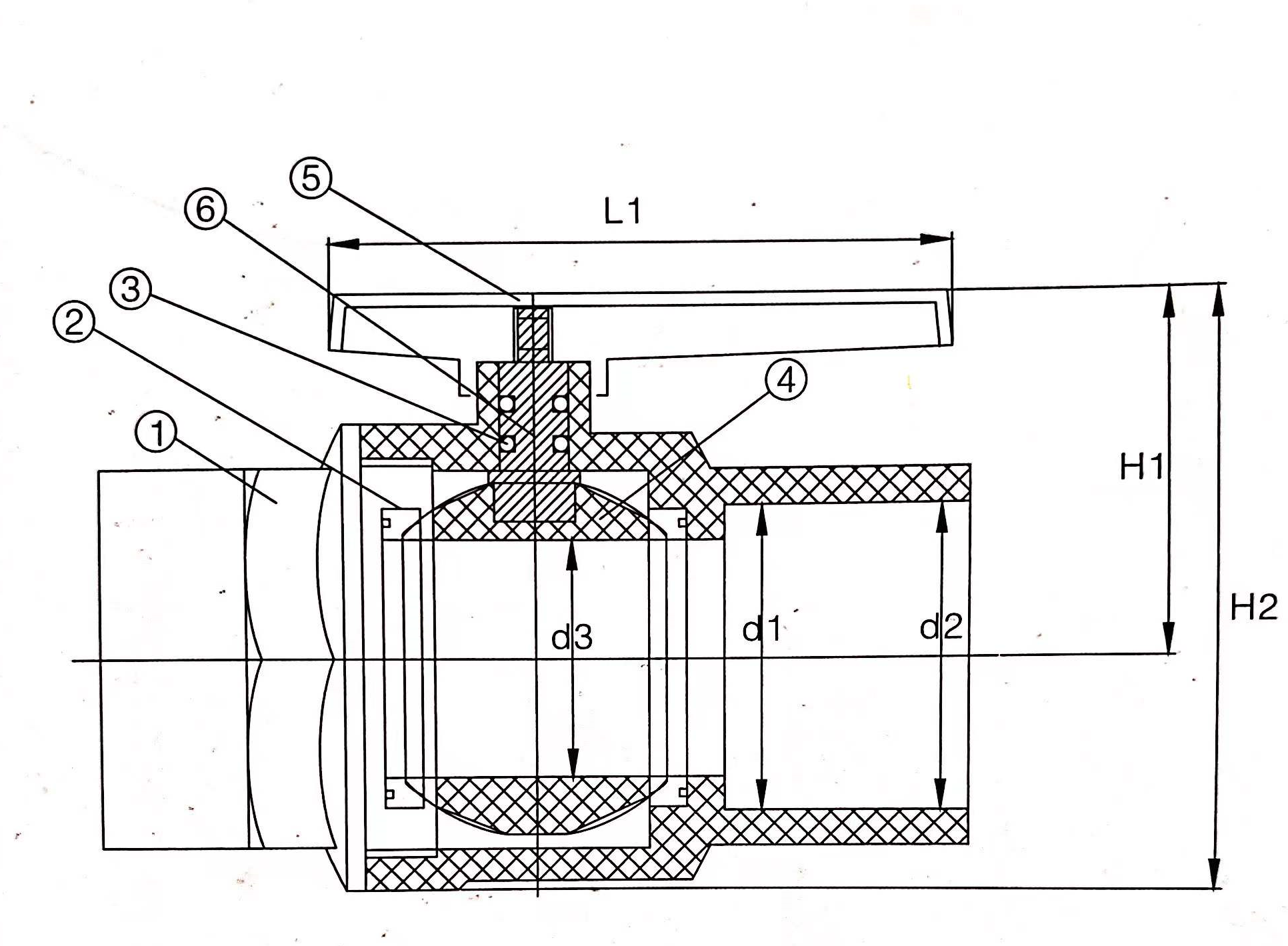

2. Product Parameters
| NO. | PART | MATERIAL | QTY |
| 1 | Body | UPVC, CPVC | 1 |
| 2 | Seat Seal | TPE, TPV, TPO | 2 |
| 3 | Stem O-Ring | EPDM,FPM (NBR) | 2 |
| 4 | Ball | UPVC, CPVC | 1 |
| 5 | Handle | PVC, ABS | 1 |
| 6 | Stem | UPVC, CPVC, POM | 1 |

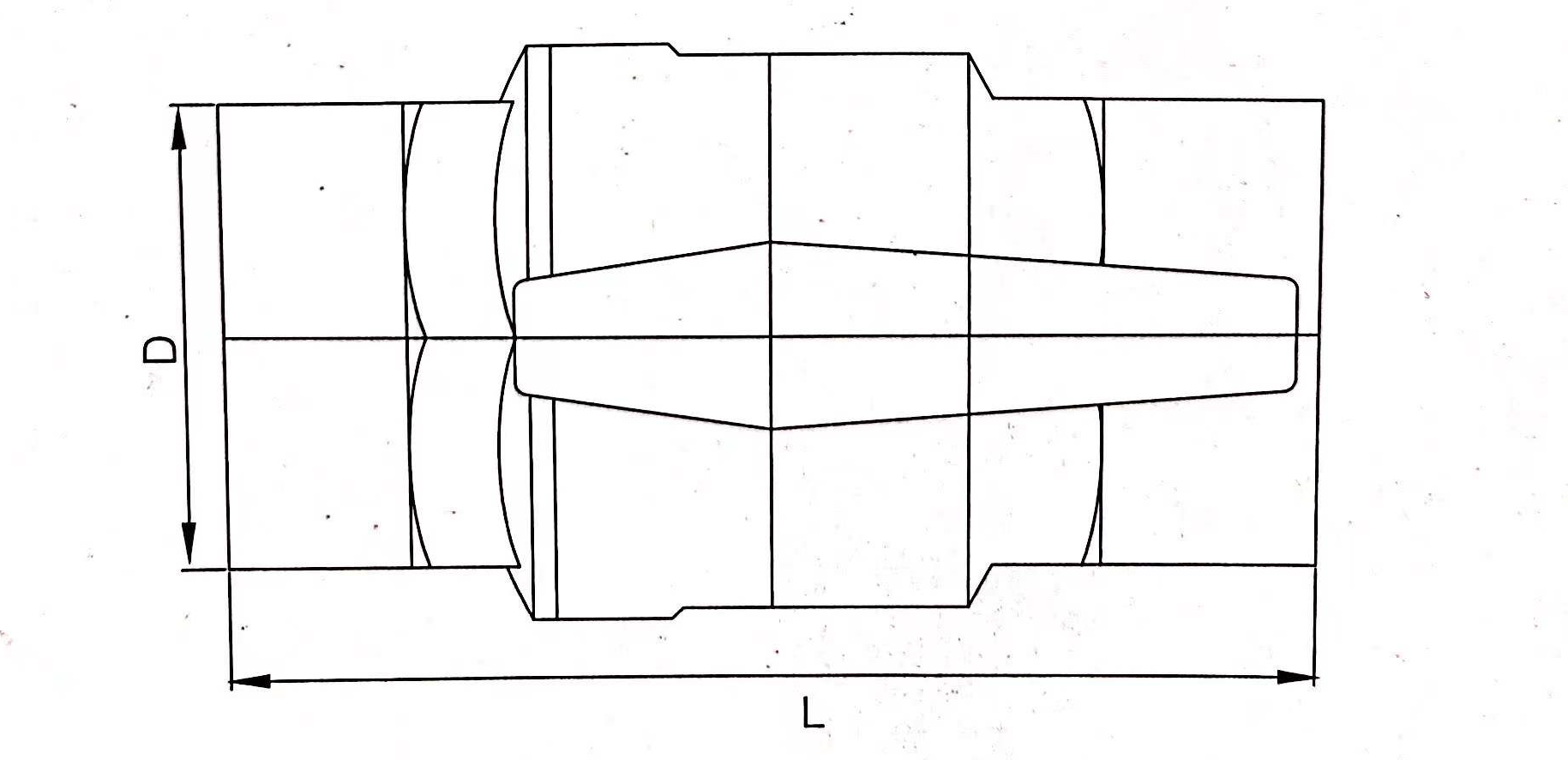

3. Product Size
| SIZE | d3 | D | L | L1 | H2 |
| 1/2″ | 15 | 29 | 93 | 78.5 | 62.5 |
| 3/4″ | 20 | 33.2 | 100 | 78.5 | 68 |
| 1″ | 25 | 42.1 | 114.8 | 85.1 | 84.3 |
| 1-1/4″ | 29 | 54 | 128 | 94.1 | 95.7 |
| 1-1/2″ | 38 | 61 | 139.4 | 102.6 | 107.4 |
| 2″ | 47 | 74.6 | 169 | 127.9 | 122 |
