PVC Butterfly Valve

Media: Water

Connection Form: Flange

Driving Mode: Manual

Structure: Shutoff

Seal Form: Auto Sealed

Valve Stem: Normal

Size: 2"-8"

A professional manufacturer of plastic valves and fittings in China, we can provide free samples before exporting PVC butterfly valves.

Send Inquiry

PRODUCT DESCRIPTION

1. Product Introduction

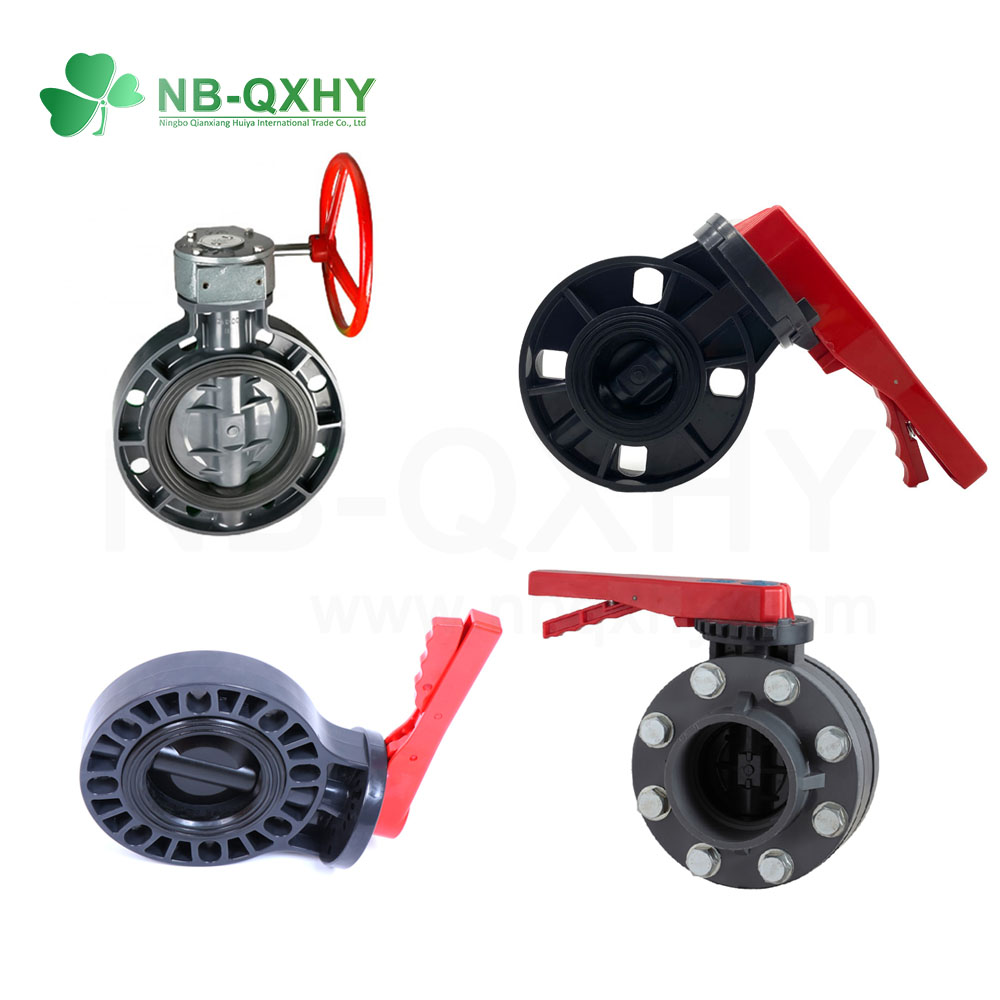

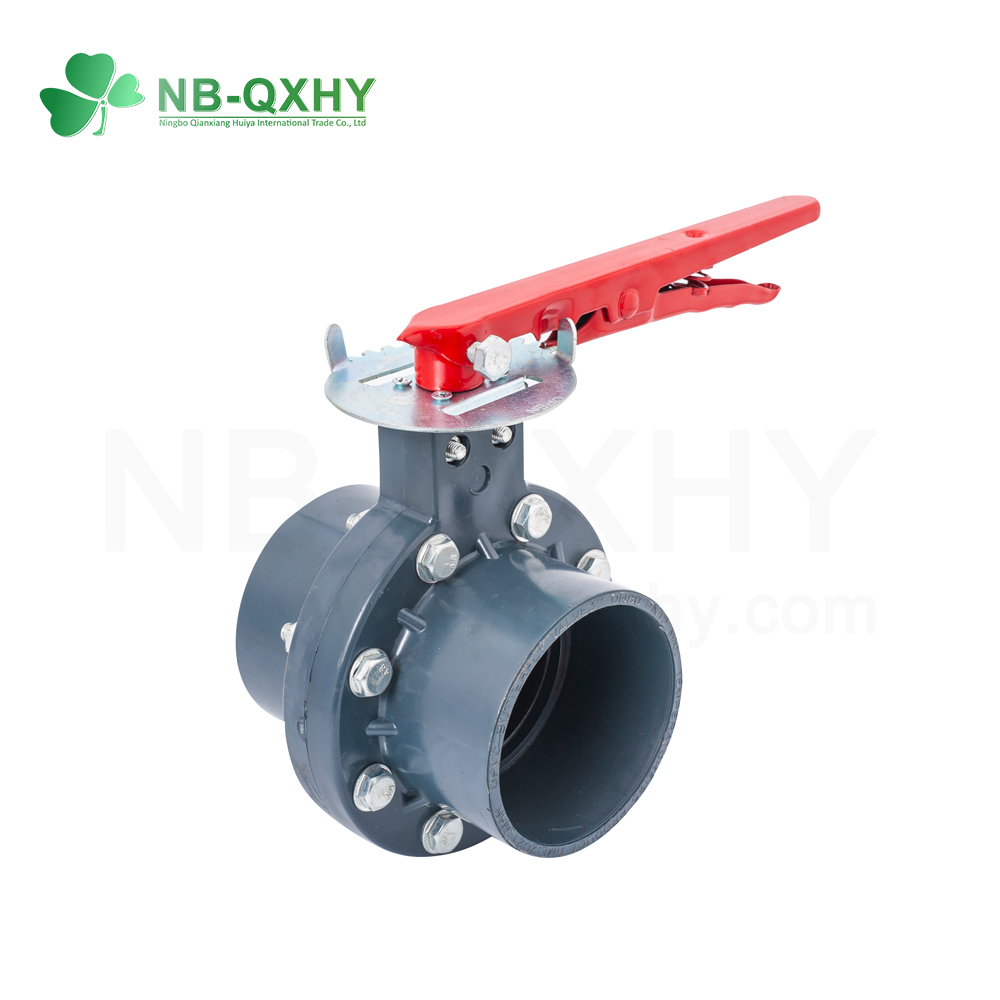

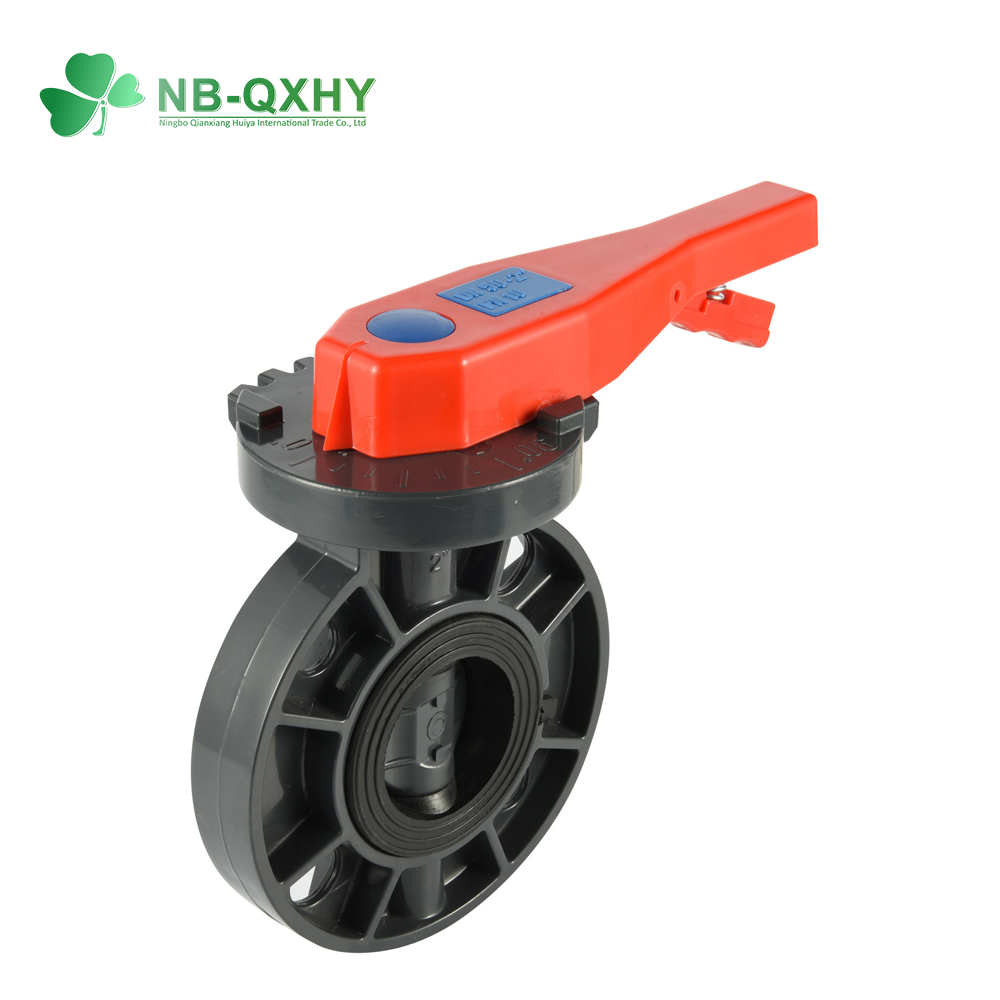

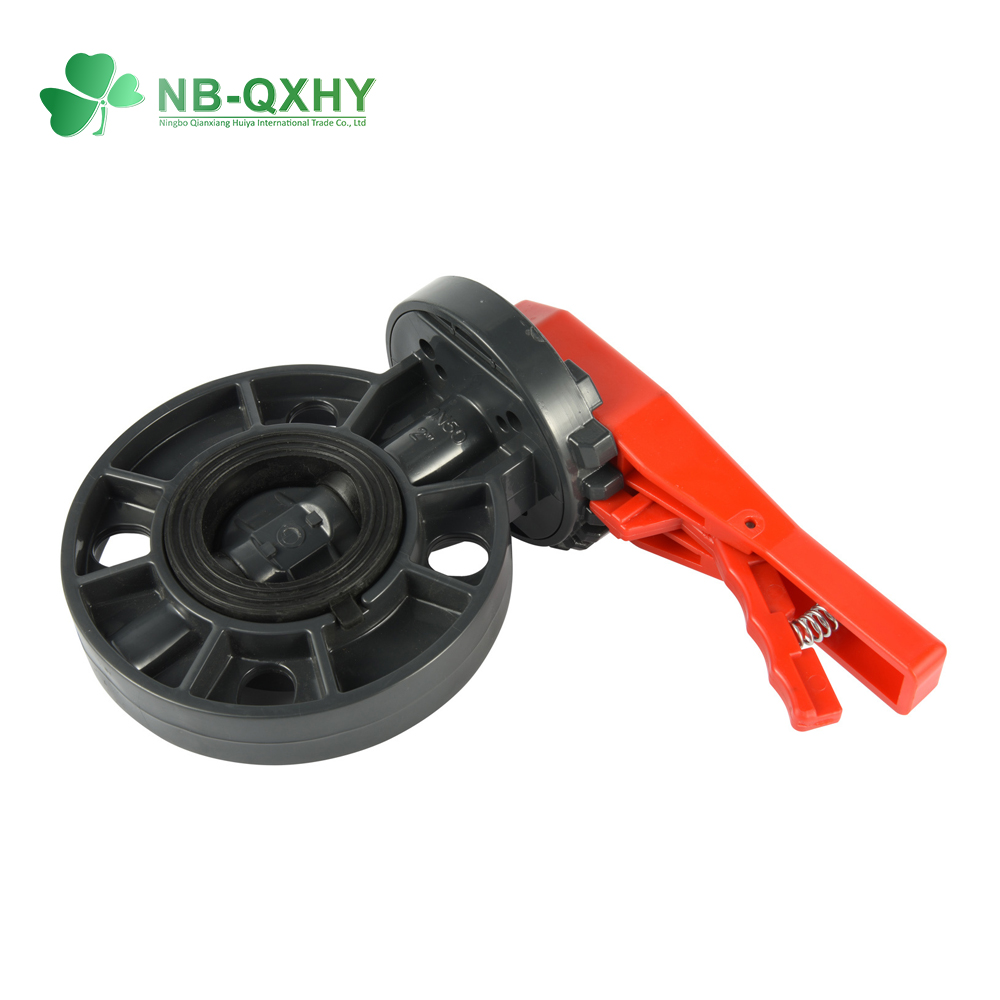

Our PVC butterfly valve can be used in the construction of large pipelines, directly connected with flanges, easy to install, long-term use, not easy to be damaged, good sealing performance, not easy to leak, and maintenance and repair are labor-saving.

Product name	PVC Butterfly Valve	Color	Many Colors Available for Choice
Main Material	PVC	Main Market	Southeast Asia, The Middle East, South America, North America
Size	2"-8" (DN50—DN200)	Packing	Carton, Polybag, Color Box, or Customized
Power	Manual	Working Pressure	PN10-PN16
End Connection	Flange	Port	Ningbo/Shanghai
Customized support	OEM, ODM	Lead Time	25-35 Days
Standard	JIS/DIN/ANSI	Sample	Discount
Certificate	ISO9001	Logo	Printed or Customized

2. Product Structure

NO.	PART	MATERIAL	QTY
1	Body	PVC	1
2	Seat Seal	EPDM, FPM(NBR)	1
3	Gate	PVC	1
4	Stem	STEEL, SS304, SS316	1
5	O-Ring	EPDM, FPM(NBR)	1
6	Washer	ABS	1
7	Locking Plate	PVC	1
8	Large Handle	ABS	1

NO.	PART	MATERIAL	QTY
9	SMALL HANDLE	ABS	1
10	SPRING	SS304, 316	1
11	PIN	SS304, 316	1
12	BOLT	SS304, 316	1
13	HANDLE CAP	ABS	1
14	INSERED BOLT	SS304, 316	4
15	BOLT CAP	PVC	4

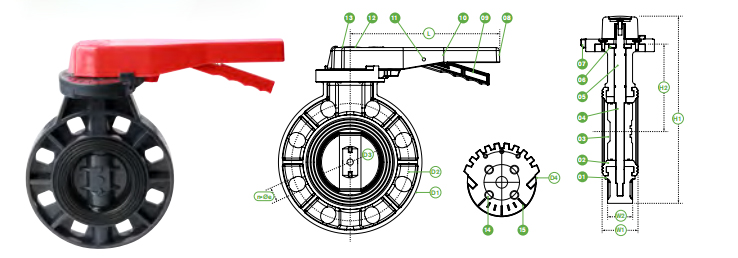

3. Product Dimension (Unit: mm)

SIZE	/	2"	21/2"	3''	4"	5"	6"	8"
SIZE	DN	50	65	80	100	125	150	200
ØD		160	180	196	228	258	287	344
P.C.D. ØD1	DIN	125	145	160	180	210	240	295
	ANSI	121	140	152	191	216	241	298
	JIS	120	140	150	175	210	240	290
Ød		48	63	78	98	122	146	199
L		43	46	49	54	64	70	88
Ø1		124	124	124	124	170	170	170
Ø2		1SO5211 F05/F07	1SO5211 F05/F07	1SO5211 F05/F07	1SO5211 F05/F07	1SO5211 F07/F10	1SO5211 F07/F10	1SO5211 F10
LI		190	190	240	240	310	310	310
W		55	55	55	55	72	72	72
H1		100	112	120	140	168	181	215
H2		143	155	172	194	223	239	280
H		223	245	270	308	352	382	452
n-Øe	DIN	4-Ø19	4-Ø19	8-Ø19	8-Ø19	8-Ø19	8-Ø23	8-Ø23
	ANSI	4-Ø19	4-Ø19	4-Ø19	8-Ø19	8-Ø19	8-Ø23	8-Ø23
	JIS	4-Ø18	4-Ø19	8-Ø19	8-Ø19	8-Ø19	8-Ø23	12-Ø23
PN	PSI	150	150	150	150	150	150	100
PN	MPa	1	1	1	1	1	1	0.6

4. Our Factory

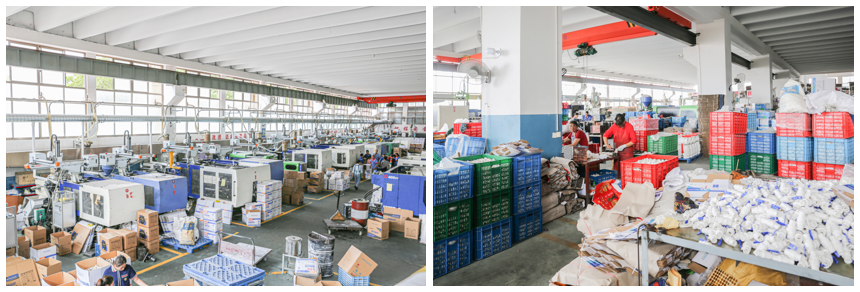

Our factory is located in Zhejiang, China. We are a manufacturer specializing in the production and export of plastic valve and pipe fittings. In addition, we have also opened a production workshop for agricultural irrigation products. Welcome to visit our factory!
