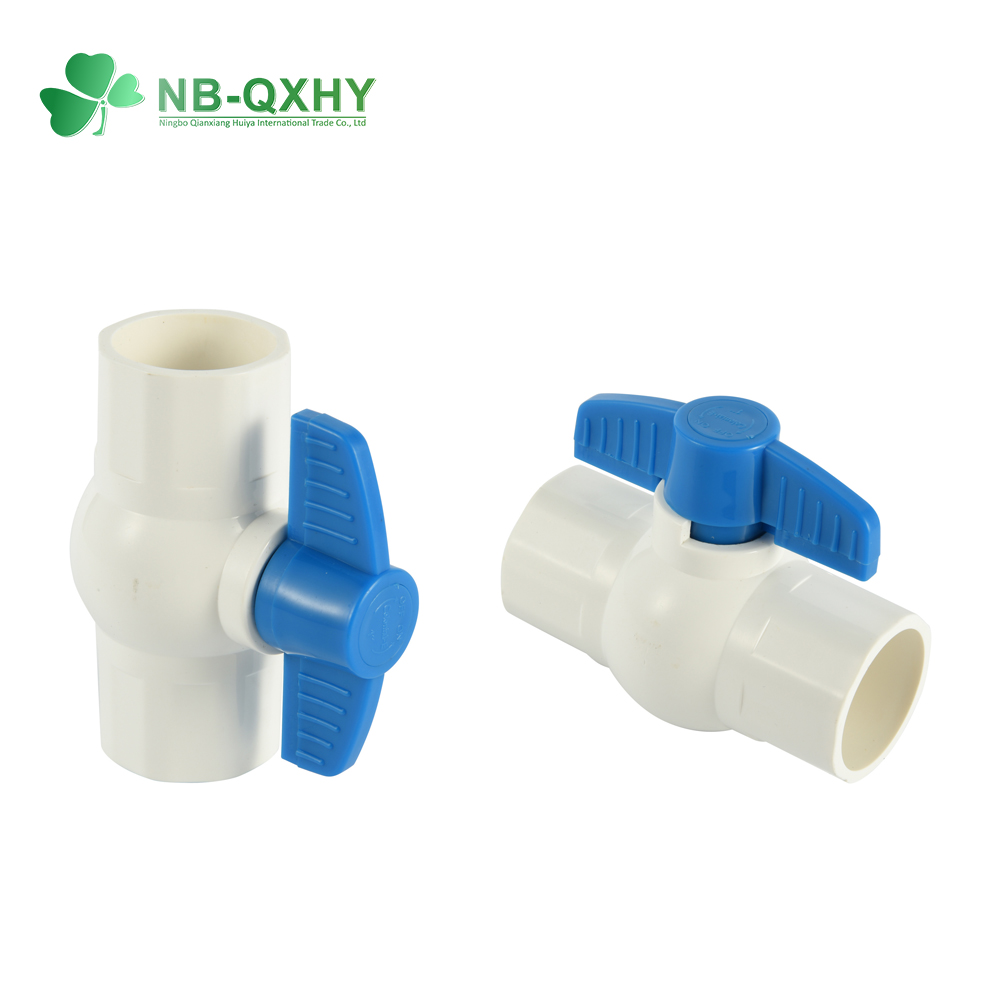

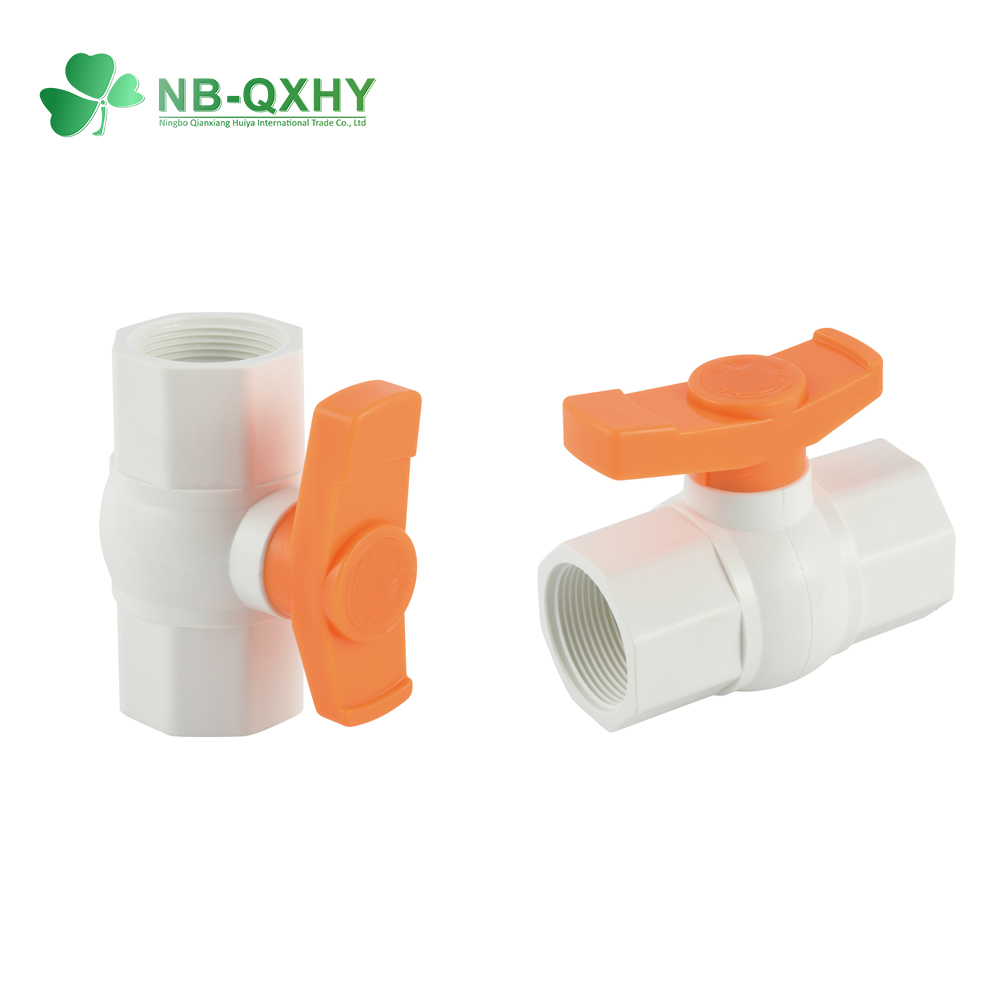

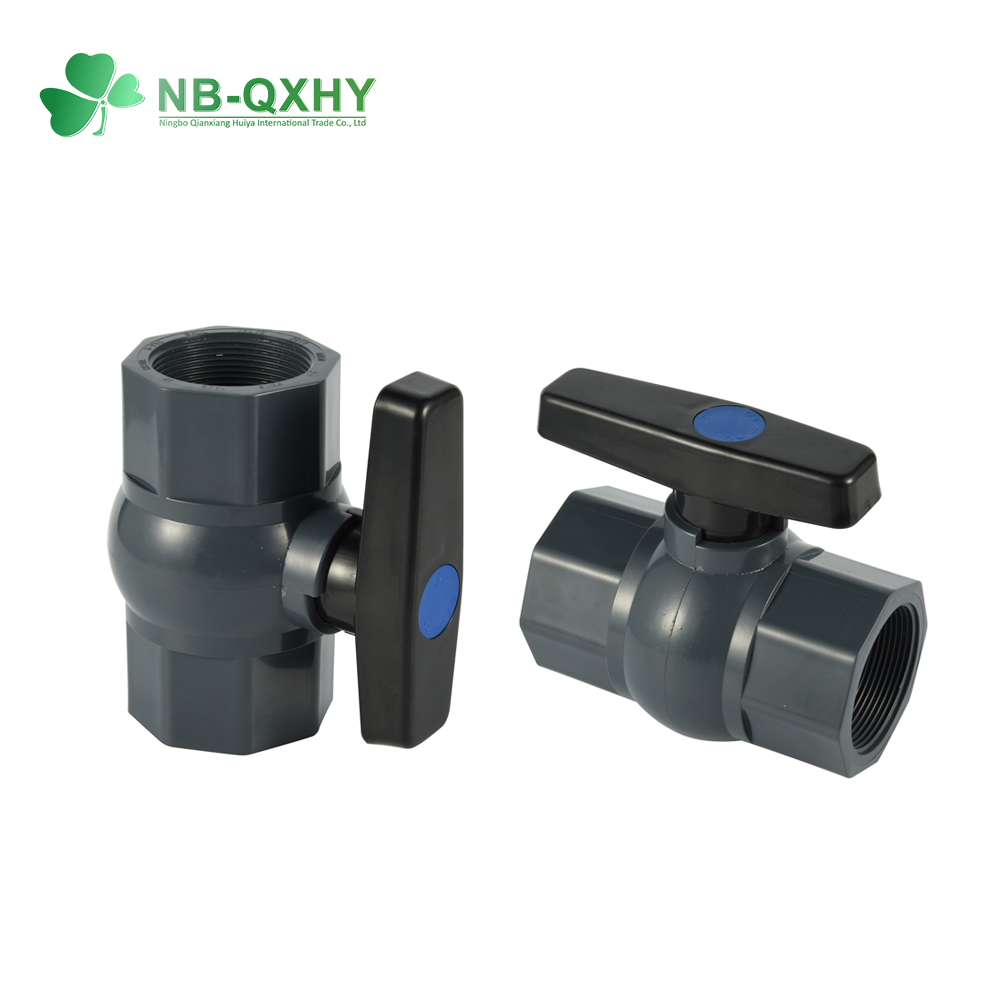

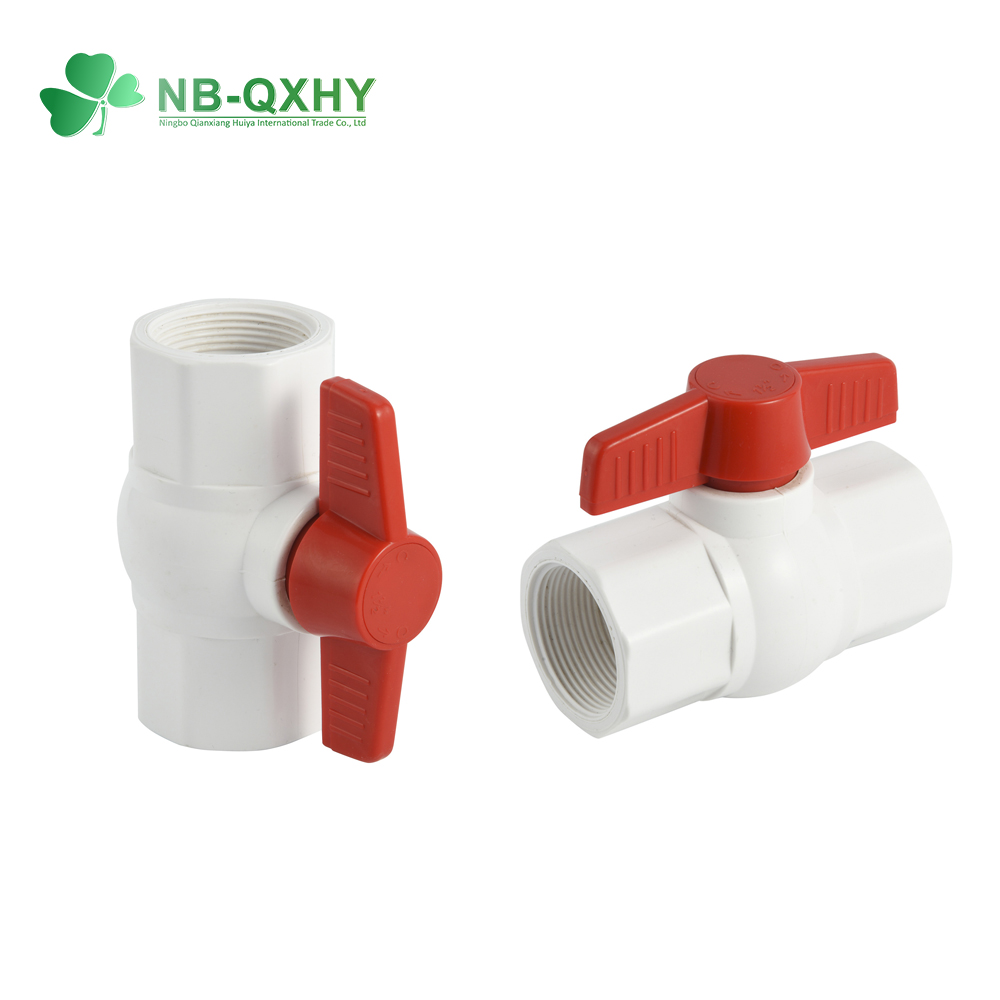

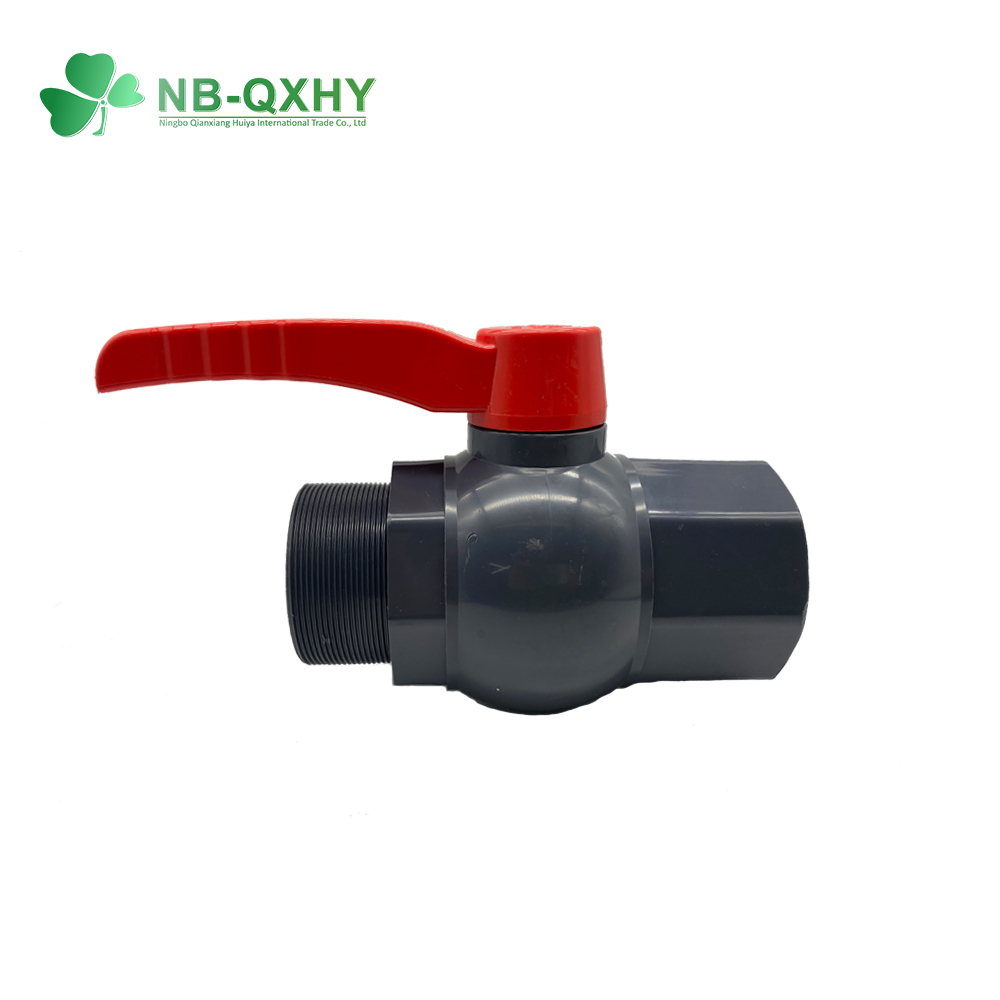

Octagonal Ball Valve

Octagonal Ball Valve

Media: Water

Material: PVC, Plastic

Connection Form: Socket & Threaded

Driving Mode: Manual

Pressure: Medium Pressure

Size: 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4"


Our octagonal ball valve is made of new and high-quality materials, and its products are more resistant to corrosion during use, and can be effectively used in the chemical industry. The inside of the ball valve is very smooth, with low frictional resistance and good airtightness.



PRODUCT DESCRIPTION

1. Product Information

Product Name Octagonal Ball Valve   Color Many Colors Available for Choice
Main Material UPVC   Main Market Southeast Asia, The Middle East, Africa
Size 1/2''-4''   Packing Carton, Polybag, Color Box, or Customized
Power Manual   Application Swimming Pool , Construction Project, Agricultural Irrigation
End Connection Socket/Threaded   Port    Ningbo/Shanghai
Customized Support OEM, ODM   Lead Time  25-35 Days
Standard CNS/JIS/DIN/BS/ANSI/NPT/BSPT   Sample Free
Certificate ISO9001,SGS, GMC, CNAS   Logo Printed or Customized



2. Product Parameters

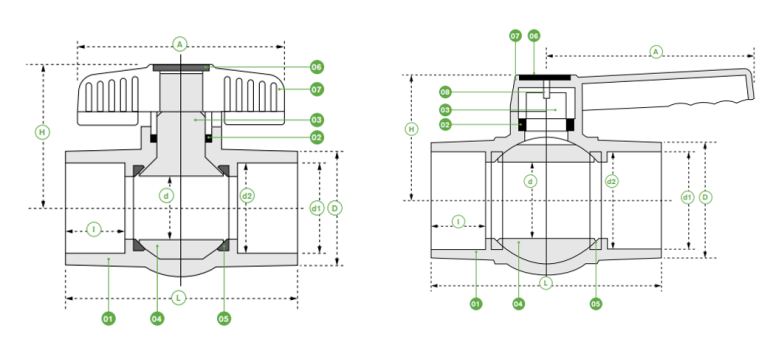

NO. PART MATERIAL QTY
1 BODY UPVC, CPVC 1
2 STEM O-RING EPDM,FPM (NBR) 1
3 STEM     UPVC, CPVC 1
4 BALL UPVC, CPVC 1
5 SEAT SEAL TPE,TPV,TPO 2
6 CAP PVC, ABS     1
7 HANDLE PVC, ABS 1
8 SCREW SS304,STEEL 1



3. Product Size (Unit: mm)

Model DN 15 20 25 32 40 50 65 80 100
SIZE 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
QX02 thd./in WEIGHT(g) 61 88 140 248 315 525 982 1460 2720
NPT 14 14 11.5 11.5 11.5 11.5 8 8 8
BSPT 14 14 11 11 11 11 11 11 11
JIS l 20 23 25 27 31 34 45 50 55
d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7
d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98
ANSI l 20 23 25 27 31 34 45 50 55
d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76
d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07
DIN l 20 23 25 27 31 34 45 50 55
d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4
d2 20 25 32 40 50 63 75 90 110
d 15 19 24 30 34 45 55 70 85
H 37 55 66 73 81 91 99 121 134
A 68 80 94 100 110 136 170 210 236
L 77 91 103 111 123 146 178 210 255
D 30 35.5 43 52 62 75 91 106 130

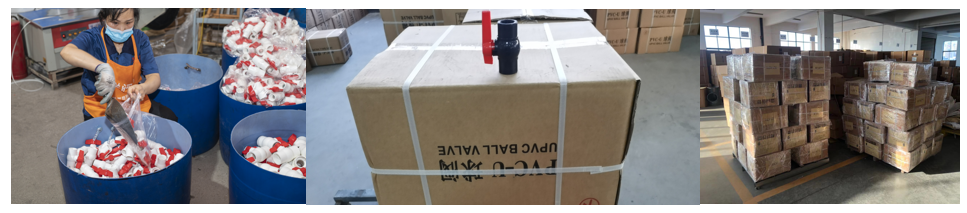

4. Product Packaging

All our products are packed in high-quality kraft cartons. Some customers need customized color boxes, and we will also carefully package them in accordance with customer requirements. Regardless of the quality or the service, we are adhering to the principle of perfection to do things, so please don't worry that your order will be damaged in transit.
