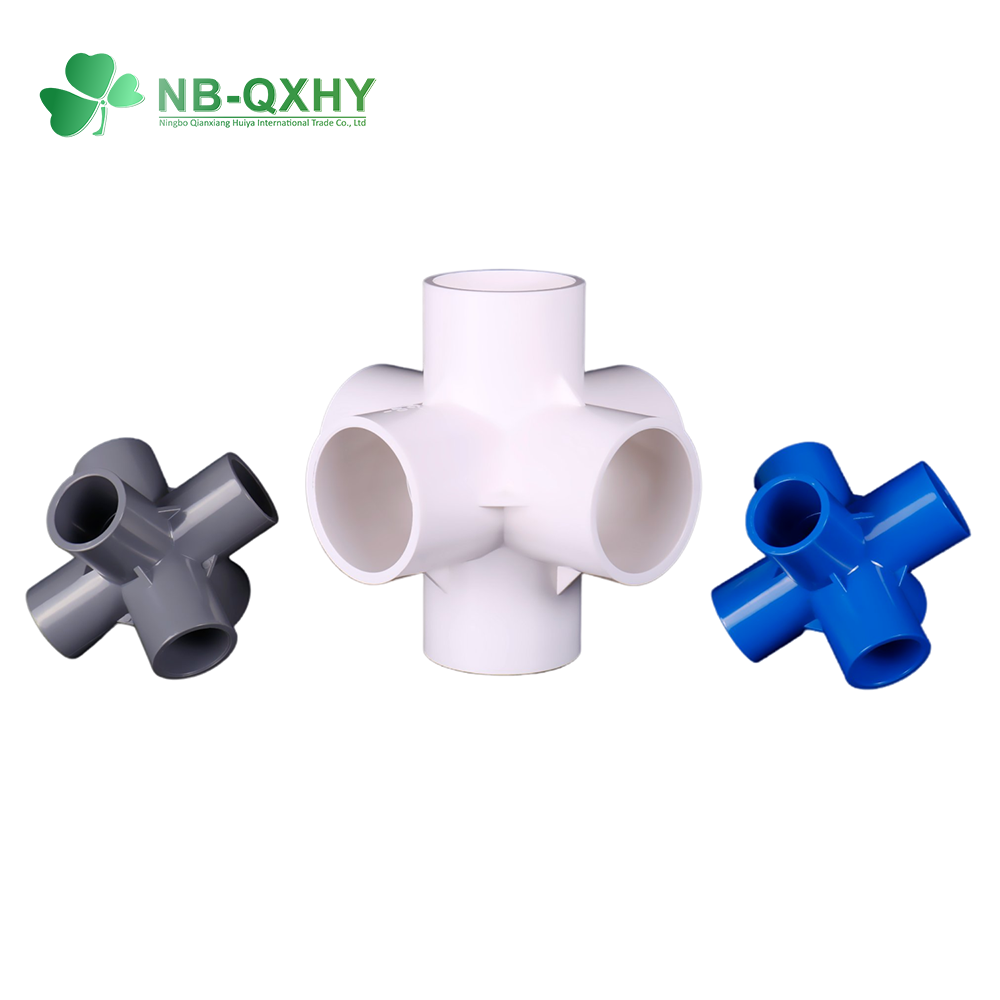

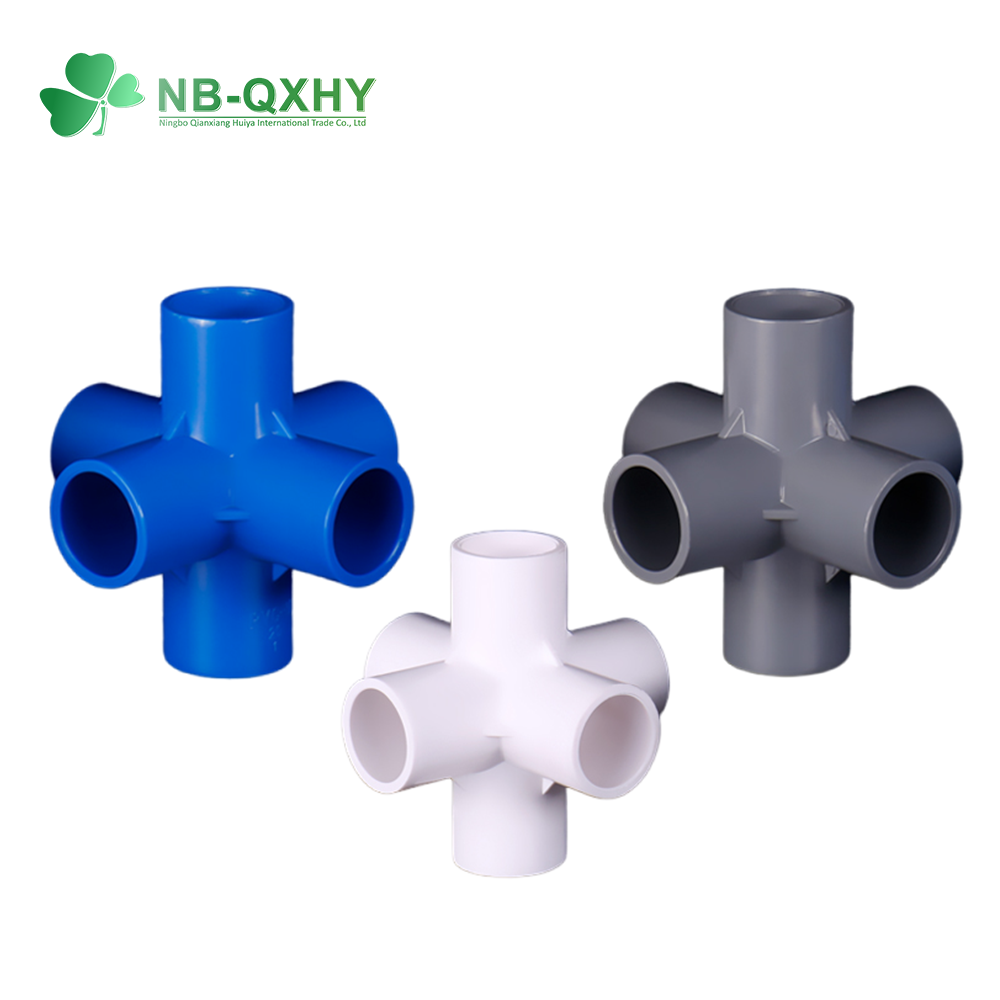

Schedule 40 Three Dimensional Six Way Connector
Schedule 40 Three Dimensional Six Way Connector

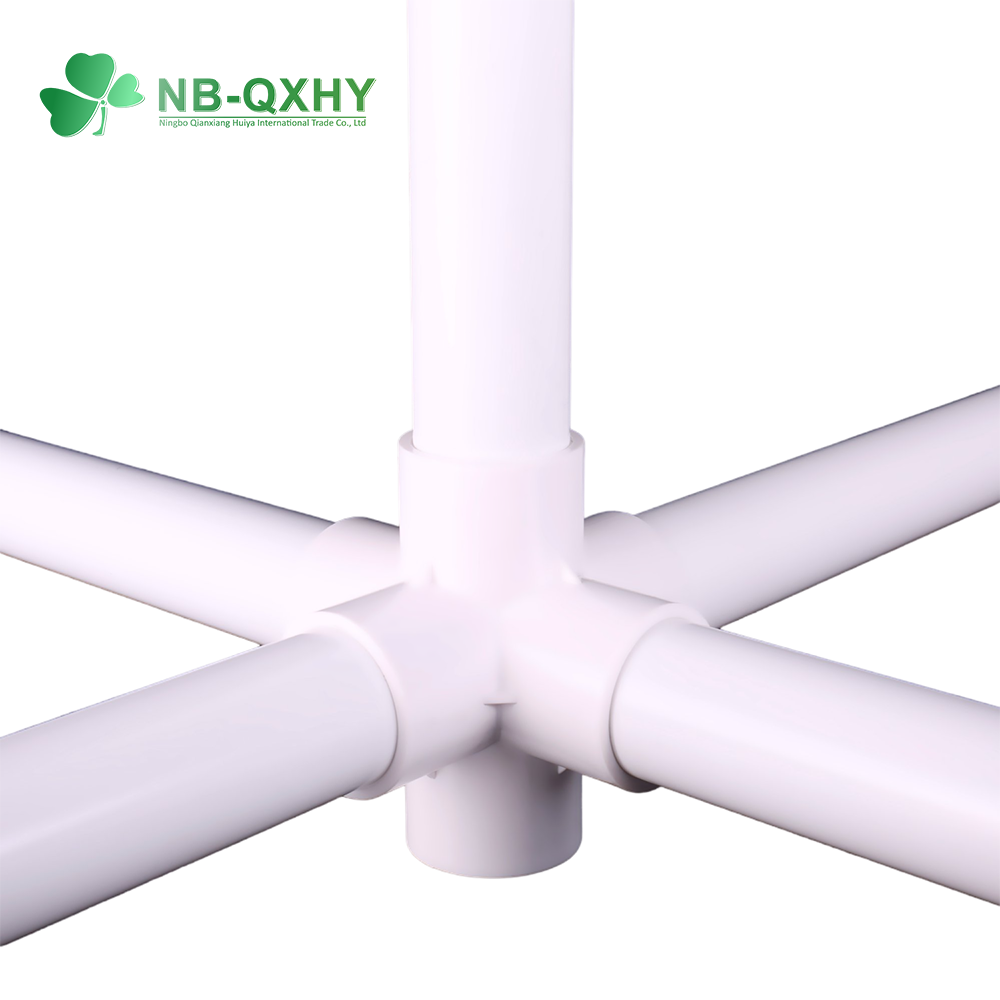

Schedule 40 three dimensional six way connector is made of UPVC, which has the characteristics of corrosion resistance, high-temperature resistance, high-pressure resistance, and UV protection. Therefore, its application range is very wide. For example civil drainage and sewage systems, industrial wastewater treatment systems, agricultural irrigation pipelines, marine aquaculture projects, swimming pools, hot spring pipelines, etc.
PRODUCT DESCRIPTION
1. Product Information
| Product Name | Schedule 40 Three Dimensional Six Way Connector | Color | White, Gray, Blue, or Customized | |
| Main Material | PVC, UPVC | Wall Thickness | Sch40 | |
| Inner Diameter | 20mm, 25mm, 32mm, 40mm, 50mm | Packing | Standard Export Packaging or as Your Request | |
| Main Market | North America, South America | Use | Drain Pipe, Water Supply Pipe | |
| Connection | Socket | Origin | Ningbo, Zhejiang, China | |
| Customized Support | OEM, ODM | Port | Ningbo/Shanghai | |
| Standard | ANSI | Lead Time | 25-50 Days | |
| Certificate | CE, ISO | Sample | Free |
| Inner Diameter | Thickness | Height | Depth | Weight | QTY |
| (mm) | (mm) | (mm) | (mm) | (mm) | (PCS/box) |
| 20 | 2.4 | 72 | 22 | 42 | 240 |
| 25 | 2.6 | 81 | 26 | 58 | 210 |
| 32 | 3 | 90 | 26 | 91 | 120 |
| 40 | 3.2 | 111 | 35 | 146 | 60 |
| 50 | 3.5 | 121 | 35 | 203 | 60 |
2. PVC SCH40 Fitting Size
| Name | Size |
| Coupling | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 3”, 4” |
| End Cap | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 3”, 4” |
| Tee | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 3”, 4” |
| Male Adapter | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 3”, 4” |
| Female Adapter | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 3”, 4” |
| 90Deg Elbow | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 3”, 4” |
| 45Deg Elbow | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 3”, 4” |
| Female Elbow | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 3”, 4” |
| Reducing Tee Socket | 3/4”x1/2”, 1×1/2”,1×3/4”, 1-1/4”x3/4”, 1-1/4”x1”,1-1/2”x1”,1-1/2”x11/4”,2”x1-1/4”,2”x1-1/2”,2-1/2”x1-1/2”,2-1/2”x2”,3”x2” 4”x2-1/2”,4”x3” |
| Reducing Coupling | 3/4”x1/2”, 1×1/2”,1×3/4”, 11/4”x3/4”, 11/4”x1”,11/2”x1”, 11/2”x11/4”,2”x11/4”,2”x11/2”,21/2”x11/2”,21/2”x2”,3”x2” 4”x21/2”,4”x3” |
| Reducing Bushing | 3/4″×1/2″, 1″×1/2″,1″×3/4″,1-1/4″×1″, 1-1/2″x3/4″, 1-1/2″×1″,1-1/2″×1-1/4″,2″x3/4″,2″x1″, 2″x1-1/4″, 2″×1-1/2″,2″x4″,3″x2″,3″x4″, 6″x4″ |
| Union | 1/2”, 3/4”, 1”, 11/4”, 11/2”, 2”, 3”, 4” |
| Tee with Brass | 1/2” |
| Elbow with Brass | 1/2”, 3/4” |
| Coupling with Copper Brass | 1/2”, 3/4” |
| Male and Female Tank Back Nut | 1/2”, 3/4”, 1”, 11/4”, 11/2”, 2” |
| Pipe Clip | 1/2”, 3/4”, 1”, 11/4”, 11/2”, 2”, 3”, 4” |
| Compression Coupling | 1/2”, 3/4”, 1”, 11/4”, 11/2”, 2”, 3”, 4” |
| Reducing Female Tee | 3/4″×1/2″, 1″×1/2″, 1″×3/4″ |
| Reducing Female Elbow | 3/4″×1/2″, 1″×1/2″, 1″×3/4″ |
| Reducing Bushing Thread | 3/4″×1/2″, 1″x1/2″, 1″x3/4″ |
| Male Plug | 1/2”, 3/4”, 1”, 11/4”, 11/2”, 2” |
| Female Tee | 1/2”, 3/4”, 1” |
3. PVC SCH40 Fitting Packaging
All our PVC SCH40 fittings will be sealed in clear polybag and then packed in sturdy and reliable cartons. For packaging, we can provide customized services, such as color box or use packaging materials according to your requirements. Also, before shipping, I will take detailed packaging photos, product photos for your confirmation.
4. Product Application
Our SCH40 pipe fittings are used in a wide range of applications, such as construction, domestic water, agricultural irrigation, industrial field, etc.
5. Our Certificate
6. Our Factory
We are a professional plastic valve and pipe fittings supplier. our company mainly produces various PVC ball valves, pipes, and fittings for 15 years. PVC SCH40 pipe fitting is a member of our product family, we welcome you to contact us for more detailed product information and look forward to a chance to cooperate with you.
