Irrigation Union Ball Valve
Irrigation Union Ball Valve
Media: Water
Material: UPVC
Connection Form: F/M or F/F Threaded
Driving Mode: Manual
Nominal Pressure: PN10/150PSI
Size: 1/2”-4”
Our irrigation union ball valve has two connection forms: F/M or F/F Threaded. It is mainly used in the agricultural irrigation field.
PRODUCT DESCRIPTION
1. Introduction of Irrigation Union Ball Valve
Water resources are scarce in many areas, and how to save water resources during irrigation is particularly important. Our irrigation union ball valve is made of UPVC and the rubber ring is made of EPDM. All raw materials used are 100% new materials, and the quality is strictly controlled during the production process. Applying it to water-saving irrigation projects will minimize the waste of water resources.
| Product name | Irrigation Ball Valve | Color | Black | |
| Main Material | UPVC | Main Market | Southeast Asia, The Middle East, Africa, | |
| Size | 1/2”-4” | Packing | Carton, Polybag, Color Box, or Customized | |
| Power | Manual | Application | Agricultural Irrigation | |
| End Connection | Threaded | Port | Ningbo/Shanghai | |
| Customized support | OEM, ODM | Lead Time | 25-35 Days | |
| Standard | CNS/JIS/DIN/BS/ANSI | Sample | Free | |
| Certificate | ISO9001,SGS, GMC, CNAS | Logo | Printed or Customized |
2. Structure of Irrigation Union Ball Valve

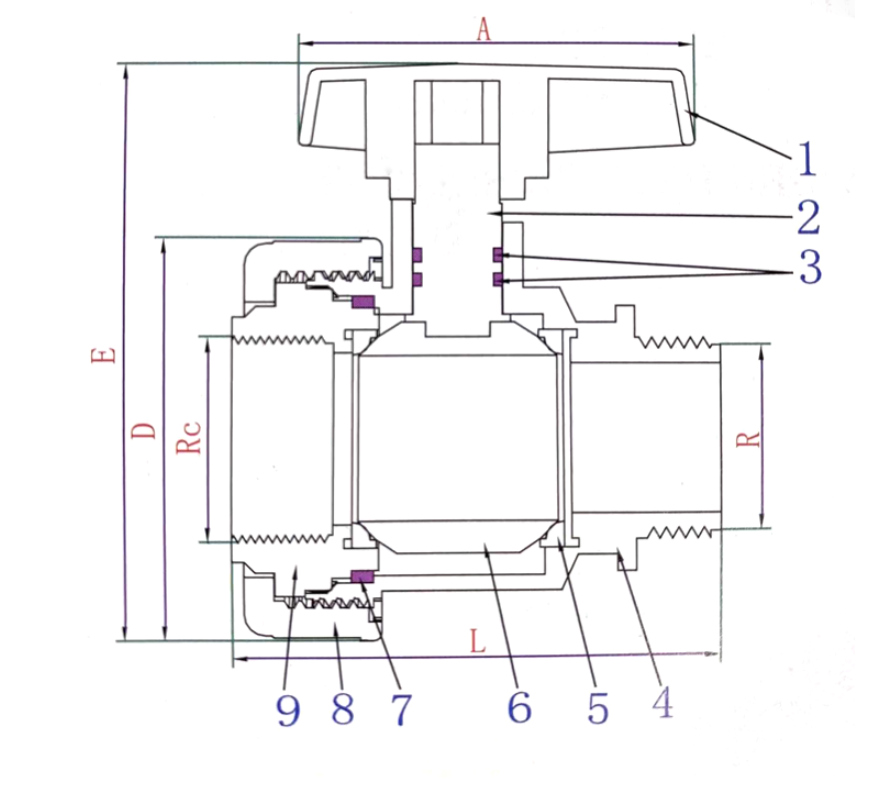

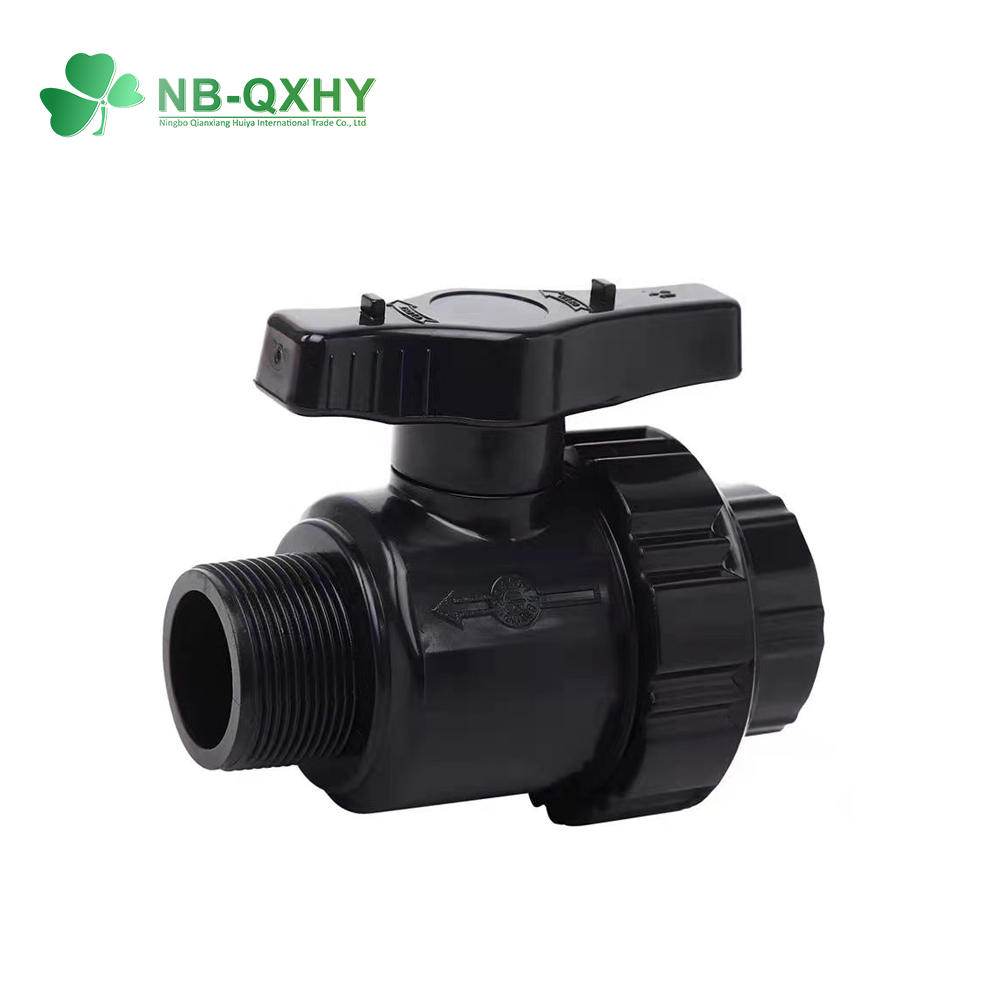

a. Irrigation Union Ball Valve F/M
| NO. | PART | MATERIAL | QTY |
| 1 | HANDLE | PVC | 1 |
| 2 | STEM | UPVC, CPVC | 1 |
| 3 | STEM O-RING | EPDM, FPM (NBR) | 2 |
| 4 | BODY | UPVC, CPVC | 1 |
| 5 | SEAT SEAL | TPE, TPV, TPO | 2 |
| 6 | BALL | UPVC, CPVC | 1 |
| 7 | CARRIER O-RING | EPDM, FPM (NBR) | 1 |
| 8 | UNION NUT | UPVC, CPVC | 1 |
| 9 | SEAL CARRIER | UPVC, CPVC | 1 |

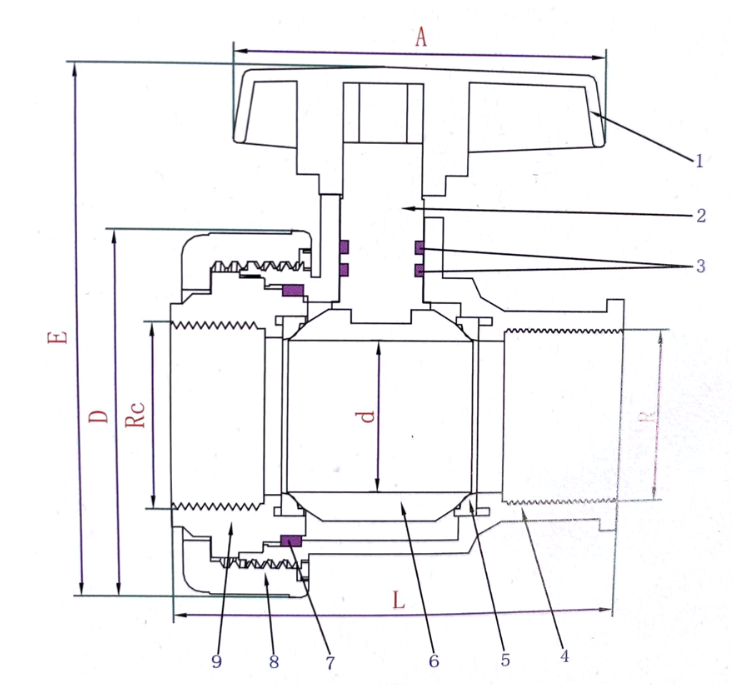

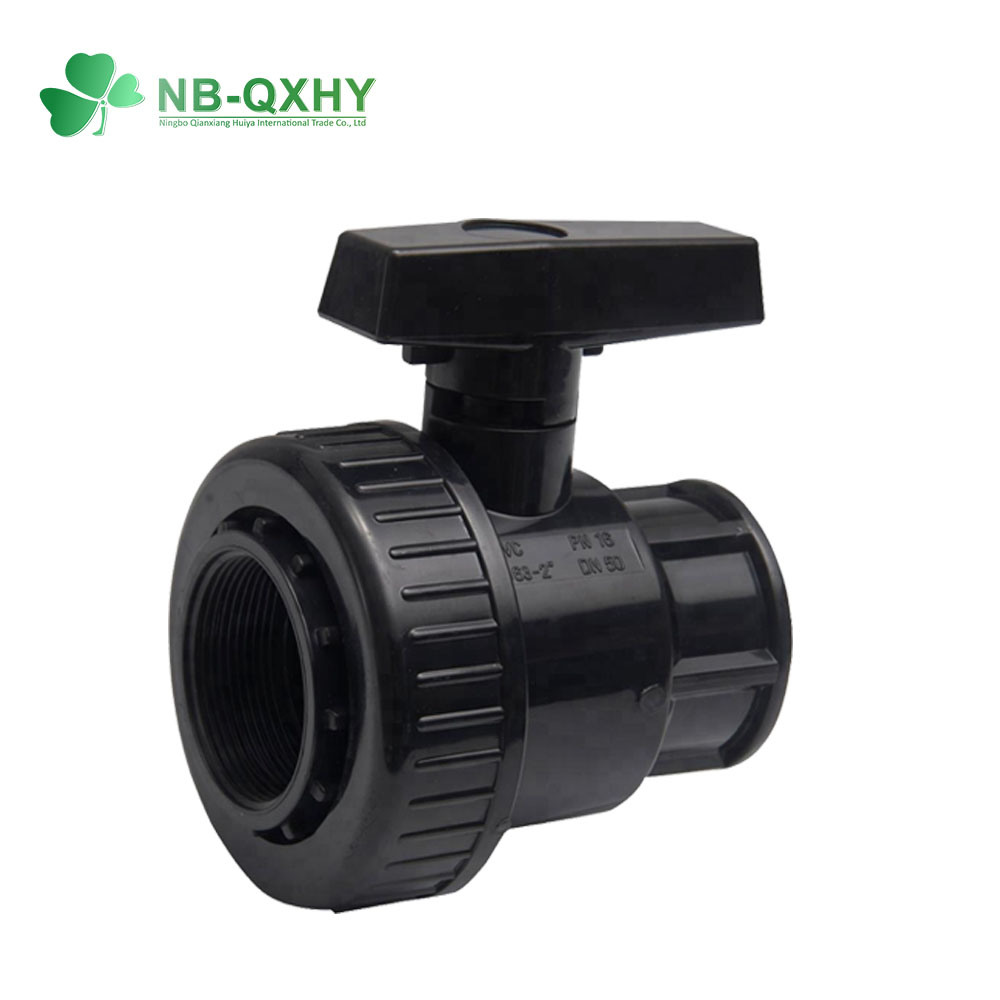

b. Irrigation Union Ball Valve F/F
| NO. | PART | MATERIAL | QTY |
| 1 | HANDLE | PVC | 1 |
| 2 | STEM | UPVC, CPVC | 1 |
| 3 | STEM O-RING | EPDM, FPM (NBR) | 2 |
| 4 | BODY | UPVC, CPVC | 1 |
| 5 | SEAT SEAL | TPE, TPV, TPO | 2 |
| 6 | BALL | UPVC, CPVC | 1 |
| 7 | CARRIER O-RING | EPDM, FPM (NBR) | 1 |
| 8 | UNION NUT | UPVC, CPVC | 1 |
| 9 | SEAL CARRIER | UPVC, CPVC | 1 |
3. Dimension of Irrigation Union Ball Valve
| ITEM | IRRIGATION UNION BALL VALVE F/M | ||||||||
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| SIZE | 1/2” | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ |
| d | 15.2 | 19.7 | 24.9 | 29.8 | 38.3 | 48.5 | 59 | 71.2 | 97.4 |
| C | 54.4 | 59.6 | 68 | 79.1 | 93.9 | 116 | 139 | 167.2 | 203.3 |
| E | 75.2 | 87.3 | 100.3 | 115.1 | 134.2 | 160.9 | 189.3 | 219 | 266.8 |
| A | 60.2 | 66.9 | 74.8 | 84.5 | 94.3 | 109.2 | 125 | 139 | 158.7 |
| L | 71.2 | 80.8 | 92 | 107.5 | 116.1 | 143.7 | 168.5 | 204 | 250 |
| ITEM | IRRIGATION UNION BALL VALVE F/F | ||||||
| DN | 20 | 25 | 40 | 50 | 65 | 80 | 100 |
| SIZE | 3/4″ | 1″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ |
| d | 25.4 | 38.8 | 48.8 | 59 | 70.9 | 93.8 | |
| C | 68.7 | 94 | 115.7 | 139 | 167 | 210.2 | |
| E | 100.3 | 134.4 | 160.1 | 189.3 | 220.6 | 270 | |
| A | 74.7 | 94.4 | 109.1 | 125 | 139 | 158 | |
| L | 95.7 | 114.6 | 131.7 | 164.4 | 186 | 226.4 | |

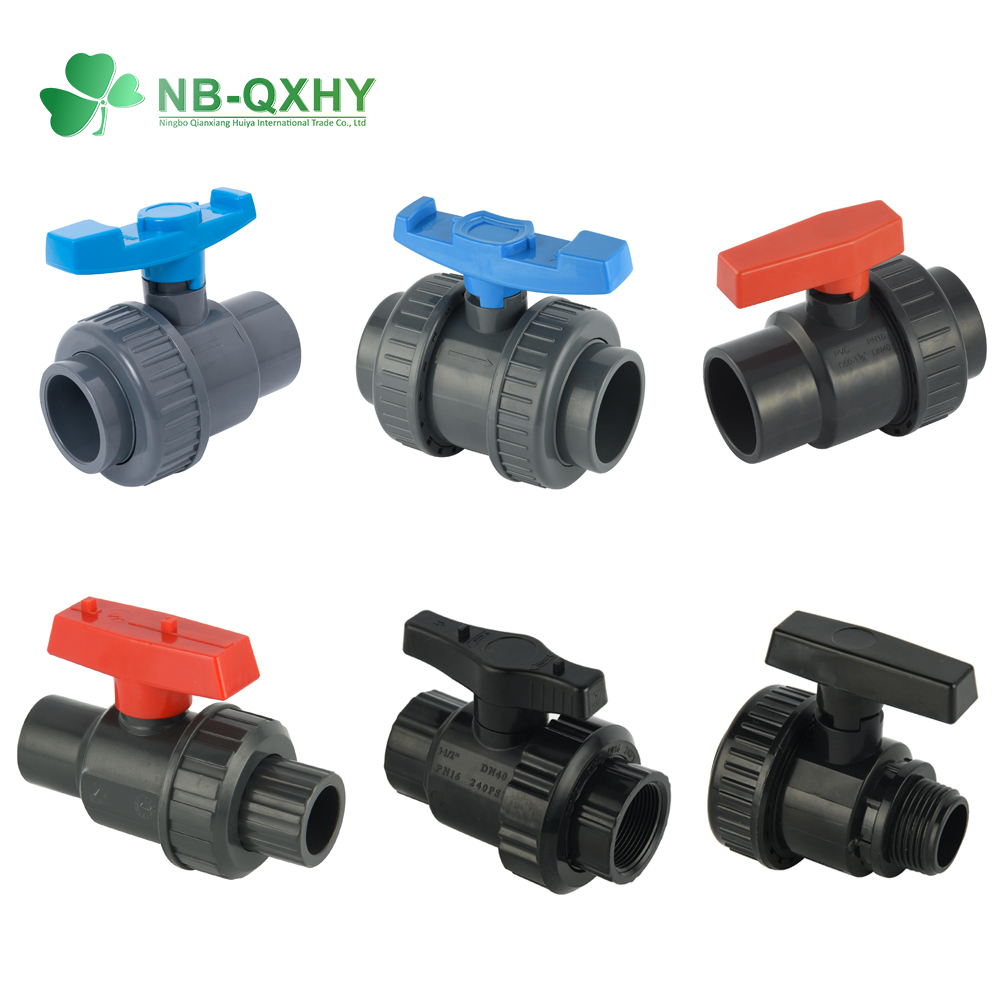

PS: This type of union ball valve is a valve specially used for irrigation, if you want to know about other types of union ball valves, please click here.
